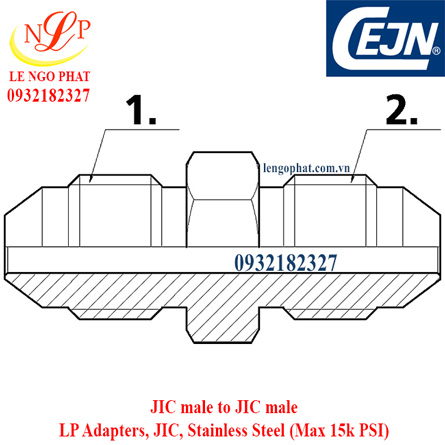

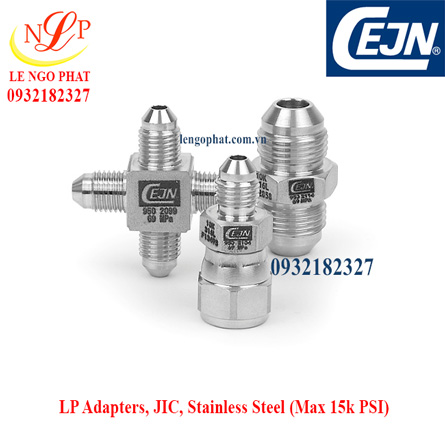

LP Adapters, JIC, Stainless Steel

LP (Max 15k PSI)Adapters

JIC standard adapters with 37° flare tube connection for JIC 04, 06, 08 and 16. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: JIC male to JIC male

Model: 199502109, 199502110, 199502111, 199502112, 199502113, 199502114, 199502115

LP Adapters, JIC, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502109	JIC male to JIC male	18 Nm	JIC 04	JIC 04	69.0 MPa
199502110	JIC male to JIC male	conn.1: 18 conn.2: 30 Nm	JIC 04	JIC 06	69.0 MPa
199502111	JIC male to JIC male	conn.1: 18 conn.2: 64 Nm	JIC 04	JIC 08	69.0 MPa
199502112	JIC male to JIC male	30 Nm	JIC 06	JIC 06	69.0 MPa
199502113	JIC male to JIC male	conn.1: 30 conn.2: 64 Nm	JIC 06	JIC 08	69.0 MPa
199502114	JIC male to JIC male	64 Nm	JIC 08	JIC 08	69.0 MPa
199502115	JIC male to JIC male	conn.1: 169 conn.2: 64 Nm	JIC 16	JIC 08	69.0 MPa
