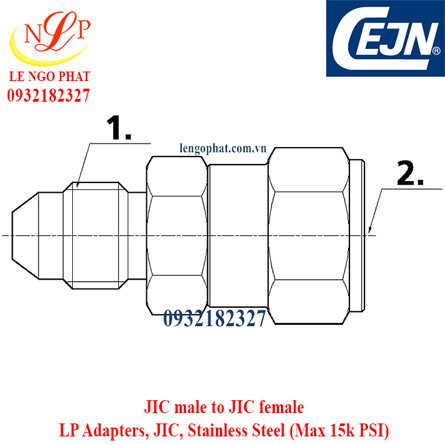

LP Adapters, JIC male to JIC female Stainless Steel

LP Adapters, JIC male to JIC female Stainless Steel

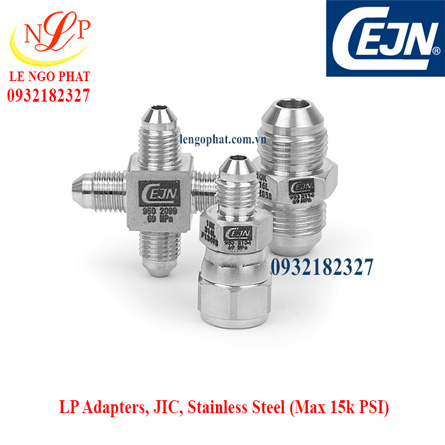

LP Adapters, JIC, Stainless Steel

LP (Max 15k PSI)Adapters

JIC standard adapters with 37° flare tube connection for JIC 04, 06, 08 and 16. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: JIC male to JIC female

Model: 199502103, 199502104, 199502105, 199502106,199502107, 199502108

LP Adapters, JIC, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502103	JIC male to JIC female	18 Nm	JIC 04	JIC 04	69.0 MPa
199502104	JIC male to JIC female	conn.1: 18 conn.2: 30 Nm	JIC 04	JIC 06	69.0 MPa
199502105	JIC male to JIC female	conn.1: 18 conn.2: 64 Nm	JIC 04	JIC 08	69.0 MPa
199502106	JIC male to JIC female	conn.1: 30 conn.2: 18 Nm	JIC 06	JIC 04	69.0 MPa
199502107	JIC male to JIC female	conn.1: 30 conn.2: 30 Nm	JIC 06	JIC 06	69.0 MPa
199502108	JIC male to JIC female	conn.1: 30 conn.2: 64 Nm	JIC 06	JIC 08	69.0 MPa
