LP Adapters JIC male crosses and Ts Stainless Steel

LP Adapters, JIC, Stainless Steel

LP (Max 15k PSI)Adapters

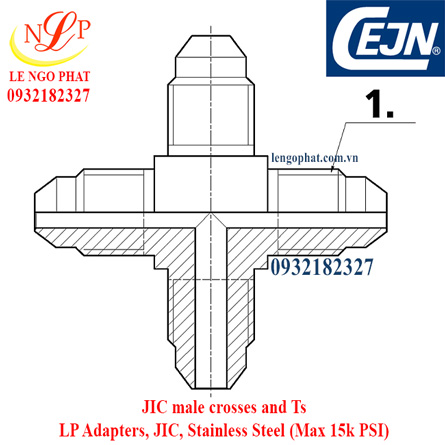

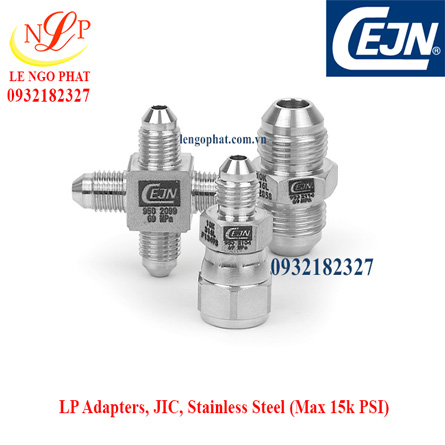

JIC standard adapters with 37° flare tube connection for JIC 04, 06, 08 and 16. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: JIC male crosses and Ts

Model: 199502099, 199502100, 199502101, 199502102

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest
LP Adapters, JIC, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502099 JIC male crosses and Ts 18 Nm JIC 04 - 69.0 MPa
199502100 JIC male crosses and Ts 30 Nm JIC 06 - 69.0 MPa
199502101 JIC male crosses and Ts 18 Nm JIC 04 - 69.0 MPa
199502102 JIC male crosses and Ts 30 Nm JIC 06 - 69.0 MPa
199502103 JIC male to JIC female 18 Nm JIC 04 JIC 04 69.0 MPa
199502104 JIC male to JIC female conn.1: 18 conn.2: 30 Nm JIC 04 JIC 06 69.0 MPa
199502105 JIC male to JIC female conn.1: 18 conn.2: 64 Nm JIC 04 JIC 08 69.0 MPa
199502106 JIC male to JIC female conn.1: 30 conn.2: 18 Nm JIC 06 JIC 04 69.0 MPa
199502107 JIC male to JIC female conn.1: 30 conn.2: 30 Nm JIC 06 JIC 06 69.0 MPa
199502108 JIC male to JIC female conn.1: 30 conn.2: 64 Nm JIC 06 JIC 08 69.0 MPa
199502109 JIC male to JIC male 18 Nm JIC 04 JIC 04 69.0 MPa
199502110 JIC male to JIC male conn.1: 18 conn.2: 30 Nm JIC 04 JIC 06 69.0 MPa
199502111 JIC male to JIC male conn.1: 18 conn.2: 64 Nm JIC 04 JIC 08 69.0 MPa
199502112 JIC male to JIC male 30 Nm JIC 06 JIC 06 69.0 MPa
199502113 JIC male to JIC male conn.1: 30 conn.2: 64 Nm JIC 06 JIC 08 69.0 MPa
199502114 JIC male to JIC male 64 Nm JIC 08 JIC 08 69.0 MPa
199502115 JIC male to JIC male conn.1: 169 conn.2: 64 Nm JIC 16 JIC 08 69.0 MPa
LP Adapters, JIC, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502099 JIC male crosses and Ts 18 Nm JIC 04 - 69.0 MPa
199502100 JIC male crosses and Ts 30 Nm JIC 06 - 69.0 MPa
199502101 JIC male crosses and Ts 18 Nm JIC 04 - 69.0 MPa
199502102 JIC male crosses and Ts 30 Nm JIC 06 - 69.0 MPa
199502103 JIC male to JIC female 18 Nm JIC 04 JIC 04 69.0 MPa
199502104 JIC male to JIC female conn.1: 18 conn.2: 30 Nm JIC 04 JIC 06 69.0 MPa
199502105 JIC male to JIC female conn.1: 18 conn.2: 64 Nm JIC 04 JIC 08 69.0 MPa
199502106 JIC male to JIC female conn.1: 30 conn.2: 18 Nm JIC 06 JIC 04 69.0 MPa
199502107 JIC male to JIC female conn.1: 30 conn.2: 30 Nm JIC 06 JIC 06 69.0 MPa
199502108 JIC male to JIC female conn.1: 30 conn.2: 64 Nm JIC 06 JIC 08 69.0 MPa
199502109 JIC male to JIC male 18 Nm JIC 04 JIC 04 69.0 MPa
199502110 JIC male to JIC male conn.1: 18 conn.2: 30 Nm JIC 04 JIC 06 69.0 MPa
199502111 JIC male to JIC male conn.1: 18 conn.2: 64 Nm JIC 04 JIC 08 69.0 MPa
199502112 JIC male to JIC male 30 Nm JIC 06 JIC 06 69.0 MPa
199502113 JIC male to JIC male conn.1: 30 conn.2: 64 Nm JIC 06 JIC 08 69.0 MPa
199502114 JIC male to JIC male 64 Nm JIC 08 JIC 08 69.0 MPa
199502115 JIC male to JIC male conn.1: 169 conn.2: 64 Nm JIC 16 JIC 08 69.0 MPa
LP Adapters, JIC, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502099 JIC male crosses and Ts 18 Nm JIC 04 - 69.0 MPa
199502100 JIC male crosses and Ts 30 Nm JIC 06 - 69.0 MPa
199502101 JIC male crosses and Ts 18 Nm JIC 04 - 69.0 MPa
199502102 JIC male crosses and Ts 30 Nm JIC 06 - 69.0 MPa
199502103 JIC male to JIC female 18 Nm JIC 04 JIC 04 69.0 MPa
199502104 JIC male to JIC female conn.1: 18 conn.2: 30 Nm JIC 04 JIC 06 69.0 MPa
199502105 JIC male to JIC female conn.1: 18 conn.2: 64 Nm JIC 04 JIC 08 69.0 MPa
199502106 JIC male to JIC female conn.1: 30 conn.2: 18 Nm JIC 06 JIC 04 69.0 MPa
199502107 JIC male to JIC female conn.1: 30 conn.2: 30 Nm JIC 06 JIC 06 69.0 MPa
199502108 JIC male to JIC female conn.1: 30 conn.2: 64 Nm JIC 06 JIC 08 69.0 MPa
199502109 JIC male to JIC male 18 Nm JIC 04 JIC 04 69.0 MPa
199502110 JIC male to JIC male conn.1: 18 conn.2: 30 Nm JIC 04 JIC 06 69.0 MPa
199502111 JIC male to JIC male conn.1: 18 conn.2: 64 Nm JIC 04 JIC 08 69.0 MPa
199502112 JIC male to JIC male 30 Nm JIC 06 JIC 06 69.0 MPa
199502113 JIC male to JIC male conn.1: 30 conn.2: 64 Nm JIC 06 JIC 08 69.0 MPa
199502114 JIC male to JIC male 64 Nm JIC 08 JIC 08 69.0 MPa
199502115 JIC male to JIC male conn.1: 169 conn.2: 64 Nm JIC 16 JIC 08 69.0 MPa
