Ultra High-Pressure Hydraulics Porting Blocks

Ultra High-Pressure Hydraulics Porting Blocks

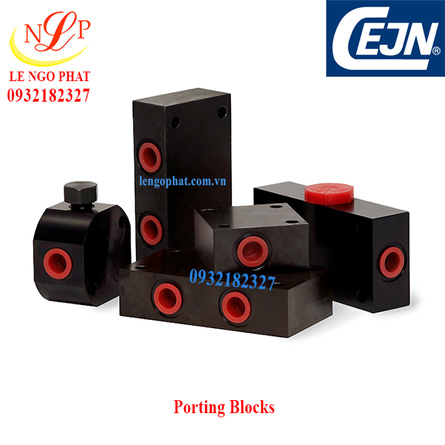

Porting Blocks

CEJN’s porting blocks make it possible to utilise/connect several hydraulic lines from a single pump to numerous tools as well as the possibility of connecting a pressure gauge. The blocks are available in different sizes and designs with a varying number of ports.

MaterialBlack zinc-plated steel unless specified in description.Nominal flow diameter5 mm (0.2")

Giá: 0932182327

Mã sản phẩm: 2-way L-block, 3-way distribution block

Model: 199501684, 199501785

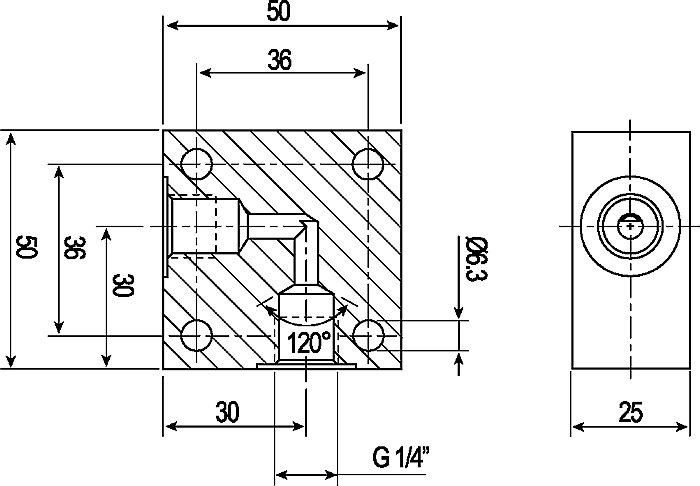

Category	2-way L-block
Connection	G 1/4"
Description	G 1/4" female thread. Seal with 120° sealing cone or rubber metal seal (max working pressure with rubber metal seal 100 MPa).
Max working pressure	300.0 MPa

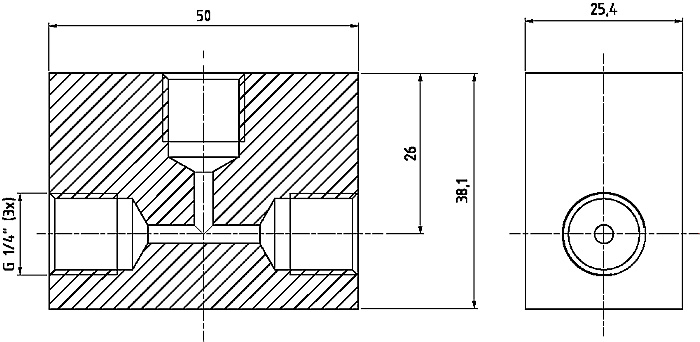

Category	3-way distribution block
Connection	G 1/4"
Description	316L stainless steel. G 1/4" female thread. Seal with 120° sealing cone.
Max working pressure	300.0 MPa

Category	2-way L-block
Connection	G 1/4"
Description	G 1/4" female thread. Seal with 120° sealing cone or rubber metal seal (max working pressure with rubber metal seal 100 MPa).
Max working pressure	300.0 MPa

Category	3-way distribution block
Connection	G 1/4"
Description	316L stainless steel. G 1/4" female thread. Seal with 120° sealing cone.
Max working pressure	300.0 MPa

Category	2-way L-block
Connection	G 1/4"
Description	G 1/4" female thread. Seal with 120° sealing cone or rubber metal seal (max working pressure with rubber metal seal 100 MPa).
Max working pressure	300.0 MPa

Category	3-way distribution block
Connection	G 1/4"
Description	316L stainless steel. G 1/4" female thread. Seal with 120° sealing cone.
Max working pressure	300.0 MPa
