3-way gauge block Ultra High-Pressure Hydraulics

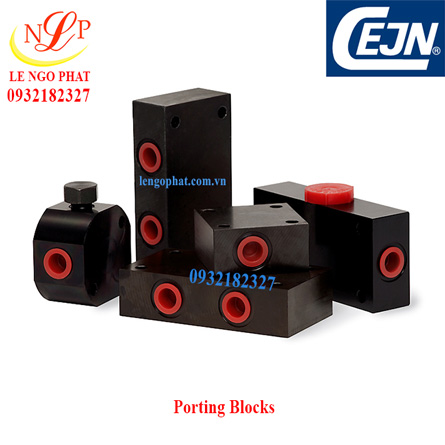

Porting Blocks
CEJN’s porting blocks make it possible to utilise/connect several hydraulic lines from a single pump to numerous tools as well as the possibility of connecting a pressure gauge. The blocks are available in different sizes and designs with a varying number of ports.
MaterialBlack zinc-plated steel unless specified in description.Nominal flow diameter5 mm (0.2")
| Category | 3-way gauge block |
| Connection | G 1/4" |

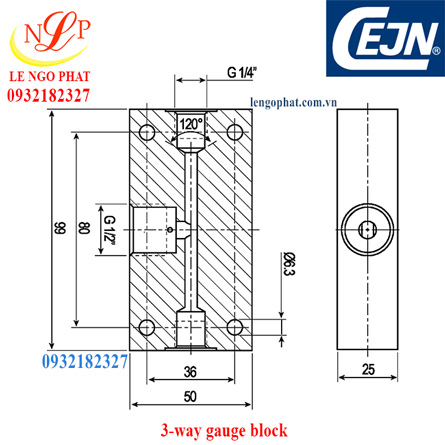

| Description | G 1/4" female thread. Seal with 120° sealing cone or rubber metal seal (max working pressure with rubber metal seal 100 MPa). Gauge connection G 1/2". Supplied with sealing washer. |
| Max working pressure | 200.0 MPa |
| Category | 3-way gauge block |
| Connection | G 1/4" |
| Description | G 1/4" female thread. Seal with 120° sealing cone or rubber metal seal (max working pressure with rubber metal seal 100 MPa). Gauge connection G 1/2". Supplied with sealing washer. |
| Max working pressure | 200.0 MPa |
| Category | 3-way gauge block |
| Connection | G 1/4" |
| Description | G 1/4" female thread. Seal with 120° sealing cone or rubber metal seal (max working pressure with rubber metal seal 100 MPa). Gauge connection G 1/2". Supplied with sealing washer. |
| Max working pressure | 200.0 MPa |
