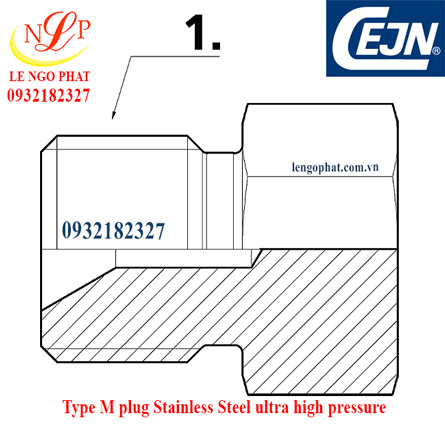

Type M plug Stainless Steel ultra high pressure
Type M Adapters, plugs and caps, Stainless Steel
HP (Over 20k to 60k PSI)Adapters
Type M adapters, plugs and caps from 9/16" 1-5/16". Standard 60° cone type sealing with UNF threads. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.
| Type M Adapters, plugs and caps, Stainless Steel (Over 20k to 60k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199502206 | Type M plug | 52 Nm | 9/16” - 18 UNF | - | 344.7 MPa |
| 199502207 | Type M plug | 81 Nm | 3/4" - 16 UNF | - | 344.7 MPa |
| 199502208 | Type M plug | 135 Nm | 1" - 12 UNF | - | 344.7 MPa |
| 199502209 | Type M plug | 203 Nm | 1-5/16" - 12 UNF | - | 206.8 MPa |
| Type M Adapters, plugs and caps, Stainless Steel (Over 20k to 60k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199502206 | Type M plug | 52 Nm | 9/16” - 18 UNF | - | 344.7 MPa |
| 199502207 | Type M plug | 81 Nm | 3/4" - 16 UNF | - | 344.7 MPa |
| 199502208 | Type M plug | 135 Nm | 1" - 12 UNF | - | 344.7 MPa |
| 199502209 | Type M plug | 203 Nm | 1-5/16" - 12 UNF | - | 206.8 MPa |
| Type M Adapters, plugs and caps, Stainless Steel (Over 20k to 60k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199502206 | Type M plug | 52 Nm | 9/16” - 18 UNF | - | 344.7 MPa |
| 199502207 | Type M plug | 81 Nm | 3/4" - 16 UNF | - | 344.7 MPa |
| 199502208 | Type M plug | 135 Nm | 1" - 12 UNF | - | 344.7 MPa |
| 199502209 | Type M plug | 203 Nm | 1-5/16" - 12 UNF | - | 206.8 MPa |
