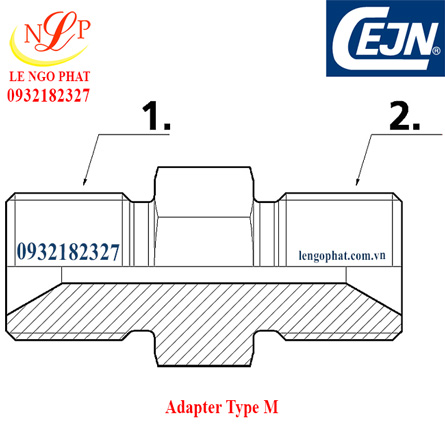

Adapter Type M Ultra High Pressure Hydraulics

Adapter Type M Ultra High Pressure Hydraulics

Type M Adapters, plugs and caps, Stainless Steel

HP (Over 20k to 60k PSI)Adapters

Type M adapters, plugs and caps from 9/16" 1-5/16". Standard 60° cone type sealing with UNF threads. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: Adapter Type M

Model: 199502148, 199502149, 199502150, 199502151, 199502152, 199502153, 199502154, 199502155, 199502156, 199502157, 199502158

Type M Adapters, plugs and caps, Stainless Steel (Over 20k to 60k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502146	Adapter Type M	conn.1: 52 conn.2: 52 Nm	9/16" - 18 UNF	9/16" - 18 UNF	344.7 MPa
199502147	Adapter Type M	conn.1: 81 conn.2: 81 Nm	3/4" - 16 UNF	3/4" - 16 UNF	344.7 MPa
199502148	Adapter Type M	conn.1: 81 conn.2: 52 Nm	3/4" - 16 UNF	9/16" - 18 UNF	344.7 MPa
199502149	Adapter Type M	conn.1: 109 conn.2: 109 Nm	7/8" - 14 UNF	7/8" - 14 UNF	344.7 MPa
199502150	Adapter Type M	conn.1: 109 conn.2: 52 Nm	7/8" - 14 UNF	9/16" - 18 UNF	344.7 MPa
199502151	Adapter Type M	conn.1: 135 conn.2: 135 Nm	1" - 12 UNF	1" - 12 UNF	344.7 MPa
199502152	Adapter Type M	conn.1: 135 conn.2: 52 Nm	1" - 12 UNF	9/16" - 18 UNF	344.7 MPa
199502153	Adapter Type M	conn.1: 135 conn.2: 81 Nm	1" - 12 UNF	3/4" - 16 UNF	344.7 MPa
199502154	Adapter Type M	conn.1: 150 conn.2: 150 Nm	1-1/8" - 12 UNF	1-1/8" - 12 UNF	344.7 MPa
199502155	Adapter Type M	conn.1: 150 conn.2: 52 Nm	1-1/8" - 12 UNF	9/16" - 18 UNF	344.7 MPa
199502156	Adapter Type M	conn.1: 150 conn.2: 109 Nm	1-1/8" - 12 UNF	7/8" - 14 UNF	344.7 MPa
199502157	Adapter Type M	conn.1: 203 conn.2: 203 Nm	1-5/16" -12 UNF	1-5/16" -12 UNF	206.8 MPa
199502158	Adapter Type M	conn.1: 203 conn.2: 135 Nm	1-5/16" -12 UNF	1" - 12 UNF	206.8 MPa
