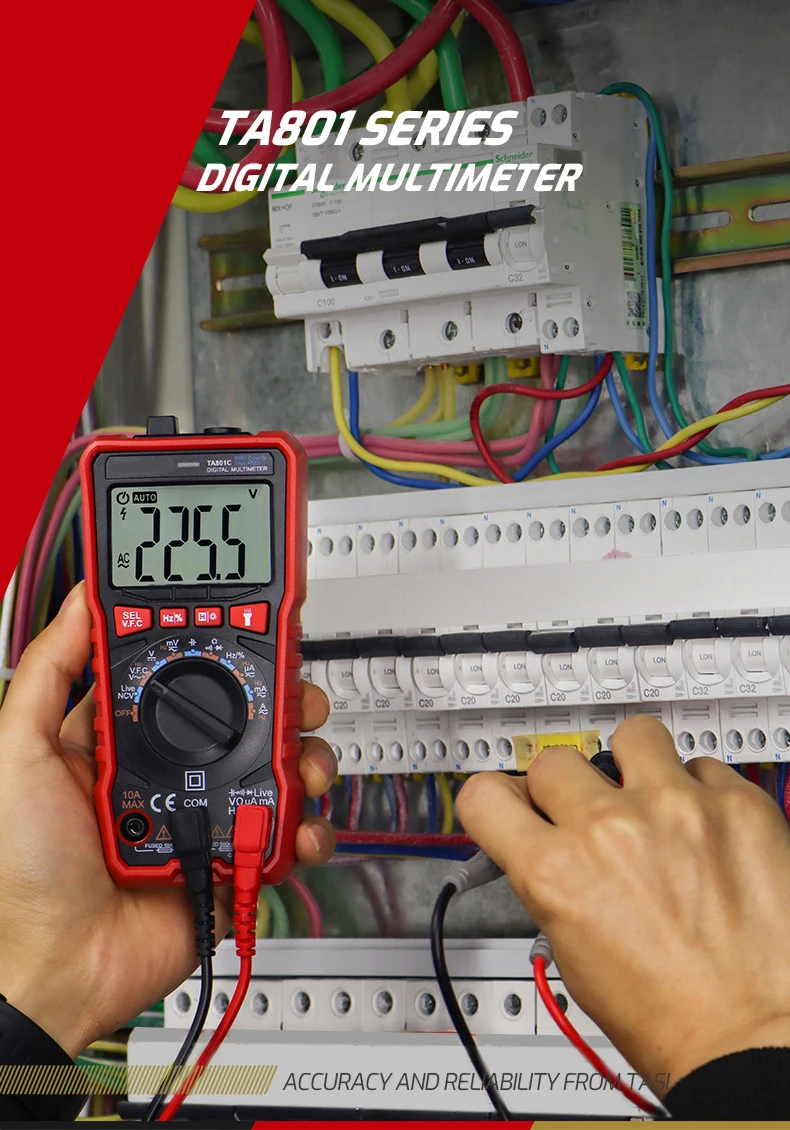

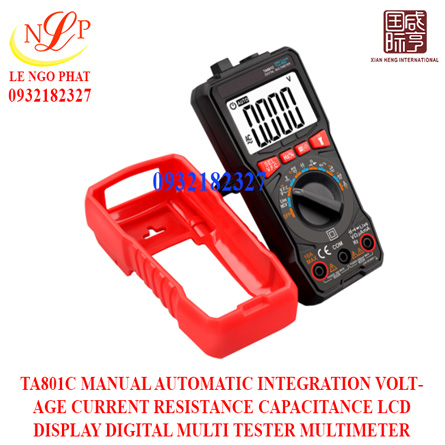

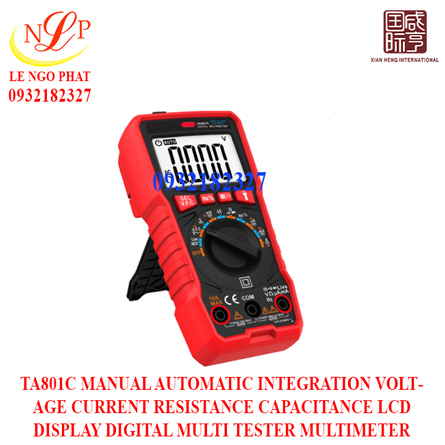

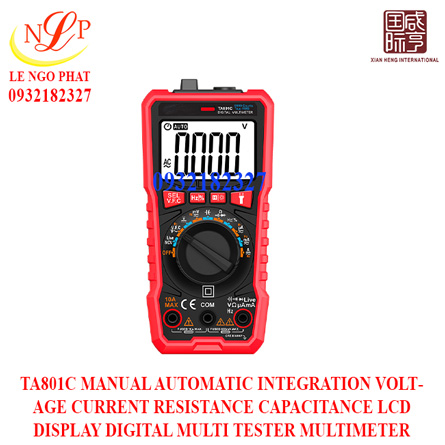

TA801C MANUAL AUTOMATIC INTEGRATION VOLTAGE CURRENT RESISTANCE CAPACITANCE LCD DISPLAY DIGITAL MULTI TESTER MULTIMETER

Model: TA801C

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: TA801B

Model: TA801B

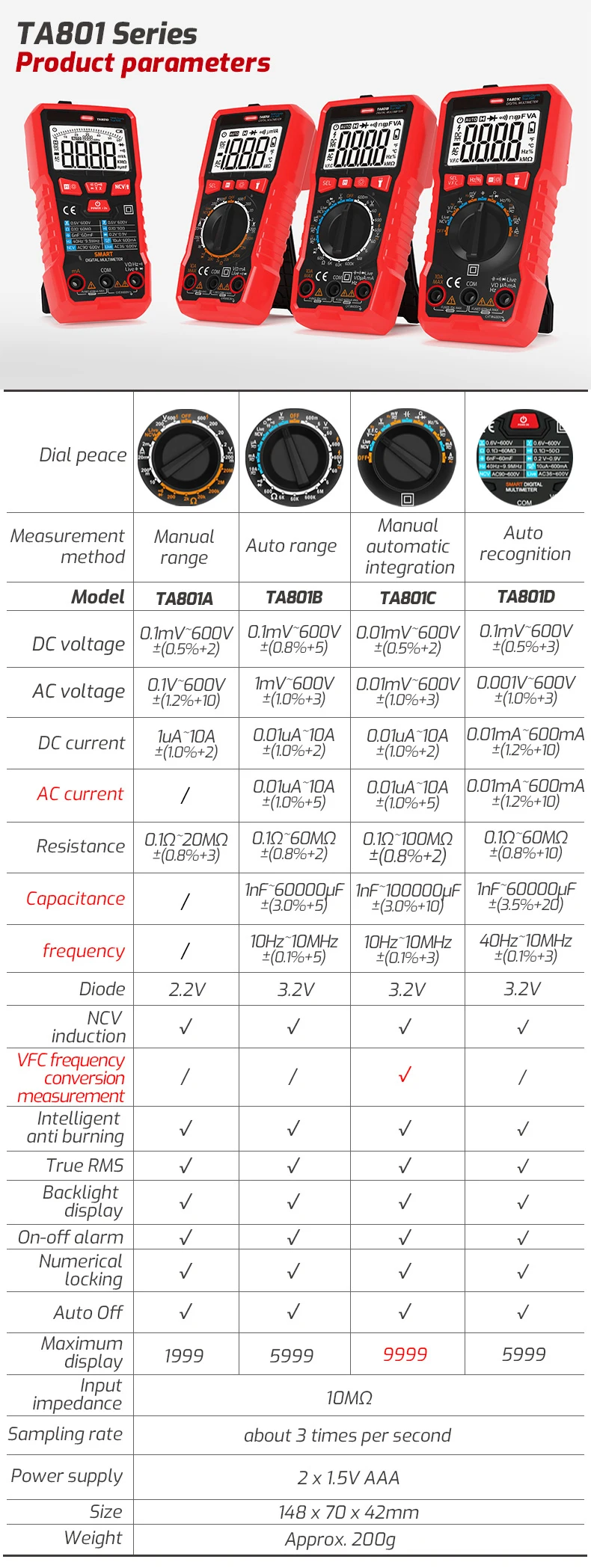

Technical Data:

Model	TA801A (Manual range)	TA801B (Manual and Auto integrated)	TA801C (Auto Range)	TA801D (Fully automatic)
DC Voltage	0.1mV~600V ±(0.5%+2)	0.1mV~600V ±(0.8%+5)	0.01uV~600V ±(0.5%+2)	0.6V~600V ±(0.5%+3)
AC Voltage	0.1V~600V ±(1.2%+10)	1mV~600V ±(1.0%+3)	0.01uV~600V ±(1.0%+3)	0.6V~600V ±(1.0%+3)
DC Current	1uA~10A ±(1.0%+2)	0.01uA~10A ±(1.0%+2)	0.01uA~10A ±(1.0%+2)	1uA~600mA ±(1.2%+10)
AC current	/	0.01uA~10A ±(1.0%+5)	0.01uA~10A ±(1.0%+5)	1uA~600mA ±(1.2%+10)
Resistance	0.1Ω~20MΩ ±(0.8%+3)	0.1Ω~60MΩ ±(0.8%+2)	0.1Ω~100MΩ ±(0.8%+2)	0.1Ω~60MΩ ±(0.8%+10)
Capacitance	/	1nF~60000μF ±(3.0%+5)	1nF~100000μF ±(3.0%+10)	6nF~60000μF ±(3.5%+20)
Frequency	/	10~10MHz ±(0.1%+5)	10~10MHz ±(0.1%+3)	40~10MHz ±(0.1%+3)
Diode	√ 2.2V	√ 3.2V	√ 3.2V	√ 3V
VFC frequency conversion measurement	/	/	√	/

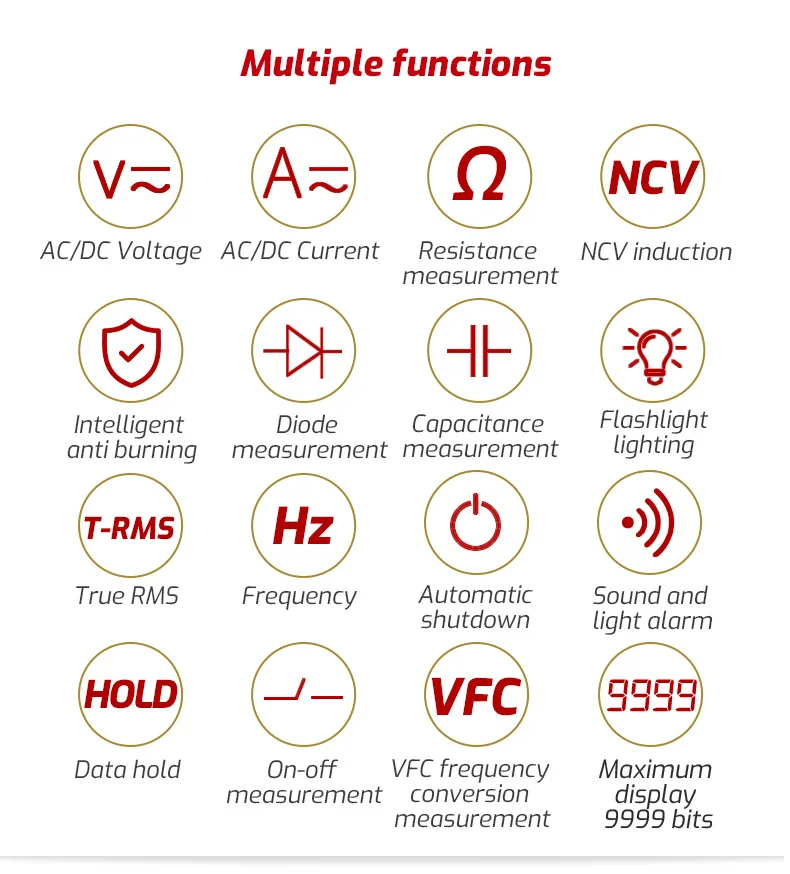

Intelligent anti burning	√
NCV Functional	√

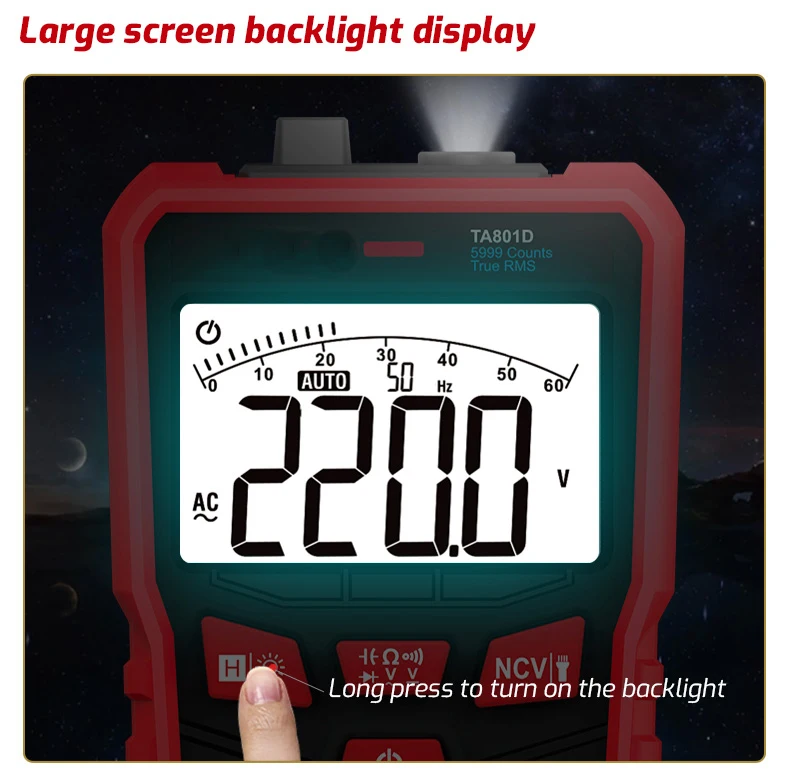

Backlight display	√
True RMS	√
On-off alarm	√
Numerical locking	√
Automatic shutdown	√ (About 15 minutes later)
Low Voltage Display	√
Maximum display	1999	5999	9999	5999
Input impedance	10MΩ	10MΩ	10MΩ	10MΩ
Sampling frequency	about 3 times per second

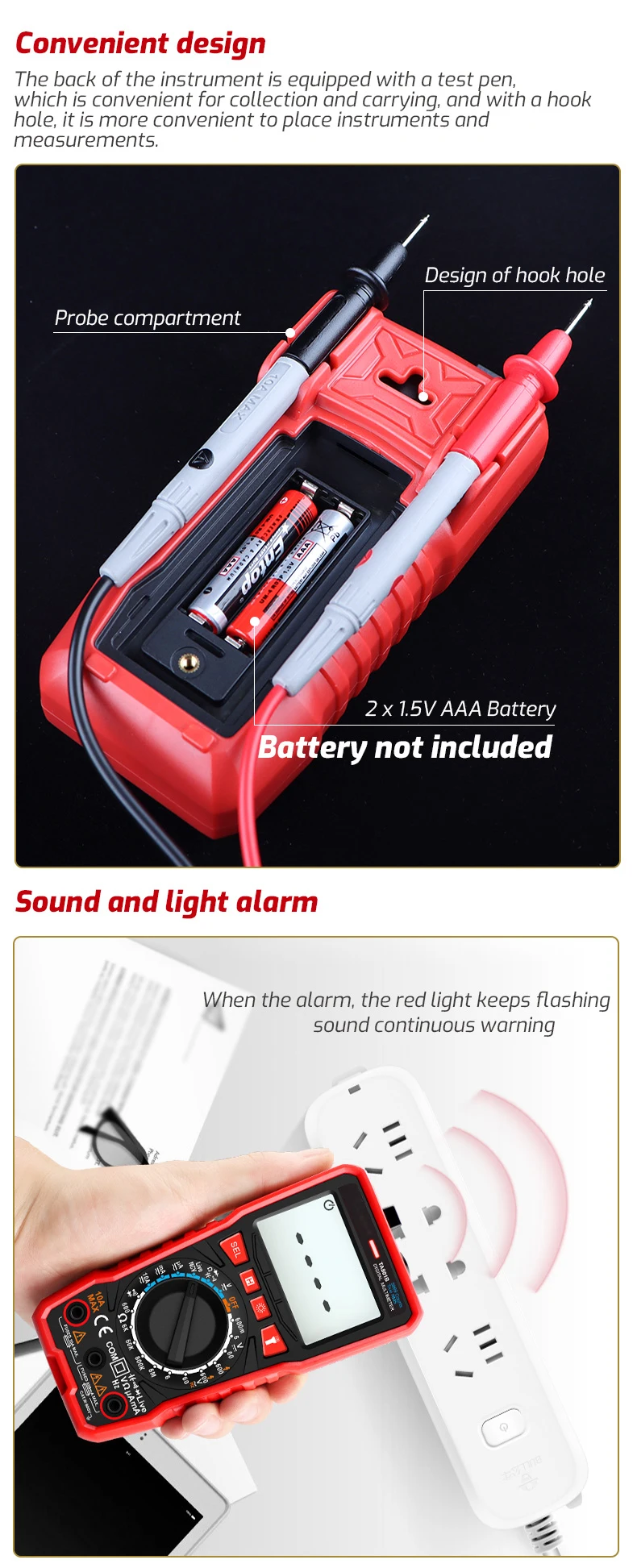

Power	2*1.5V AAA Battery

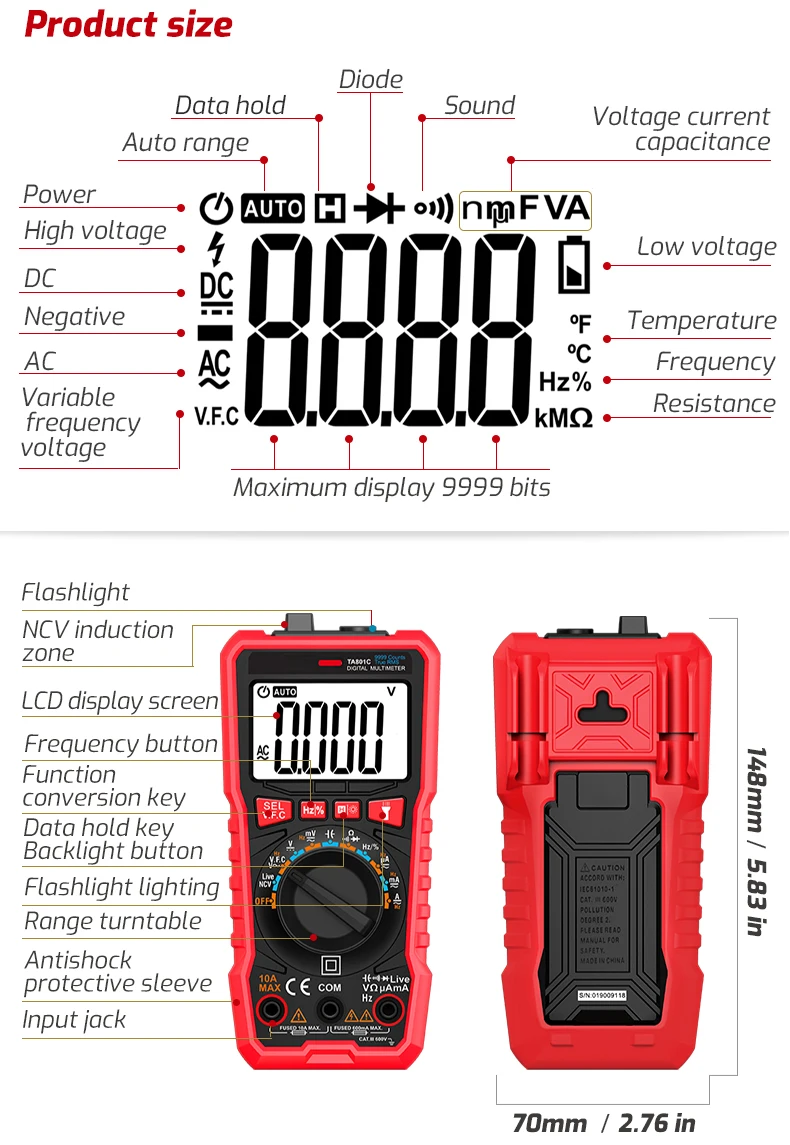

Dimension	1487042mm
Weight	320g (Containing batteries)

TỪ KHÓA: MÁY ĐO KỸ THUẬ SỐ, MÁY ĐO ĐỘ ẨM MÁY ĐỘ ẨM, MÁY ĐÔ ÁNH SÁNG, MÁY ĐÔ TẦNG SỐ ÂM THANH, TA8161, TA8123, TA8171, TA8315E

Technical Data:

Model	TA801A (Manual range)	TA801B (Manual and Auto integrated)	TA801C (Auto Range)	TA801D (Fully automatic)
DC Voltage	0.1mV~600V ±(0.5%+2)	0.1mV~600V ±(0.8%+5)	0.01uV~600V ±(0.5%+2)	0.6V~600V ±(0.5%+3)
AC Voltage	0.1V~600V ±(1.2%+10)	1mV~600V ±(1.0%+3)	0.01uV~600V ±(1.0%+3)	0.6V~600V ±(1.0%+3)
DC Current	1uA~10A ±(1.0%+2)	0.01uA~10A ±(1.0%+2)	0.01uA~10A ±(1.0%+2)	1uA~600mA ±(1.2%+10)
AC current	/	0.01uA~10A ±(1.0%+5)	0.01uA~10A ±(1.0%+5)	1uA~600mA ±(1.2%+10)
Resistance	0.1Ω~20MΩ ±(0.8%+3)	0.1Ω~60MΩ ±(0.8%+2)	0.1Ω~100MΩ ±(0.8%+2)	0.1Ω~60MΩ ±(0.8%+10)
Capacitance	/	1nF~60000μF ±(3.0%+5)	1nF~100000μF ±(3.0%+10)	6nF~60000μF ±(3.5%+20)
Frequency	/	10~10MHz ±(0.1%+5)	10~10MHz ±(0.1%+3)	40~10MHz ±(0.1%+3)
Diode	√ 2.2V	√ 3.2V	√ 3.2V	√ 3V
VFC frequency conversion measurement	/	/	√	/
Intelligent anti burning	√
NCV Functional	√
Backlight display	√
True RMS	√
On-off alarm	√
Numerical locking	√
Automatic shutdown	√ (About 15 minutes later)
Low Voltage Display	√
Maximum display	1999	5999	9999	5999
Input impedance	10MΩ	10MΩ	10MΩ	10MΩ
Sampling frequency	about 3 times per second
Power	2*1.5V AAA Battery
Dimension	1487042mm
Weight	320g (Containing batteries)
