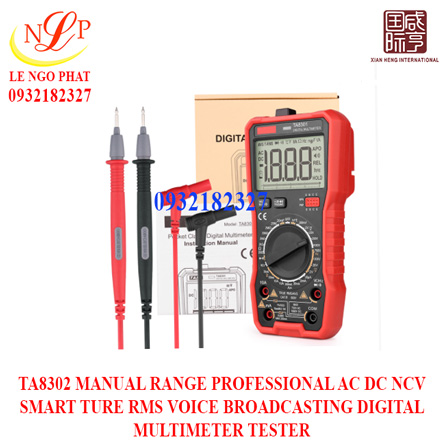

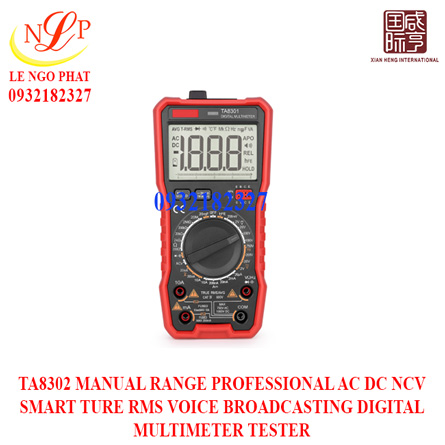

TA8302 MANUAL RANGE PROFESSIONAL AC DC NCV SMART TURE RMS VOICE BROADCASTING DIGITAL MULTIMETER TESTER

Model: TA8302

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: TA8302

Model: TA8302

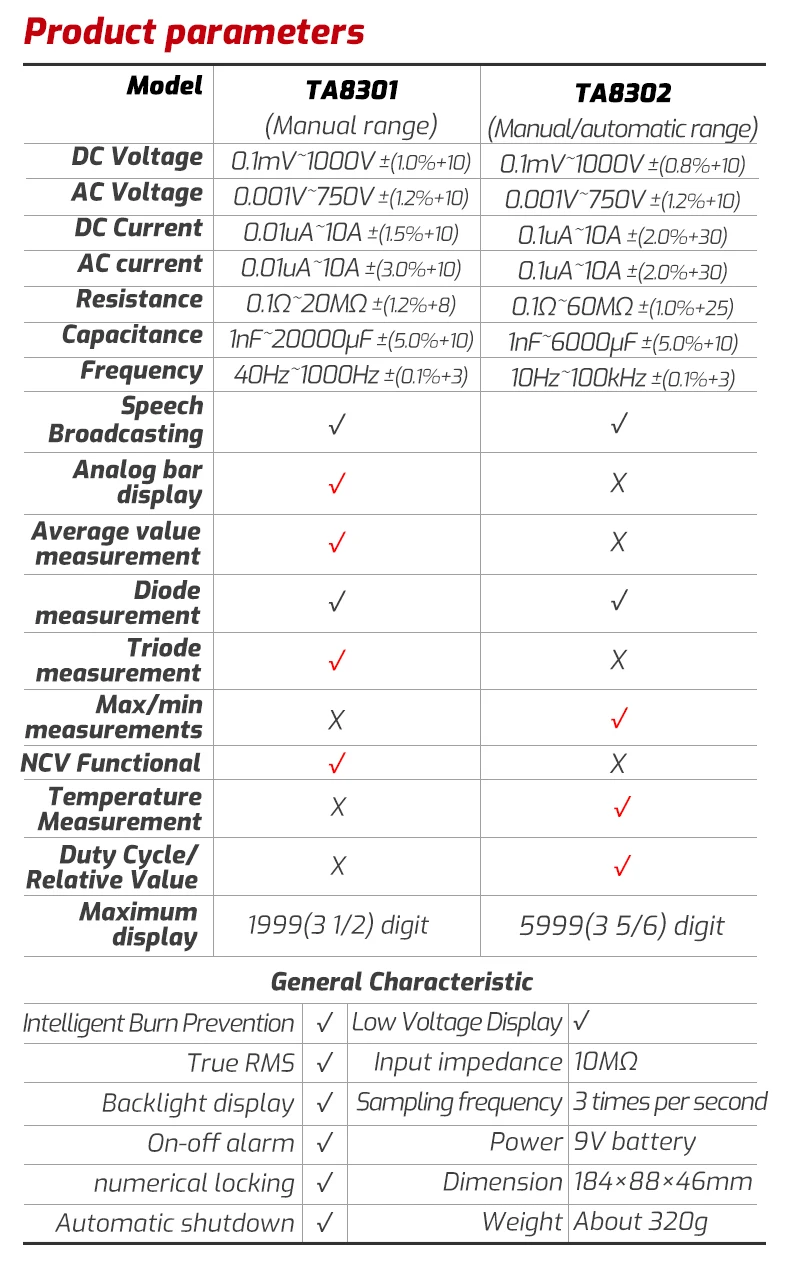

Technical Data:

Model	TA8301 (Manual range)	TA8302 (Manual/automatic range)
DC Voltage	0.1mV~1000V±(1.0%+10)	0.1mV~1000V±(0.8%+10)
AC Voltage	0.001V~750V±(1.2%+10)	0.001V~750V±(1.2%+10)
DC Current	0.01uA~10A±(1.5%+10)	0.1uA~10A±(2.0%+30)
AC current	0.01uA~10A±(3.0%+10)	0.1uA~10A±(2.0%+30)
Resistance	0.1Ω~20MΩ±(1.2%+8)	0.1Ω~60MΩ±(1.0%+25)
Capacitance	1nF~20000μF±(5.0%+10)	1nF~6000μF±(5.0%+10)
Frequency	40~1000Hz±(0.1%+3)	10Hz~100kHz±(0.1%+3)

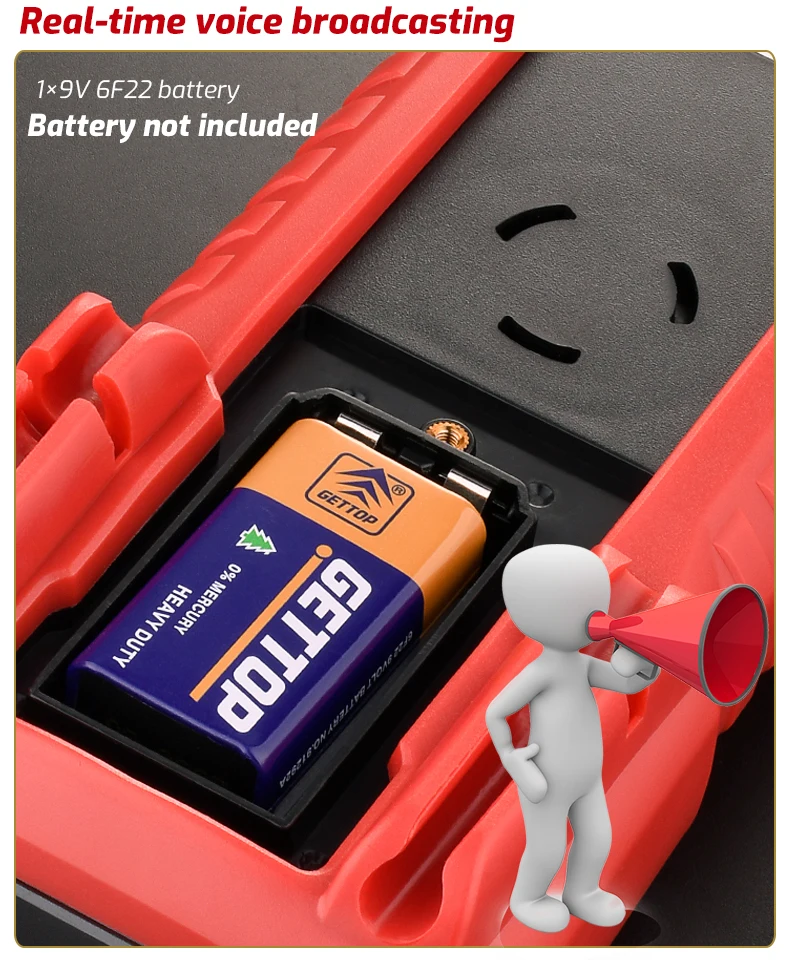

Speech Broadcasting	√
Analog bar display	√	NO
Average value measurement	√	NO
Diode measurement	√
Triode measurement	√	NO
Max/min measurements	NO	√
NCV Functional	√	NO
Temperature Measurement	NO	√
Duty Cycle/Relative Value	NO	√
Maximum display	1999(3 1/2) digit	5999(3 5/6) digit
General Characteristic
Intelligent Burn Prevention	√

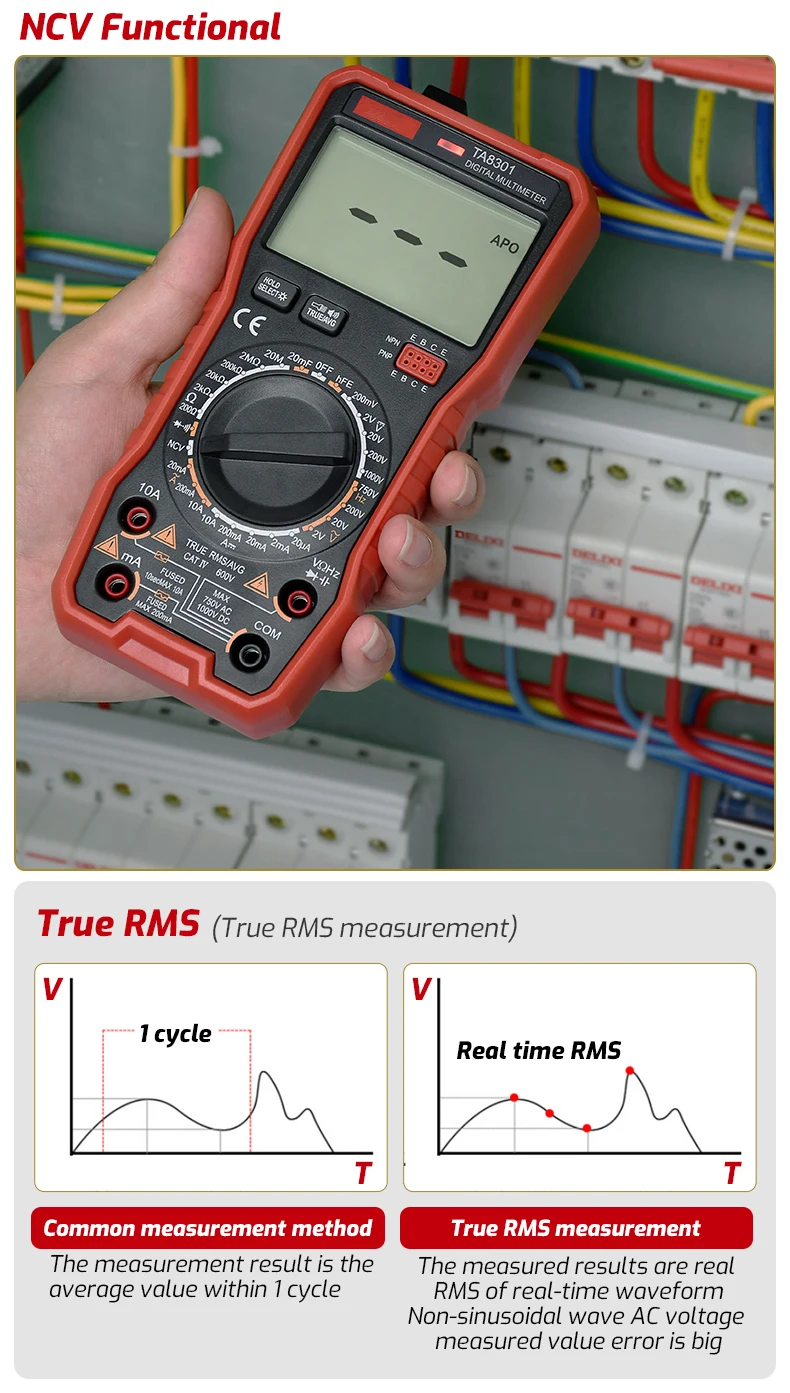

True RMS	√

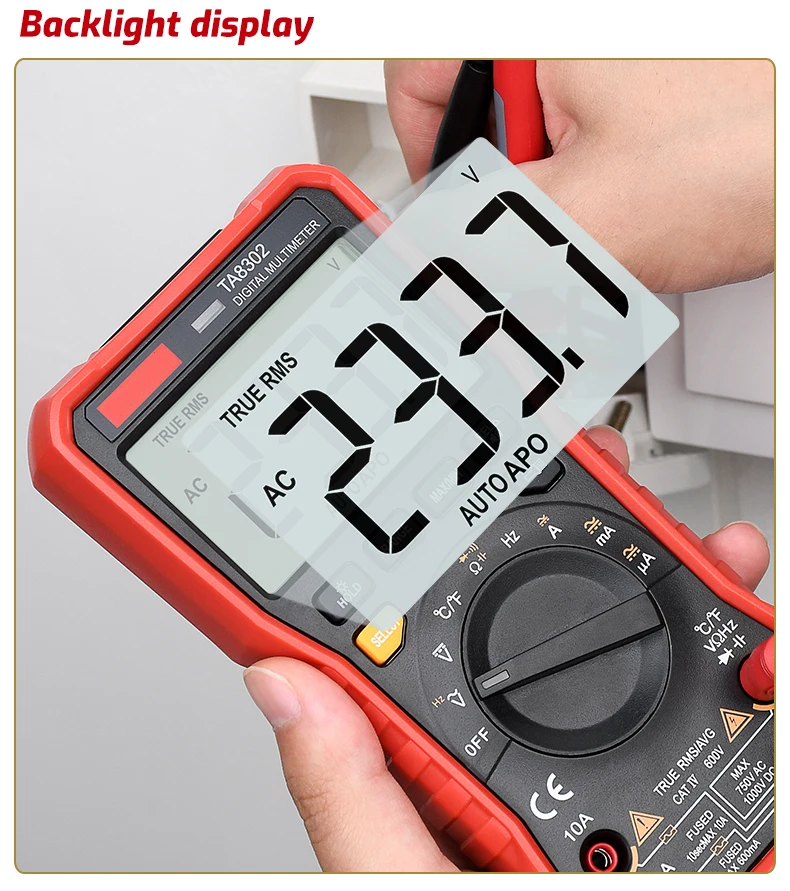

Backlight display	√
On-off alarm	√
numerical locking	√
Automatic shutdown	√ (About 15 minutes)
Low Voltage Display	√
Input impedance	10MΩ
Sampling frequency	3 times per second
Power	9V battery

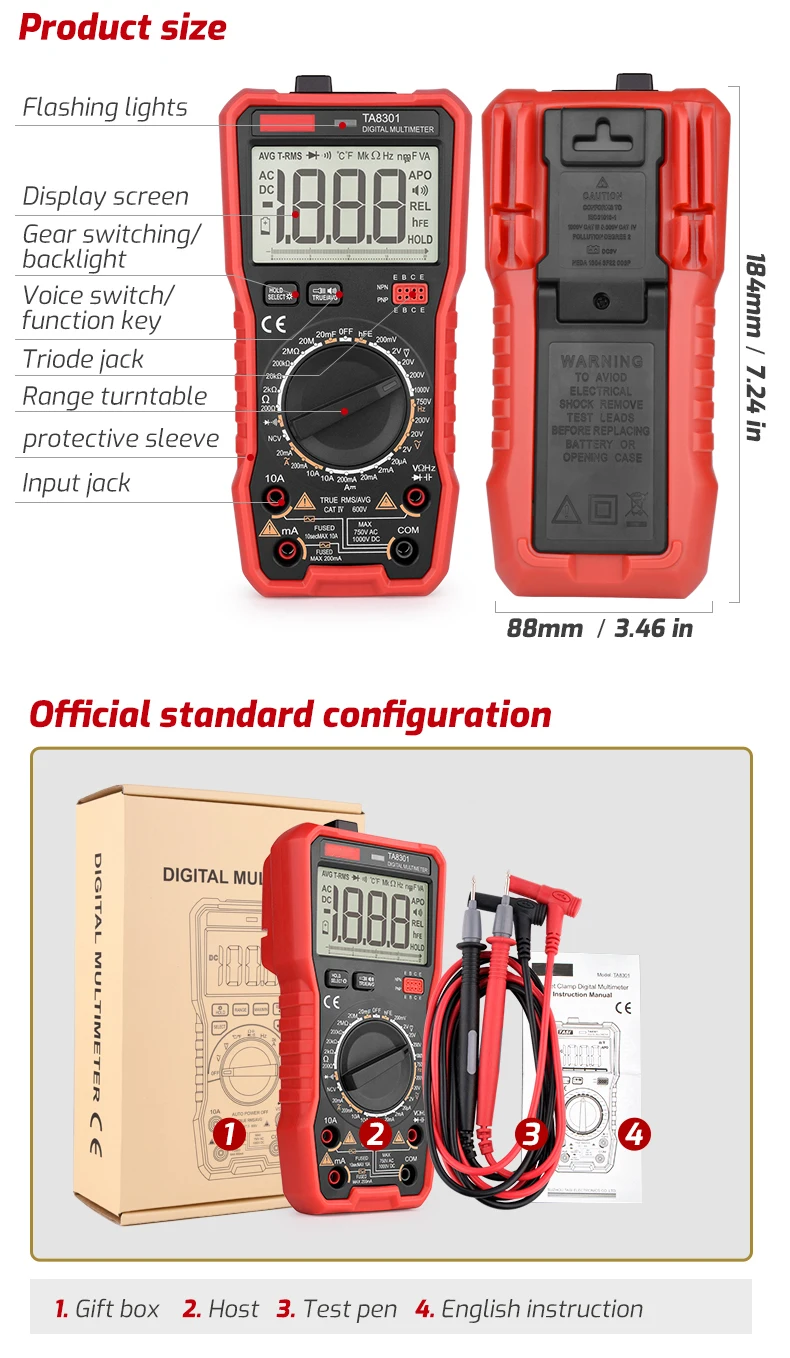

Dimension	1848846mm
Weight	320g (Containing batteries)
