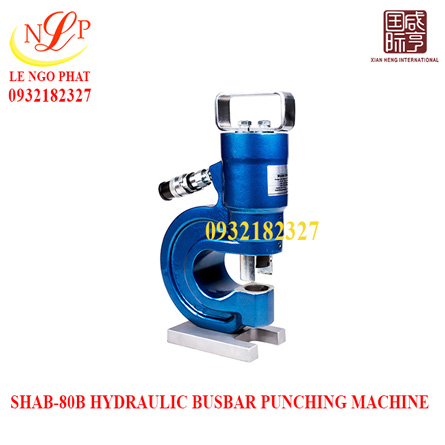

SHAB-80B HYDRAULIC BUSBAR PUNCHING MACHINE

Model: SHAB-80B

Output Force: 31T

Rated Pressure: 700bar

Punching Thickness: Max. 13mm Cu/Al Max. 10mm Steel

Standard Accessories: Dia. 10.5 13.5 17.5 20.5

Throat Depth: 80mm

Optional Accessories: Dia.8.5 11.5 15.5 18.5

Weight: 13.5KG

Packing: Steel Case/ Plastic case

Giá: 0932182327

Mã sản phẩm: SHAB-80B

Model: SHAB-80B

Technical Data:

Model	SHAB-80B
Output Force	31T
Rated Pressure	700bar
Punching Thickness	Max. 13mm Cu/Al Max. 10mm Steel
Standard Accessories	Dia. 10.5 13.5 17.5 20.5
Throat Depth	80mm
Optional Accessories	Dia.8.5 11.5 15.5 18.5
Weight	13.5KG
Packing	Steel Case/ Plastic case

Features:
1. Punch angle steel in L shape, I-beam in H shape, flat steel plate, Cu and Al busbar.
2. Body is made of high strength steel, easy to punch big hole on thick steel plate.
3. Adopt 2 stage hydraulics, quicker work with no dies stuck.
4. Portable for mobile operation, also suitable to fix in workshop for batch cut work.
5. Throat depth 100mm, punching work finished quicker and easier.
6. Equipped with quick coupler for easy disassembly.
7. Powered by double acting hydraulic pump.

Technical Data:

Model	SHAB-80B
Output Force	31T
Rated Pressure	700bar
Punching Thickness	Max. 13mm Cu/Al Max. 10mm Steel
Standard Accessories	Dia. 10.5 13.5 17.5 20.5
Throat Depth	80mm
Optional Accessories	Dia.8.5 11.5 15.5 18.5
Weight	13.5KG
Packing	Steel Case/ Plastic case
