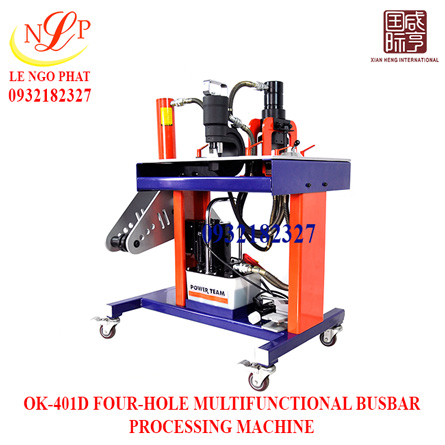

OK-401D FOUR-HOLE MULTIFUNCTIONAL BUSBAR PROCESSING MACHINE

Model: OK-401D

Function: Cutting, Punching, Horizontal Bending, Vertical Bending

Input Power: 220V, 50HZ

Rated Pressure: 700bar

Cutting Force: 25T

Punching Force: 100T

Bending Force:25T

Cutting Capacity: Cu/Al 150mm X 12mm

Horizontal Bending Capacity: Cu/Al 125mm X 16mm

Vertica lBending Capacity: Cu/Al 125mm X 12mm

Single punching number: Single hole, two holes, four holes

Punching Capacity: Thickness 26mm, width 200mm or less

Distance of four holes: 40mm-60mm

Standard Bending Dies: Horizontal bending die, Vertical bending die base, 8pcs vertical bending dies (40-80x4, 40-80x5 40-80x6, 40-80x8, 40-80x10,
100x10, 100-125x10, 120-125x12); 6pcs support blocks (4, 5, 6, 8, 10, 12)

Work Bench Size: 1100mm(L) ×800mm(W) ×1200mm(H)

Weight: 240 kg

Optional Accessories: Punching dies customized

Giá: 0932182327

Mã sản phẩm: OK-401D

Model: OK-401D

Technical Data:

Model	OK-401D
Function	Cutting, Punching, Horizontal Bending, Vertical Bending
Input Power	220V, 50HZ
Rated Pressure	700bar
Cutting Force	25T
Punching Force	100T
Bending Force	25T
Cutting Capacity	Cu/Al 150mm X 12mm
Horizontal Bending Capacity	Cu/Al 125mm X 16mm
Vertica lBending Capacity	Cu/Al 125mm X 12mm
Single punching number	Single hole, two holes, four holes
Punching Capacity	Thickness 26mm, width 200mm or less
Distance of four holes	40mm-60mm
Standard Bending Dies	Horizontal bending die, Vertical bending die base, 8pcs vertical bending dies (40-80x4, 40-80x5 40-80x6, 40-80x8, 40-80x10, 100x10, 100-125x10, 120-125x12); 6pcs support blocks (4, 5, 6, 8, 10, 12)
Work Bench Size	1100mm(L) ×800mm(W) ×1200mm(H)
Weight	240 kg
Optional Accessories	Punching dies customized

Features:
1. Bending capacity from 1° to 120°
2. It can punch two holes, four holes at the same time
3. With positioning scale for punching, cutting and bending
4. Open working platform enable work piece not oblique after bending
5. Punch holes with burr. Cutting surface smooth and cutting angle accurately. It is good for quick and repeat batch procession.
6. Four-way valve control switch accurately guide to the position of punching, cutting and bending.
7. Safe and firm pedal switch could control oil inlet and oil return.

Technical Data:

Model	OK-401D
Function	Cutting, Punching, Horizontal Bending, Vertical Bending
Input Power	220V, 50HZ
Rated Pressure	700bar
Cutting Force	25T
Punching Force	100T
Bending Force	25T
Cutting Capacity	Cu/Al 150mm X 12mm
Horizontal Bending Capacity	Cu/Al 125mm X 16mm
Vertica lBending Capacity	Cu/Al 125mm X 12mm
Single punching number	Single hole, two holes, four holes
Punching Capacity	Thickness 26mm, width 200mm or less
Distance of four holes	40mm-60mm
Standard Bending Dies	Horizontal bending die, Vertical bending die base, 8pcs vertical bending dies (40-80x4, 40-80x5 40-80x6, 40-80x8, 40-80x10, 100x10, 100-125x10, 120-125x12); 6pcs support blocks (4, 5, 6, 8, 10, 12)
Work Bench Size	1100mm(L) ×800mm(W) ×1200mm(H)
Weight	240 kg
Optional Accessories	Punching dies customized
