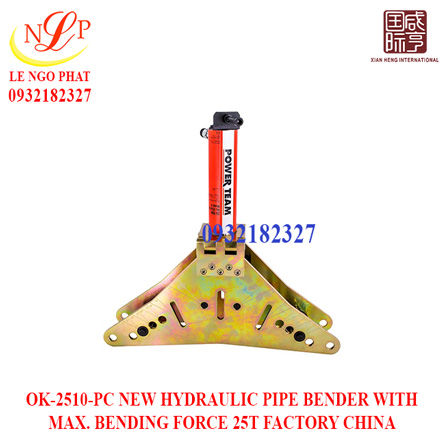

OK-2510-PC NEW HYDRAULIC PIPE BENDER WITH MAX. BENDING FORCE 25T FACTORY CHINA

Output force: 25T

Rated pressure: 700bar

Horizontal bending capacity: Cu /Al 125mm×16mm

Vertical bending capacity: Cu /Al 125mm×12mm

Pipe bending capacity: Max 3"

Weight: 53.5kg

Standard dies:

One double offset ring spanner (19-inch), hexagon wrench(5mm, 8mm, 10mm) *1, Horizontal bending die*1, vertical bending die base*1, eight sets of vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12)

Six support blocks (4, 5, 6, 8, 10,12)

One screw, used to connect the oil cylinder

7 sets of bending dies(½ ¾ 1 1½ 2 2½ 3), 2 sets of leaning die , one bending middle screw

Package: Wooden case

Optional dies: horizontal bending tripod, bending die 1¼

Giá: 0932182327

Mã sản phẩm: OK-2510-PC

Model: OK-2510-PC

Technical Data:

Output force	25T
Rated pressure	700bar
Horizontal bending capacity	Cu /Al 125mm×16mm
Vertical bending capacity	Cu /Al 125mm×12mm
Pipe bending capacity	Max 3"
Weight	53.5kg
Standard dies	One double offset ring spanner (19-inch), hexagon wrench(5mm, 8mm, 10mm) *1,
	Horizontal bending die1, vertical bending die base1, eight sets of vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12)
	Six support blocks (4, 5, 6, 8, 10,12)
	One screw, used to connect the oil cylinder
	7 sets of bending dies(½ ¾ 1 1½ 2 2½ 3), 2 sets of leaning die , one bending middle screw
Package	Wooden case
Optional dies	horizontal bending tripod, bending die 1¼

Features:
1. 3 in 1 horizontal, vertical bending and pipe bending
2. Angle mark engraved for exact bending
3. 25ton cylinder makes bending powerful, fast and efficient
4. With a fixator, ensure to work in horizontal situation
5. Powered by single acting electric hydraulic pump

Technical Data:

Output force	25T
Rated pressure	700bar
Horizontal bending capacity	Cu /Al 125mm×16mm
Vertical bending capacity	Cu /Al 125mm×12mm
Pipe bending capacity	Max 3"
Weight	53.5kg
Standard dies	One double offset ring spanner (19-inch), hexagon wrench(5mm, 8mm, 10mm) *1,
	Horizontal bending die1, vertical bending die base1, eight sets of vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12)
	Six support blocks (4, 5, 6, 8, 10,12)
	One screw, used to connect the oil cylinder
	7 sets of bending dies(½ ¾ 1 1½ 2 2½ 3), 2 sets of leaning die , one bending middle screw
Package	Wooden case
Optional dies	horizontal bending tripod, bending die 1¼

Technical Data:

Output force	25T
Rated pressure	700bar
Horizontal bending capacity	Cu /Al 125mm×16mm
Vertical bending capacity	Cu /Al 125mm×12mm
Pipe bending capacity	Max 3"
Weight	53.5kg
Standard dies	One double offset ring spanner (19-inch), hexagon wrench(5mm, 8mm, 10mm) *1,
	Horizontal bending die1, vertical bending die base1, eight sets of vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12)
	Six support blocks (4, 5, 6, 8, 10,12)
	One screw, used to connect the oil cylinder
	7 sets of bending dies(½ ¾ 1 1½ 2 2½ 3), 2 sets of leaning die , one bending middle screw
Package	Wooden case
Optional dies	horizontal bending tripod, bending die 1¼
