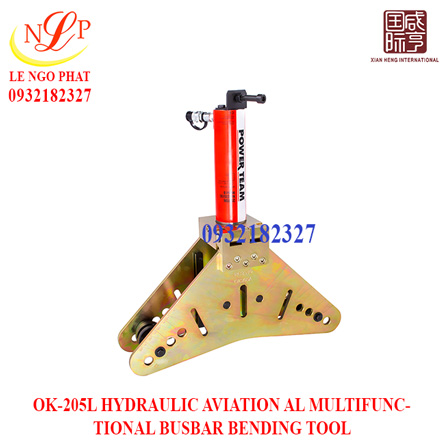

OK-205L HYDRAULIC AVIATION AL MULTIFUNCTIONAL BUSBAR BENDING TOOL

Model: OK-205L.

Output Force: 25T.

Rated Pressure: 700bar.

Horizontal Bending Capacity: Max.125X16mm Cu/Al.

Vertical Bending Capacity: Max.125X12mm Cu/Al.

Weight: 38kg

Standard Accessories:

Double offset ring spanner (19-inch), Allen wrench (5mm, 8mm, 10mm), Horizontal bending die, vertical bending die base, 8pcs vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12) 6pcs support blocks (4, 5, 6, 8, 10,12), Oil cylinder screw.

Optional Accessories: Horizontal bending tripod.

Packing: Wooden case for main body, steel case for accessories.

Giá: 0932182327

Mã sản phẩm: OK-205L

Model: OK-205L

Technical Data:

Model	OK-205L
Output Force	25T
Rated Pressure	700bar
Horizontal Bending Capacity	Max.125X16mm Cu/Al
Vertical Bending Capacity	Max.125X12mm Cu/Al
Weight	38kg
Standard Accessories	Double offset ring spanner (19-inch), Allen wrench (5mm, 8mm, 10mm), Horizontal bending die, vertical bending die base, 8pcs vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12) 6pcs support blocks (4, 5, 6, 8, 10,12), Oil cylinder screw
Optional Accessories	Horizontal bending tripod
Packing	Wooden case for main body, steel case for accessories

Features:
1. Bend Cu and Al busbar up to 125mm for power plant and substation.
2. 2 in 1 for horizontal and vertical bending.
3. 25ton cylinder makes bending powerful, fast and efficient.
4. With a fixator, ensure to work in horizontal situation.
5. Aviation Al body, super light to carry.

Technical Data:

Model	OK-205L
Output Force	25T
Rated Pressure	700bar
Horizontal Bending Capacity	Max.125X16mm Cu/Al
Vertical Bending Capacity	Max.125X12mm Cu/Al
Weight	38kg
Standard Accessories	Double offset ring spanner (19-inch), Allen wrench (5mm, 8mm, 10mm), Horizontal bending die, vertical bending die base, 8pcs vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12) 6pcs support blocks (4, 5, 6, 8, 10,12), Oil cylinder screw
Optional Accessories	Horizontal bending tripod
Packing	Wooden case for main body, steel case for accessories

Technical Data:

Model	OK-205L
Output Force	25T
Rated Pressure	700bar
Horizontal Bending Capacity	Max.125X16mm Cu/Al
Vertical Bending Capacity	Max.125X12mm Cu/Al
Weight	38kg
Standard Accessories	Double offset ring spanner (19-inch), Allen wrench (5mm, 8mm, 10mm), Horizontal bending die, vertical bending die base, 8pcs vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12) 6pcs support blocks (4, 5, 6, 8, 10,12), Oil cylinder screw
Optional Accessories	Horizontal bending tripod
Packing	Wooden case for main body, steel case for accessories
