CÔNG TY TNHH LÊ NGÔ PHÁT

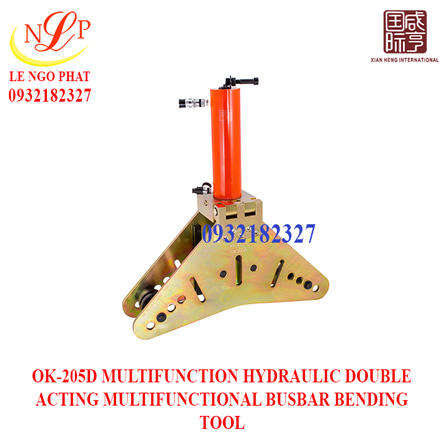

OK-205D MULTIFUNCTION HYDRAULIC DOUBLE ACTING MULTIFUNCTIONAL BUSBAR BENDING TOOL
Model: OK-205D
Output Force: 25T
Rated Pressure: 700bar
Horizontal Bending Capacity: Max.125X16mm Cu/Al
Vertical Bending Capacity
Max.125X12mm Cu/Al
Weight
53kg
Standard Accessories
Double offset ring spanner (19-inch), Allen wrench (5mm, 8mm, 10mm),
Horizontal bending die, vertical bending die base, 8pcs vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12)
6pcs support blocks (4, 5, 6, 8, 10,12), Oil cylinder screw
Optional Accessories: Horizontal bending tripod
Packing: Wooden case for main body, steel case for accessories
Features:
1. Bend Cu and Al busbar up to 125mm for power plant and substation
2. 2 in 1 for horizontal and vertical bending
3. 25ton cylinder makes bending powerful, fast and efficient
4. With a fixator, ensure to work in horizontal situation
5. Alloy steel body with light weight, easy to carry
Model: OK-205D
Output Force: 25T
Rated Pressure: 700bar
Horizontal Bending Capacity: Max.125X16mm Cu/Al
Vertical Bending Capacity
Max.125X12mm Cu/Al
Weight
53kg
Standard Accessories
Double offset ring spanner (19-inch), Allen wrench (5mm, 8mm, 10mm),
Horizontal bending die, vertical bending die base, 8pcs vertical bending dies (40-80x4 40-80x5 40-80x6 40-80x8 40-80x10 100x10 100-125x10 120-125x12)
6pcs support blocks (4, 5, 6, 8, 10,12), Oil cylinder screw
Optional Accessories: Horizontal bending tripod
Packing: Wooden case for main body, steel case for accessories
Features:
1. Bend Cu and Al busbar up to 125mm for power plant and substation
2. 2 in 1 for horizontal and vertical bending
3. 25ton cylinder makes bending powerful, fast and efficient
4. With a fixator, ensure to work in horizontal situation
5. Alloy steel body with light weight, easy to carry
|
Model |
OK-205D |
|
Output Force |
25T |
|
Rated Pressure |
700bar |
|
Horizontal Bending Capacity |
Max.125X16mm Cu/Al |
|
Vertical |
Max.125X12mm Cu/Al |
|
Weight |
53kg |
|
Standard Accessories |
Double offset ring spanner (19-inch), |
|
Optional Accessories |
Horizontal bending tripod |
|
Packing |
Wooden case for main body, steel case for accessories |
Features:
1. Bend Cu and Al busbar up to 125mm for power plant and substation
2. 2 in 1 for horizontal and vertical bending
3. 25ton cylinder makes bending powerful, fast and efficient
4. With a fixator, ensure to work in horizontal situation
5. Alloy steel body with light weight, easy to carry
|
Model |
OK-205D |
|
Output Force |
25T |
|
Rated Pressure |
700bar |
|
Horizontal Bending Capacity |
Max.125X16mm Cu/Al |
|
Vertical |
Max.125X12mm Cu/Al |
|
Weight |
53kg |
|
Standard Accessories |
Double offset ring spanner (19-inch), |
|
Optional Accessories |
Horizontal bending tripod |
|
Packing |
Wooden case for main body, steel case for accessories |
Features:
1. Bend Cu and Al busbar up to 125mm for power plant and substation
2. 2 in 1 for horizontal and vertical bending
3. 25ton cylinder makes bending powerful, fast and efficient
4. With a fixator, ensure to work in horizontal situation
5. Alloy steel body with light weight, easy to carry
