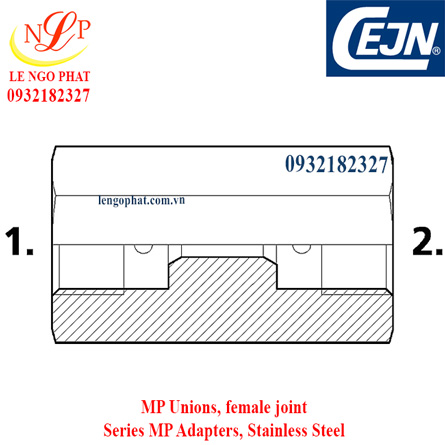

MP Unions, female joint

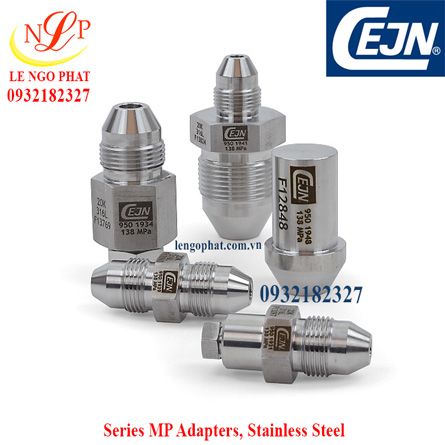

MP Adapters, Stainless Steel
MP (Max 20k PSI)Adapters
Industry standard adapters for tube sizes from 1/4" to 1". Manufactured from cold drawn, NACE certified, AISI 316L / EN1.4404 stainless steel for maximum life.
| MP Adapters, Stainless Steel (Max 20k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199501925 | MP Unions, female joint | 27 Nm | 1/4" | 1/4" | 138.0 MPa |
| 199501926 | MP Unions, female joint | 41 Nm | 3/8" | 3/8" | 138.0 MPa |
| 199501927 | MP Unions, female joint | 75 Nm | 9/16" | 9/16" | 138.0 MPa |
| 199501928 | MP Unions, female joint | 123 Nm | 3/4" | 3/4" | 138.0 MPa |
| 199501929 | MP Unions, female joint | 204 Nm | 1" | 1" | 138.0 MPa |
| 199501930 | MP female to male joint | conn.1: 27 conn.2: 41 Nm | 1/4" | 3/8" | 138.0 MPa |
| 199501931 | MP female to male joint | conn.1: 27 conn.2: 75 Nm | 1/4" | 9/16" | 138.0 MPa |
| 199501932 | MP female to male joint | conn.1 :41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501933 | MP female to male joint | conn.1: 75 conn.2: 75 Nm | 9/16" | 3/8" | 138.0 MPa |
| 199501934 | MP female to male joint | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501935 | MP female to male joint | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| 199501936 | MP male to MP male adapter | 27 Nm | 1/4" | 1/4" | 138.0 MPa |
| 199501937 | MP male to MP male adapter | 41 Nm | 3/8" | 3/8" | 138.0 MPa |
| 199501938 | MP male to MP male adapter | conn.1: 41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501939 | MP male to MP male adapter | 75 Nm | 9/16" | 9/16" | 138.0 MPa |
| 199501940 | MP male to MP male adapter | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501941 | MP male to MP male adapter | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| 199501942 | MP male to MP male adapter | 123 Nm | 3/4" | 3/4" | 138.0 MPa |
| 199501943 | MP male to MP male adapter | 204 Nm | 1" | 1" | 138.0 MPa |
| 199501944 | MP plug | - Nm | 1/4 | - | 138.0 MPa |
| 199501945 | MP plug | - Nm | 3/8" | - | 138.0 MPa |
| 199501946 | MP plug | - Nm | 9/16" | - | 138.0 MPa |
| 199501947 | MP plug | - Nm | 3/4" | - | 138.0 MPa |
| 199501948 | MP plug | - Nm | 1" | - | 138.0 MPa |
| MP Adapters, Stainless Steel (Max 20k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199501925 | MP Unions, female joint | 27 Nm | 1/4" | 1/4" | 138.0 MPa |
| 199501926 | MP Unions, female joint | 41 Nm | 3/8" | 3/8" | 138.0 MPa |
| 199501927 | MP Unions, female joint | 75 Nm | 9/16" | 9/16" | 138.0 MPa |
| 199501928 | MP Unions, female joint | 123 Nm | 3/4" | 3/4" | 138.0 MPa |
| 199501929 | MP Unions, female joint | 204 Nm | 1" | 1" | 138.0 MPa |
| 199501930 | MP female to male joint | conn.1: 27 conn.2: 41 Nm | 1/4" | 3/8" | 138.0 MPa |
| 199501931 | MP female to male joint | conn.1: 27 conn.2: 75 Nm | 1/4" | 9/16" | 138.0 MPa |
| 199501932 | MP female to male joint | conn.1 :41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501933 | MP female to male joint | conn.1: 75 conn.2: 75 Nm | 9/16" | 3/8" | 138.0 MPa |
| 199501934 | MP female to male joint | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501935 | MP female to male joint | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| 199501936 | MP male to MP male adapter | 27 Nm | 1/4" | 1/4" | 138.0 MPa |
| 199501937 | MP male to MP male adapter | 41 Nm | 3/8" | 3/8" | 138.0 MPa |
| 199501938 | MP male to MP male adapter | conn.1: 41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501939 | MP male to MP male adapter | 75 Nm | 9/16" | 9/16" | 138.0 MPa |
| 199501940 | MP male to MP male adapter | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501941 | MP male to MP male adapter | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| 199501942 | MP male to MP male adapter | 123 Nm | 3/4" | 3/4" | 138.0 MPa |
| 199501943 | MP male to MP male adapter | 204 Nm | 1" | 1" | 138.0 MPa |
| 199501944 | MP plug | - Nm | 1/4 | - | 138.0 MPa |
| 199501945 | MP plug | - Nm | 3/8" | - | 138.0 MPa |
| 199501946 | MP plug | - Nm | 9/16" | - | 138.0 MPa |
| 199501947 | MP plug | - Nm | 3/4" | - | 138.0 MPa |
| 199501948 | MP plug | - Nm | 1" | - | 138.0 MPa |
| MP Adapters, Stainless Steel (Max 20k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199501925 | MP Unions, female joint | 27 Nm | 1/4" | 1/4" | 138.0 MPa |
| 199501926 | MP Unions, female joint | 41 Nm | 3/8" | 3/8" | 138.0 MPa |
| 199501927 | MP Unions, female joint | 75 Nm | 9/16" | 9/16" | 138.0 MPa |
| 199501928 | MP Unions, female joint | 123 Nm | 3/4" | 3/4" | 138.0 MPa |
| 199501929 | MP Unions, female joint | 204 Nm | 1" | 1" | 138.0 MPa |
| 199501930 | MP female to male joint | conn.1: 27 conn.2: 41 Nm | 1/4" | 3/8" | 138.0 MPa |
| 199501931 | MP female to male joint | conn.1: 27 conn.2: 75 Nm | 1/4" | 9/16" | 138.0 MPa |
| 199501932 | MP female to male joint | conn.1 :41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501933 | MP female to male joint | conn.1: 75 conn.2: 75 Nm | 9/16" | 3/8" | 138.0 MPa |
| 199501934 | MP female to male joint | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501935 | MP female to male joint | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| 199501936 | MP male to MP male adapter | 27 Nm | 1/4" | 1/4" | 138.0 MPa |
| 199501937 | MP male to MP male adapter | 41 Nm | 3/8" | 3/8" | 138.0 MPa |
| 199501938 | MP male to MP male adapter | conn.1: 41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501939 | MP male to MP male adapter | 75 Nm | 9/16" | 9/16" | 138.0 MPa |
| 199501940 | MP male to MP male adapter | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501941 | MP male to MP male adapter | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| 199501942 | MP male to MP male adapter | 123 Nm | 3/4" | 3/4" | 138.0 MPa |
| 199501943 | MP male to MP male adapter | 204 Nm | 1" | 1" | 138.0 MPa |
| 199501944 | MP plug | - Nm | 1/4 | - | 138.0 MPa |
| 199501945 | MP plug | - Nm | 3/8" | - | 138.0 MPa |
| 199501946 | MP plug | - Nm | 9/16" | - | 138.0 MPa |
| 199501947 | MP plug | - Nm | 3/4" | - | 138.0 MPa |
| 199501948 | MP plug | - Nm | 1" | - | 138.0 MPa |
