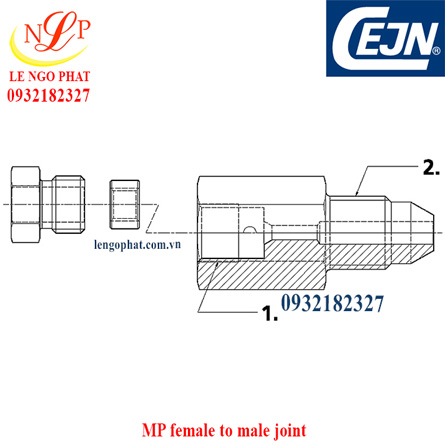

MP female to male joint
MP Adapters, Stainless Steel
MP (Max 20k PSI)Adapters
Industry standard adapters for tube sizes from 1/4" to 1". Manufactured from cold drawn, NACE certified, AISI 316L / EN1.4404 stainless steel for maximum life.
| MP Adapters, Stainless Steel (Max 20k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199501930 | MP female to male joint | conn.1: 27 conn.2: 41 Nm | 1/4" | 3/8" | 138.0 MPa |
| 199501931 | MP female to male joint | conn.1: 27 conn.2: 75 Nm | 1/4" | 9/16" | 138.0 MPa |
| 199501932 | MP female to male joint | conn.1 :41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501933 | MP female to male joint | conn.1: 75 conn.2: 75 Nm | 9/16" | 3/8" | 138.0 MPa |
| 199501934 | MP female to male joint | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501935 | MP female to male joint | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| MP Adapters, Stainless Steel (Max 20k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199501930 | MP female to male joint | conn.1: 27 conn.2: 41 Nm | 1/4" | 3/8" | 138.0 MPa |
| 199501931 | MP female to male joint | conn.1: 27 conn.2: 75 Nm | 1/4" | 9/16" | 138.0 MPa |
| 199501932 | MP female to male joint | conn.1 :41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501933 | MP female to male joint | conn.1: 75 conn.2: 75 Nm | 9/16" | 3/8" | 138.0 MPa |
| 199501934 | MP female to male joint | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501935 | MP female to male joint | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
| MP Adapters, Stainless Steel (Max 20k PSI) | |||||
| Part No. | Category | Rec. torque (Nm) | Connection 1 | Connection 2 | Max working pressure |
| 199501930 | MP female to male joint | conn.1: 27 conn.2: 41 Nm | 1/4" | 3/8" | 138.0 MPa |
| 199501931 | MP female to male joint | conn.1: 27 conn.2: 75 Nm | 1/4" | 9/16" | 138.0 MPa |
| 199501932 | MP female to male joint | conn.1 :41 conn.2: 75 Nm | 3/8" | 9/16" | 138.0 MPa |
| 199501933 | MP female to male joint | conn.1: 75 conn.2: 75 Nm | 9/16" | 3/8" | 138.0 MPa |
| 199501934 | MP female to male joint | conn.1: 75 conn.2: 123 Nm | 9/16" | 3/4" | 138.0 MPa |
| 199501935 | MP female to male joint | conn.1: 75 conn.2: 204 Nm | 9/16" | 1" | 138.0 MPa |
