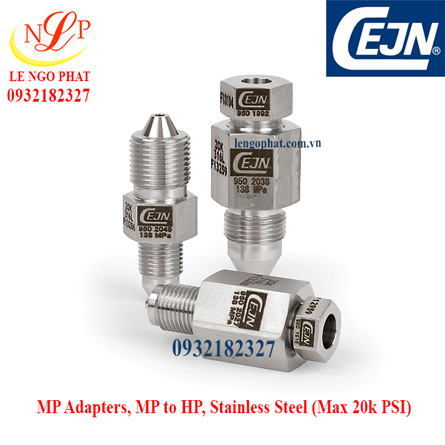

MP Adapters, MP to HP, Stainless Steel

MP (Max 20k PSI)Adapters

Adapters for MP and HP tubes from 1/4" to 9/16". Standard 60° cone type sealing with UNF threads. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: MP male to HP male

Model: 199502041, 199502042, 199502043, 199502044, 199502045, 199502046, 199502047, 199502048, 199502049

MP Adapters, MP to HP, Stainless Steel (Max 20k PSI)

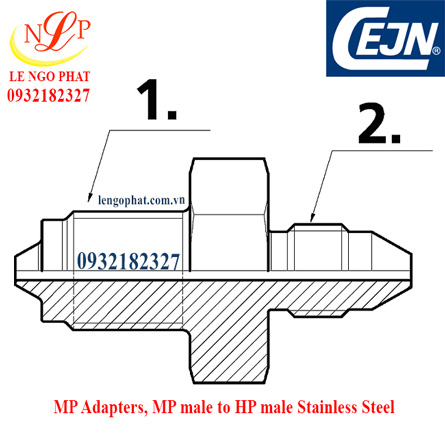

Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502041	MP male to HP male	conn.1: 27 conn.2: 34 Nm	1/4" MP	1/4" HP	138.0 MPa
199502042	MP male to HP male	conn.1: 41 conn.2: 34 Nm	3/8" MP	1/4" HP	138.0 MPa
199502043	MP male to HP male	conn.1: 75 conn.2: 34 Nm	9/16" MP	1/4" HP	138.0 MPa
199502044	MP male to HP male	conn.1: 27 conn.2: 68 Nm	1/4" MP	3/8" HP	138.0 MPa
199502045	MP male to HP male	conn.1: 41 conn.2: 68 Nm	3/8" MP	3/8" HP	138.0 MPa
199502046	MP male to HP male	conn.1: 75 conn.2: 68 Nm	9/16" MP	3/8" HP	138.0 MPa
199502047	MP male to HP male	conn.1: 41 conn.2: 150 Nm	3/8" MP	9/16" HP	138.0 MPa
199502048	MP male to HP male	conn.1: 75 conn.2: 150 Nm	9/16" MP	9/16" HP	138.0 MPa
199502049	MP male to HP male	conn.1: 123 conn.2: 150 Nm	3/4" MP	9/16" HP	138.0 MPa
