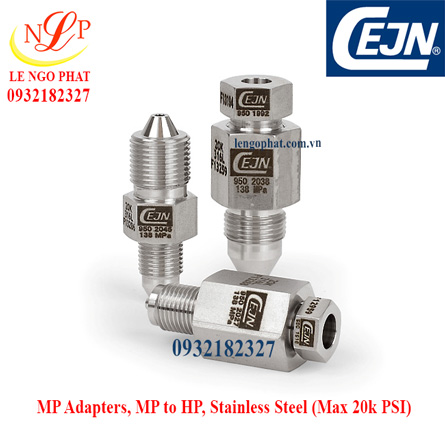

MP Adapters, MP male to HP female Stainless Steel

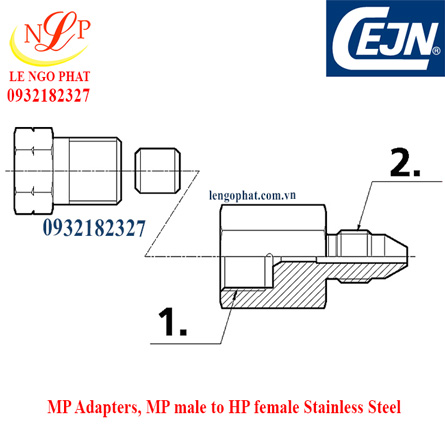

MP Adapters, MP male to HP female Stainless Steel

MP Adapters, MP to HP, Stainless Steel

MP (Max 20k PSI)Adapters

Adapters for MP and HP tubes from 1/4" to 9/16". Standard 60° cone type sealing with UNF threads. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: MP male to HP female

Model: 199502033, 199502034, 199502035, 199502036, 199502037, 199502038, 199502039, 199502040

MP Adapters, MP to HP, Stainless Steel (Max 20k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502033	MP male to HP female	conn.1: 27 conn.2: 34 Nm	1/4" MP	1/4" HP	138.0 MPa
199502034	MP male to HP female	conn.1: 41 conn.2: 34 Nm	3/8" MP	1/4" HP	138.0 MPa
199502035	MP male to HP female	conn.1: 75 conn.2: 34 Nm	9/16" MP	1/4" HP	138.0 MPa
199502036	MP male to HP female	conn.1: 27 conn.2: 68 Nm	1/4" MP	3/8" HP	138.0 MPa
199502037	MP male to HP female	conn.1: 41 conn.2: 68 Nm	3/8" MP	3/8" HP	138.0 MPa
199502038	MP male to HP female	conn.1: 75 conn.2: 68 Nm	9/16" MP	3/8" HP	138.0 MPa
199502039	MP male to HP female	conn.1: 41 conn.2: 150 Nm	3/8" MP	9/16" HP	138.0 MPa
199502040	MP male to HP female	conn.1: 75 conn.2: 150 Nm	9/16" MP	9/16" HP	138.0 MPa
