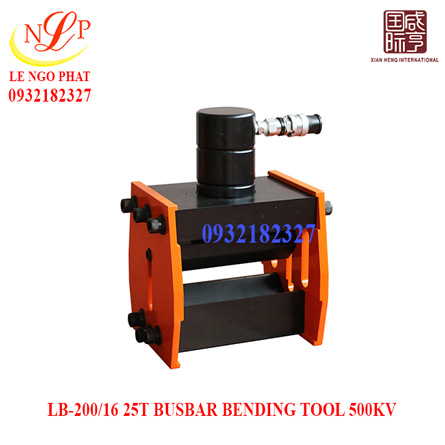

LB-200/16 25T BUSBAR BENDING TOOL 500KV

Model: LB-200/16

Output Force: 25T

Rated Pressure: 700bar

Bending Thickness: Max. 16mm

Bending Width: Max. 200mm

Weight: 33kg

Packing: Steel Case

Giá: 0932182327

Mã sản phẩm: LB-200/16

Model: LB-200/16 25T BUSBAR BENDING TOOL 500KV * Mô tả :

Technical Data:

Model	LB-200/16
Output Force	25T
Rated Pressure	700bar
Bending Thickness	Max. 16mm
Bending Width	Max. 200mm
Weight	33kg
Packing	Steel Case

Features:
1.Used to bend Cu and al busbar.
2.With scale to shoe bending angle; Max. bending angle 90°.
3.Finished bending surface smooth without wrinkle.
4.Quick coupler for easy disassembly.
5.Powered by single acting hydraulic pump.
6.Bend Cu and al busbar over 500KV.
7.Integral hydraulic system structure, oil inlet and return fast.

Technical Data:

Model	LB-200/16
Output Force	25T
Rated Pressure	700bar
Bending Thickness	Max. 16mm
Bending Width	Max. 200mm
Weight	33kg
Packing	Steel Case

Technical Data:

Model	LB-200/16
Output Force	25T
Rated Pressure	700bar
Bending Thickness	Max. 16mm
Bending Width	Max. 200mm
Weight	33kg
Packing	Steel Case
