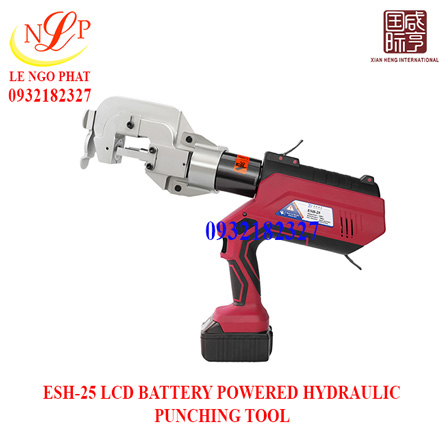

ESH-25 LCD BATTERY POWERED HYDRAULIC PUNCHING TOOL

ESH-25 LCD BATTERY POWERED HYDRAULIC PUNCHING TOOL

Model: ESH-25

Output Force: 12T

Rated Pressure: 700bar

Max. Thickness: Angle steel 6mm, Cu/Al 6.5mm

Throat depth: 25mm

Standard: Punching dies 10.5,13.5,17.5mm

Weight: 10kg

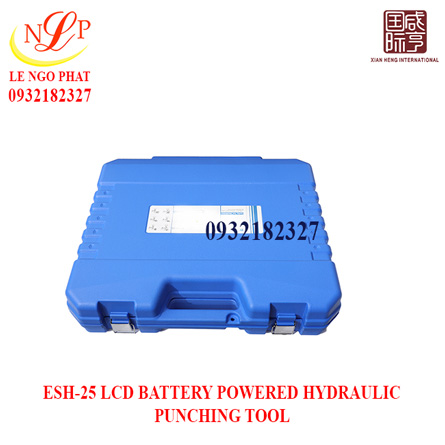

Packing: Plastic case

Optional punching dies: Punching dies below 17.5mm

Giá: 0932182327

Mã sản phẩm: ESH-25

Model: ESH-25

Technical Data:

Model	ESH-25
Output Force	12T
Rated Pressure	700bar
Max. Thickness	Angle steel 6mm, Cu/Al 6.5mm
Throat depth	25mm
Standard	Punching dies 10.5,13.5,17.5mm
Weight	10kg
Packing	Plastic case
Optional punching dies	Punching dies below 17.5mm

Features:
1. Built-in microchip controller, easy to read and record use of information, automatic pressure relief, two-stage hydraulic system.

2. High capacity 18V lithium battery with power display, with fast charger.
3. LED working light for dark place.
4. External LCD screen, easy to read the number of punching.
5. Housing and carrying case are made of environmental-friendly PP material, integral molding, compression and drop resistance.

Technical Data:

Model	ESH-25
Output Force	12T
Rated Pressure	700bar
Max. Thickness	Angle steel 6mm, Cu/Al 6.5mm
Throat depth	25mm
Standard	Punching dies 10.5,13.5,17.5mm
Weight	10kg
Packing	Plastic case
Optional punching dies	Punching dies below 17.5mm

Features:
1. Built-in microchip controller, easy to read and record use of information, automatic pressure relief, two-stage hydraulic system.

Technical Data:

Model	ESH-25
Output Force	12T
Rated Pressure	700bar
Max. Thickness	Angle steel 6mm, Cu/Al 6.5mm
Throat depth	25mm
Standard	Punching dies 10.5,13.5,17.5mm
Weight	10kg
Packing	Plastic case
Optional punching dies	Punching dies below 17.5mm
