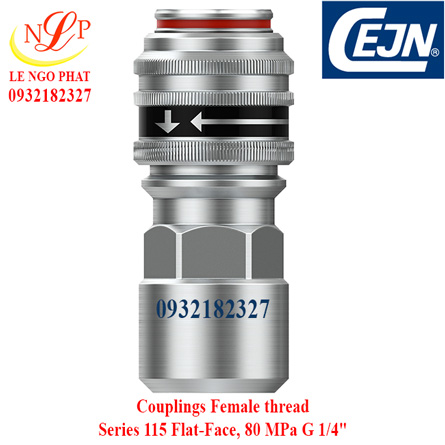

Couplings Female thread Series 115 Flat-Face, 80 MPa G 1/4"

Series 115 Flat-Face, 80 MPa

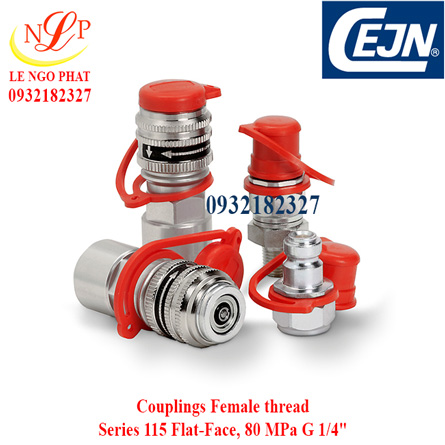

CEJN Series 115 offers a Flat-Face design and a patented auto-lock function. The couplings are light in weight with an aluminum back part, making the series ideal for applications in which lightweight components are a requirement. Series 115 is recommended primarily for rescue equipment, torque tools and cable cutters. A standard version is also available.

Giá: 0932182327

Mã sản phẩm: 101151200

Model: 101151200

Category Couplings
Description Class Female thread
Remark rubber metal seal included
Connection G 1/4"
Length 73.9 mm
Diameter 31 mm
Hexagon 24 mm
Rec. torque (Nm) 70-80 Nm
Rec. seal. method T2*



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.3 l/min (1.2 GPM UK)
Max. working pressure 80 MPa
Min. burst pressure 280 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity measured at 0.4 MPa pressure drop.

*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.

Series 115 Flat-Face, 80 MPa

Oil Flow

x: Flow, l/min. (GPM UK)
y: Pressure drop, MPa

Category Couplings
Description Class Female thread
Remark rubber metal seal included
Connection G 1/4"
Length 73.9 mm
Diameter 31 mm
Hexagon 24 mm
Rec. torque (Nm) 70-80 Nm
Rec. seal. method T2*



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.3 l/min (1.2 GPM UK)
Max. working pressure 80 MPa
Min. burst pressure 280 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc chromate plated steel
Material nipple Hardened, zinc chromate plated steel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity measured at 0.4 MPa pressure drop.

*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= cupper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.
