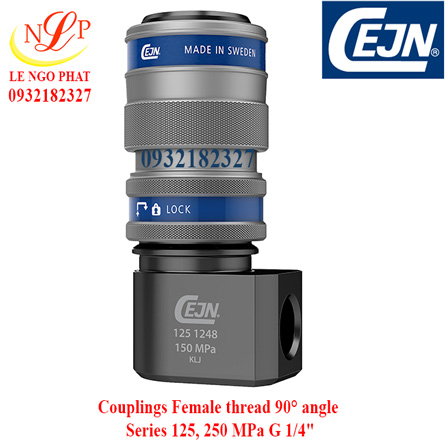

Couplings Female thread 90° angle Series 125, 250 MPa G 1/4"

Series 125, 250 MPa

A CEJN original that customers have relied on for over 40 years, Series 125 features extremely small outside dimensions and a patented seal design. The series is a dependable performer on bolt tensioners, bearing pullers and other applications. Non-Drip connection and disconnection are standard, as are plastic dust caps that extend the service life of the entire hydraulic system. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. All exposed components are made of zinc-plated steel

Giá: 0932182327

Mã sản phẩm: 101251248

Model: 101251248

Category Couplings
Description Class Female thread with 90° angle
Remark 90°
Connection G 1/4"
Length 73.8 mm
Diameter 30 mm
Hexagon 26 mm
Rec. torque (Nm) 40-50 Nm
Rec. seal. method CMS*



Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.8 l/min (1.3 GPM UK)
Max. working pressure 250 MPa
Min. burst pressure 500 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened steel, zinc-nickel, zinc-iron
Material nipple Hardened steel, zinc-nickel
Material seal Nitrile (NBR) other sealing materials on request

Flow capacity is measured at 0.4 MPa pressure drop.

*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= copper washer (09 950 4600).
Check with an authorized CEJN distributor for availability and prices. Other connections and sealing material on request. Some part numbers may be subject to minimum order quantities. CEJN reserves the right to make changes without further notification. Thread connections are listed according to ISO Standards. All measurements are in mm.

Series 125, 250 MPa

Oil Flow

x: Flow, l/min. (GPM UK)
y: Pressure drop, MPa
