Collar HP Collar and Gland Nuts Stainless Steel 60k psi

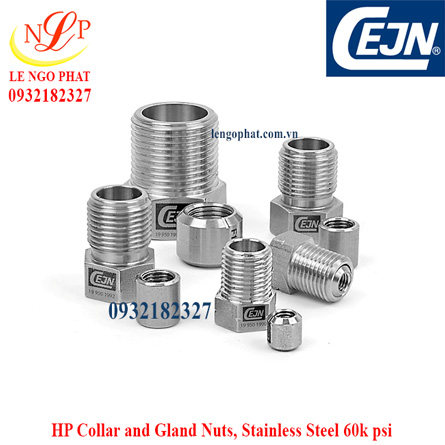

HP Collar and Gland Nuts, Stainless Steel
HP (Over 20k to 60k PSI)Collar and Gland Nuts
Additional collar and gland nuts are available. Suitable for CEJN’s hose tube fittings with left hand threads.
| HP Collar and Gland Nuts, Stainless Steel (Over 20k to 60k PSI) | ||||||
| Part No. | Category | Description Class | Tube size | Rec. torque (Nm) | Comment | Max working pressure |

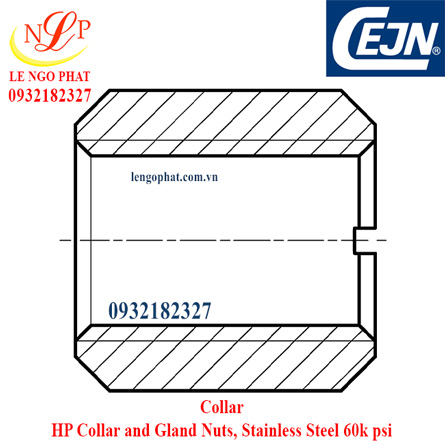

| 199501994 | Collar | Tube size 1/8" | 1/8" (3.42 mm) | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199501995 | Collar | Tube size 1/4" | 6.35 mm (1/4") | - | 60045 PSI (414.0 MPa) | |
| 199501996 | Collar | Tube size 3/8" | 9.52 mm (3/8") | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199501997 | Collar | Tube size 9/16" | 14.30 mm (9/16") | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199502290 | G (BSPP) gland nut | Tube size 3/8". Thread G 1/2" | 3/8" (9.52 mm) | 65 Nm | G 1/2" | 60045 PSI (414.0 MPa) |
| 199501990 | Gland nut | Tube size 1/8" Thread 1/2" - 20UNF | 1/8" (3.42 mm) | 20 Nm | 1/2" - 20UNF | 60045 PSI (414.0 MPa) |
| 199501991 | Gland nut | Tube size 1/4" Thread 9/16" - 18UNF | 6.35 mm (1/4") | 60045 PSI (414.0 MPa) | ||
| 199501992 | Gland nut | Tube size 3/8" Thread 3/4" - 16UNF | 9.52 mm (3/8") | 68 Nm | 3/4" - 16 UNF | 60045 PSI (414.0 MPa) |
| 199501993 | Gland nut | Tube size 9/16" Thread 1 1/8"-12UNF | 14.30 mm (9/16") | 150 Nm | 1 1/8" - 12 UNF | 60045 PSI (414.0 MPa) |
| 199502260 | Metric gland nut | Tube size 1/4". Thread M16 x 1.5 | 1/4" (6.35 mm) | 34 Nm | M16 x 1.5 | 60045 PSI (414.0 MPa) |
| 199502261 | Metric gland nut | Tube size 3/8". Thread M20 x 1.5 | 3/8" (9.52 mm) | 68 Nm | M20 x 1.5 | 60045 PSI (414.0 MPa) |
| 199502262 | Metric gland nut | Tube size 9/16". Thread M26 x 1.5 | 9/16" (14.40 mm) | 150 Nm | M26 x 1.5 | 60045 PSI (414.0 MPa) |
| HP Collar and Gland Nuts, Stainless Steel (Over 20k to 60k PSI) | ||||||
| Part No. | Category | Description Class | Tube size | Rec. torque (Nm) | Comment | Max working pressure |
| 199501994 | Collar | Tube size 1/8" | 1/8" (3.42 mm) | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199501995 | Collar | Tube size 1/4" | 6.35 mm (1/4") | - | 60045 PSI (414.0 MPa) | |
| 199501996 | Collar | Tube size 3/8" | 9.52 mm (3/8") | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199501997 | Collar | Tube size 9/16" | 14.30 mm (9/16") | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199502290 | G (BSPP) gland nut | Tube size 3/8". Thread G 1/2" | 3/8" (9.52 mm) | 65 Nm | G 1/2" | 60045 PSI (414.0 MPa) |
| 199501990 | Gland nut | Tube size 1/8" Thread 1/2" - 20UNF | 1/8" (3.42 mm) | 20 Nm | 1/2" - 20UNF | 60045 PSI (414.0 MPa) |
| 199501991 | Gland nut | Tube size 1/4" Thread 9/16" - 18UNF | 6.35 mm (1/4") | 60045 PSI (414.0 MPa) | ||
| 199501992 | Gland nut | Tube size 3/8" Thread 3/4" - 16UNF | 9.52 mm (3/8") | 68 Nm | 3/4" - 16 UNF | 60045 PSI (414.0 MPa) |
| 199501993 | Gland nut | Tube size 9/16" Thread 1 1/8"-12UNF | 14.30 mm (9/16") | 150 Nm | 1 1/8" - 12 UNF | 60045 PSI (414.0 MPa) |
| 199502260 | Metric gland nut | Tube size 1/4". Thread M16 x 1.5 | 1/4" (6.35 mm) | 34 Nm | M16 x 1.5 | 60045 PSI (414.0 MPa) |
| 199502261 | Metric gland nut | Tube size 3/8". Thread M20 x 1.5 | 3/8" (9.52 mm) | 68 Nm | M20 x 1.5 | 60045 PSI (414.0 MPa) |
| 199502262 | Metric gland nut | Tube size 9/16". Thread M26 x 1.5 | 9/16" (14.40 mm) | 150 Nm | M26 x 1.5 | 60045 PSI (414.0 MPa) |
| HP Collar and Gland Nuts, Stainless Steel (Over 20k to 60k PSI) | ||||||
| Part No. | Category | Description Class | Tube size | Rec. torque (Nm) | Comment | Max working pressure |
| 199501994 | Collar | Tube size 1/8" | 1/8" (3.42 mm) | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199501995 | Collar | Tube size 1/4" | 6.35 mm (1/4") | - | 60045 PSI (414.0 MPa) | |
| 199501996 | Collar | Tube size 3/8" | 9.52 mm (3/8") | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199501997 | Collar | Tube size 9/16" | 14.30 mm (9/16") | - | Left hand thread | 60045 PSI (414.0 MPa) |
| 199502290 | G (BSPP) gland nut | Tube size 3/8". Thread G 1/2" | 3/8" (9.52 mm) | 65 Nm | G 1/2" | 60045 PSI (414.0 MPa) |
| 199501990 | Gland nut | Tube size 1/8" Thread 1/2" - 20UNF | 1/8" (3.42 mm) | 20 Nm | 1/2" - 20UNF | 60045 PSI (414.0 MPa) |
| 199501991 | Gland nut | Tube size 1/4" Thread 9/16" - 18UNF | 6.35 mm (1/4") | 60045 PSI (414.0 MPa) | ||
| 199501992 | Gland nut | Tube size 3/8" Thread 3/4" - 16UNF | 9.52 mm (3/8") | 68 Nm | 3/4" - 16 UNF | 60045 PSI (414.0 MPa) |
| 199501993 | Gland nut | Tube size 9/16" Thread 1 1/8"-12UNF | 14.30 mm (9/16") | 150 Nm | 1 1/8" - 12 UNF | 60045 PSI (414.0 MPa) |
| 199502260 | Metric gland nut | Tube size 1/4". Thread M16 x 1.5 | 1/4" (6.35 mm) | 34 Nm | M16 x 1.5 | 60045 PSI (414.0 MPa) |
| 199502261 | Metric gland nut | Tube size 3/8". Thread M20 x 1.5 | 3/8" (9.52 mm) | 68 Nm | M20 x 1.5 | 60045 PSI (414.0 MPa) |
| 199502262 | Metric gland nut | Tube size 9/16". Thread M26 x 1.5 | 9/16" (14.40 mm) | 150 Nm | M26 x 1.5 | 60045 PSI (414.0 MPa) |
