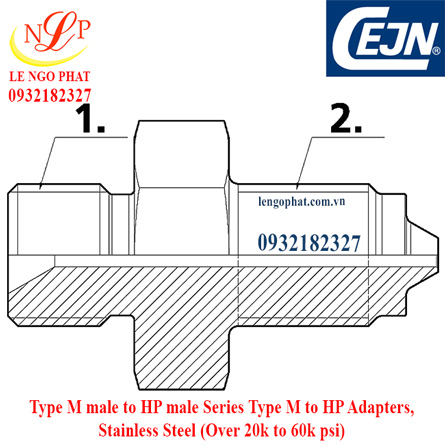

Type M male to HP male Series Type M to HP Adapters Stainless Steel

Type M to HP Adapters, Stainless Steel

HP (Over 20k to 60k PSI)Adapters

Males threaded adapters with type M from 9/16" to 1-5/16" and HP from 1/4" to 1". Standard 60° cone type sealing with UNF threads. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: Type M male to HP male

Model: 199502193, 199502194, 199502195, 199502196, 199502197, 199502198, 199502199, 199502200, 199502201, 199502202, 199502203, 199502204, 199502205

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest
Type M to HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502193 Type M male to HP male conn.1: 52 conn.2: 34 Nm 9/16" - 18 UNF type M 1/4" HP 345.0 MPa
199502194 Type M male to HP male conn.1: 52 conn.2: 68 Nm 9/16" - 18 UNF type M 3/8" HP 345.0 MPa
199502195 Type M male to HP male conn.1: 52 conn.2: 150 Nm 9/16" - 18 UNF type M 9/16" HP 345.0 MPa
199502196 Type M male to HP male conn.1: 81 conn.2: 34 Nm 3/4" - 16 UNF type M 1/4" HP 345.0 MPa
199502197 Type M male to HP male conn.1: 81 conn.2: 68 Nm 3/4" - 16 UNF type M 3/8" HP 345.0 MPa
199502198 Type M male to HP male conn.1: 81 conn.2: 150 Nm 3/4" - 16 UNF type M 9/16" HP 345.0 MPa
199502199 Type M male to HP male conn.1: 109 conn.2: 68 Nm 7/8" - 14 UNF type M 3/8" HP 345.0 MPa
199502200 Type M male to HP male conn.1: 109 conn.2: 150 Nm 7/8" - 14 UNF type M 9/16" HP 345.0 MPa
199502201 Type M male to HP male conn.1: 135 conn.2: 68 Nm 1" - 12 UNF type M 3/8" HP 345.0 MPa
199502202 Type M male to HP male conn.1: 135 conn.2: 150 Nm 1" - 12 UNF type M 9/16" HP 345.0 MPa
199502203 Type M male to HP male conn.1: 135 conn.2: 300 Nm 1" - 12 UNF type M 1" HP 345.0 MPa
199502204 Type M male to HP male conn.1: 150 conn.2: 150 Nm 1 1/8" - 12 UNF type M 9/16" HP 345.0 MPa
199502205 Type M male to HP male conn.1: 203 conn.2: 150 Nm 1-5/16" -12 UNF type M 9/16" HP 345.0 MPa
Type M to HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502193 Type M male to HP male conn.1: 52 conn.2: 34 Nm 9/16" - 18 UNF type M 1/4" HP 345.0 MPa
199502194 Type M male to HP male conn.1: 52 conn.2: 68 Nm 9/16" - 18 UNF type M 3/8" HP 345.0 MPa
199502195 Type M male to HP male conn.1: 52 conn.2: 150 Nm 9/16" - 18 UNF type M 9/16" HP 345.0 MPa
199502196 Type M male to HP male conn.1: 81 conn.2: 34 Nm 3/4" - 16 UNF type M 1/4" HP 345.0 MPa
199502197 Type M male to HP male conn.1: 81 conn.2: 68 Nm 3/4" - 16 UNF type M 3/8" HP 345.0 MPa
199502198 Type M male to HP male conn.1: 81 conn.2: 150 Nm 3/4" - 16 UNF type M 9/16" HP 345.0 MPa
199502199 Type M male to HP male conn.1: 109 conn.2: 68 Nm 7/8" - 14 UNF type M 3/8" HP 345.0 MPa
199502200 Type M male to HP male conn.1: 109 conn.2: 150 Nm 7/8" - 14 UNF type M 9/16" HP 345.0 MPa
199502201 Type M male to HP male conn.1: 135 conn.2: 68 Nm 1" - 12 UNF type M 3/8" HP 345.0 MPa
199502202 Type M male to HP male conn.1: 135 conn.2: 150 Nm 1" - 12 UNF type M 9/16" HP 345.0 MPa
199502203 Type M male to HP male conn.1: 135 conn.2: 300 Nm 1" - 12 UNF type M 1" HP 345.0 MPa
199502204 Type M male to HP male conn.1: 150 conn.2: 150 Nm 1 1/8" - 12 UNF type M 9/16" HP 345.0 MPa
199502205 Type M male to HP male conn.1: 203 conn.2: 150 Nm 1-5/16" -12 UNF type M 9/16" HP 345.0 MPa
Type M to HP Adapters, Stainless Steel (Over 20k to 60k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502193 Type M male to HP male conn.1: 52 conn.2: 34 Nm 9/16" - 18 UNF type M 1/4" HP 345.0 MPa
199502194 Type M male to HP male conn.1: 52 conn.2: 68 Nm 9/16" - 18 UNF type M 3/8" HP 345.0 MPa
199502195 Type M male to HP male conn.1: 52 conn.2: 150 Nm 9/16" - 18 UNF type M 9/16" HP 345.0 MPa
199502196 Type M male to HP male conn.1: 81 conn.2: 34 Nm 3/4" - 16 UNF type M 1/4" HP 345.0 MPa
199502197 Type M male to HP male conn.1: 81 conn.2: 68 Nm 3/4" - 16 UNF type M 3/8" HP 345.0 MPa
199502198 Type M male to HP male conn.1: 81 conn.2: 150 Nm 3/4" - 16 UNF type M 9/16" HP 345.0 MPa
199502199 Type M male to HP male conn.1: 109 conn.2: 68 Nm 7/8" - 14 UNF type M 3/8" HP 345.0 MPa
199502200 Type M male to HP male conn.1: 109 conn.2: 150 Nm 7/8" - 14 UNF type M 9/16" HP 345.0 MPa
199502201 Type M male to HP male conn.1: 135 conn.2: 68 Nm 1" - 12 UNF type M 3/8" HP 345.0 MPa
199502202 Type M male to HP male conn.1: 135 conn.2: 150 Nm 1" - 12 UNF type M 9/16" HP 345.0 MPa
199502203 Type M male to HP male conn.1: 135 conn.2: 300 Nm 1" - 12 UNF type M 1" HP 345.0 MPa
199502204 Type M male to HP male conn.1: 150 conn.2: 150 Nm 1 1/8" - 12 UNF type M 9/16" HP 345.0 MPa
199502205 Type M male to HP male conn.1: 203 conn.2: 150 Nm 1-5/16" -12 UNF type M 9/16" HP 345.0 MPa
