Torque grip TG

Torque grip

It's most suitable for chip installation of a machine tool!
The torque management simple appropriately is possible by the click sense transmitted to a hand.
7 sizes of tightening torque is lined up separately.

The Nm specification

Giá: 0932182327

Mã sản phẩm: Torque grip TG

Model: Torque grip TG

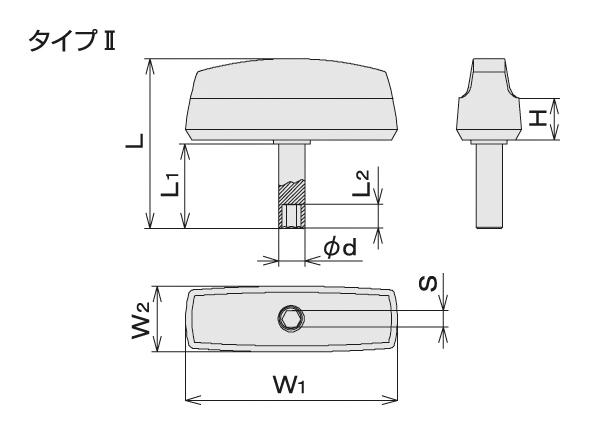

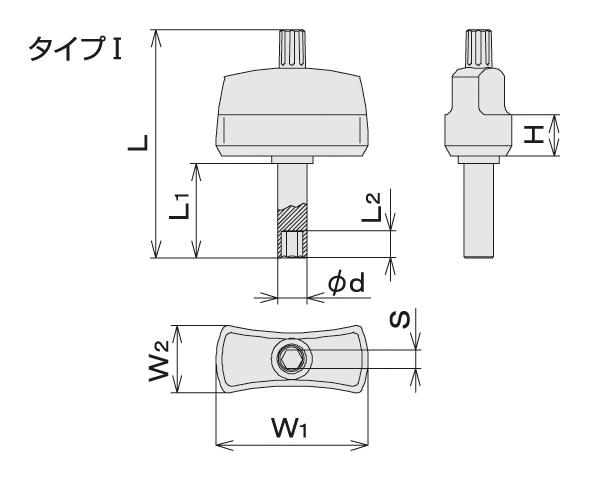

Models	Minimum torque capacity (N m)	The upper limit torque capacity (N m)	Measurement accuracy (the %)	Across flat (mm)S	dimensions (mm) φ d	dimensions (mm)H	dimensions (mm)L	dimensions (mm)L1	dimensions (mm)L2	dimensions (mm)W1	dimensions (mm)W2	Qty./Carton	weight (g)	MSRP in JP
TG0.6	0.6	0.6	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG0.9	0.9	0.9	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG1.2	1.2	1.2	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG1.4	1.4	1.4	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG2	2	2	± 10.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG3	3	3	± 10.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG5	5	5	± 10.	6.35	10	16	64.5	32	9	81	25	6	65	\3,200

※ The bit doesn't attach, so please buy separately.

※ The numerical value of the unit shown to a grip [kgcm] [InIb] [Ftoz] is reduced value of Nm.

※ TORX, TORX PLUS, Torx and a Torx plus are USA Acument Intellectual Properties LLC. Trademark registration of company.

※ It's clicked in torque set beforehand only at the time of right-hand twist use.

Models	Minimum torque capacity (N m)	The upper limit torque capacity (N m)	Measurement accuracy (the %)	Across flat (mm)S	dimensions (mm) φ d	dimensions (mm)H	dimensions (mm)L	dimensions (mm)L1	dimensions (mm)L2	dimensions (mm)W1	dimensions (mm)W2	Qty./Carton	weight (g)	MSRP in JP
TG0.6	0.6	0.6	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG0.9	0.9	0.9	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG1.2	1.2	1.2	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG1.4	1.4	1.4	± 15.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG2	2	2	± 10.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG3	3	3	± 10.	6.35	10	14	77.5	32	9	52	23	6	48	\2,650
TG5	5	5	± 10.	6.35	10	16	64.5	32	9	81	25	6	65	\3,200

※ The bit doesn't attach, so please buy separately.

※ The numerical value of the unit shown to a grip [kgcm] [InIb] [Ftoz] is reduced value of Nm.

※ TORX, TORX PLUS, Torx and a Torx plus are USA Acument Intellectual Properties LLC. Trademark registration of company.

※ It's clicked in torque set beforehand only at the time of right-hand twist use.
