CÔNG TY TNHH LÊ NGÔ PHÁT

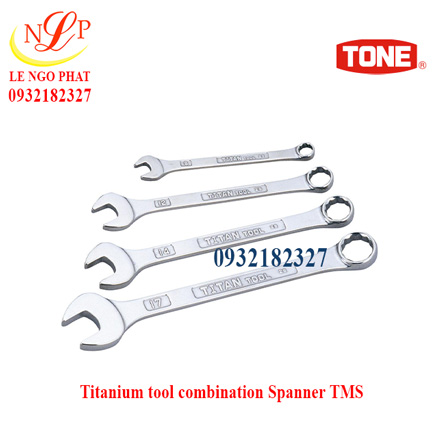

Titanium tool combination Spanner TMS
Titanium tool combination Spanner
- Titanium alloy
It's titanium alloy combination Spanner of about 60 % of lightness of the items (steel) in the past (the ratio of our company).
When it's difficult to rust, it's more excellent in corrosion resistance more than called stainless steel and copper alloy.
Enough corrosion resistance is also shown to low concentration medicine.
It's non-magnetism, so the work which isn't influenced by a magnetic field in the magnetic field can be done, and I don't become magnetized, so I don't have a bad influence on electronic machine kinds.
JIS combination Spanner was cleared for the strength.

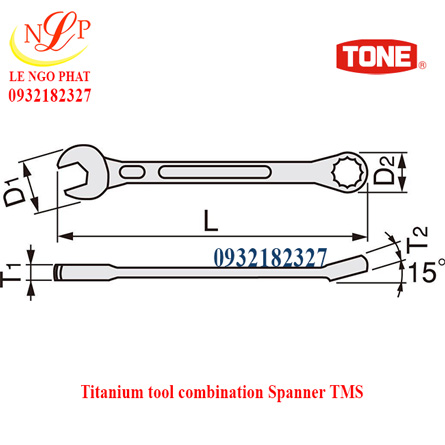

| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| TMS-08 | 8 x 8 | 19.0 | 13.0 | 120 | 4.3 | 6.0 | 1 | 17 | \7,445 |
| TMS-10 | 10 x 10 | 23.0 | 15.5 | 140 | 4.5 | 6.5 | 1 | 24 | \8,715 |
| TMS-12 | 12 x 12 | 27.5 | 18.0 | 160 | 5.5 | 7.5 | 1 | 35 | \10,690 |
| TMS-13 | 13 x 13 | 29.5 | 19.0 | 171 | 6.0 | 8.0 | 1 | 46 | \11,460 |
| TMS-14 | 14 x 14 | 32.0 | 21.0 | 180 | 6.5 | 8.5 | 1 | 62 | \12,290 |
| TMS-17 | 17 x 17 | 38.5 | 25.5 | 210 | 7.5 | 9.5 | 1 | 87 | \15,290 |
| TMS-19 | 19 x 19 | 42.0 | 28.0 | 235 | 8.0 | 10.5 | 1 | 113 | \17,430 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| TMS-08 | 8 x 8 | 19.0 | 13.0 | 120 | 4.3 | 6.0 | 1 | 17 | \7,445 |
| TMS-10 | 10 x 10 | 23.0 | 15.5 | 140 | 4.5 | 6.5 | 1 | 24 | \8,715 |
| TMS-12 | 12 x 12 | 27.5 | 18.0 | 160 | 5.5 | 7.5 | 1 | 35 | \10,690 |
| TMS-13 | 13 x 13 | 29.5 | 19.0 | 171 | 6.0 | 8.0 | 1 | 46 | \11,460 |
| TMS-14 | 14 x 14 | 32.0 | 21.0 | 180 | 6.5 | 8.5 | 1 | 62 | \12,290 |
| TMS-17 | 17 x 17 | 38.5 | 25.5 | 210 | 7.5 | 9.5 | 1 | 87 | \15,290 |
| TMS-19 | 19 x 19 | 42.0 | 28.0 | 235 | 8.0 | 10.5 | 1 | 113 | \17,430 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| TMS-08 | 8 x 8 | 19.0 | 13.0 | 120 | 4.3 | 6.0 | 1 | 17 | \7,445 |
| TMS-10 | 10 x 10 | 23.0 | 15.5 | 140 | 4.5 | 6.5 | 1 | 24 | \8,715 |
| TMS-12 | 12 x 12 | 27.5 | 18.0 | 160 | 5.5 | 7.5 | 1 | 35 | \10,690 |
| TMS-13 | 13 x 13 | 29.5 | 19.0 | 171 | 6.0 | 8.0 | 1 | 46 | \11,460 |
| TMS-14 | 14 x 14 | 32.0 | 21.0 | 180 | 6.5 | 8.5 | 1 | 62 | \12,290 |
| TMS-17 | 17 x 17 | 38.5 | 25.5 | 210 | 7.5 | 9.5 | 1 | 87 | \15,290 |
| TMS-19 | 19 x 19 | 42.0 | 28.0 | 235 | 8.0 | 10.5 | 1 | 113 | \17,430 |
