Model: TCT-200C
Output Capacity: Max:5000VA
Output Current: Max:1000A*5V
Output Voltage
AC:
0-2500V·2A, 0-2000V·2A
0-1000V·5A, 0-500V·10A
0-250V·20A, 0-125V·20A
0-50V·20A, 0-15V·20A
Voltammetry test max current: 1A, 2A, 3A, 4A, 5A, 10A, 15A、20A
Primary Ammeter Range: 0-1100A
Secondary Ammeter Range: 0-6A
Secondary Load Impedance Measurement: 1A:0-10Ω @ 5A: 0-2Ω
Accuracy
Primary voltage : ±(0.005+0.2V)
Secondary voltage : ±(0.005+2 words)
Primary current: ±(0.005+0.2A)
Secondary current: ±(0.005+2 words)
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
Description:

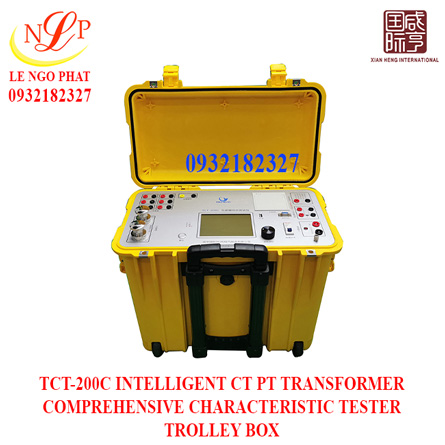

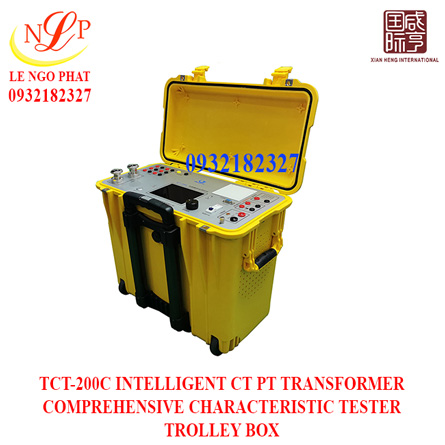

TCT-200C is the latest new generation of intelligent transformer comprehensive test product. It adopts the integrated design of the American trolley case, convenient to move on site. It integrates functions of CT volt-ampere characteristic test, PT volt-ampere characteristic test, CT transformation ratio polarity test, PT transformation ratio polarity test, secondary load test, etc. It has powerful functions, simple testing, and one-key intelligent test results. With the large output capacity, multi-function and high intelligence, it becomes an indispensable tool for transformer characteristic test of power system.
Features:
1. Appearance design: light, delicate, portable

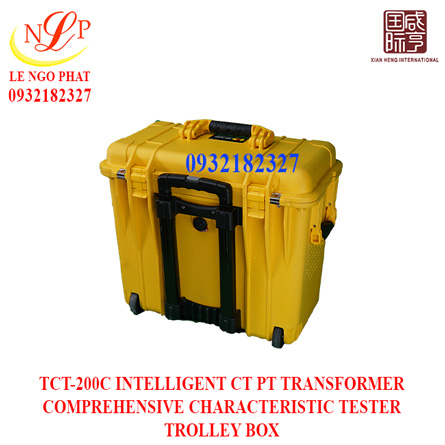

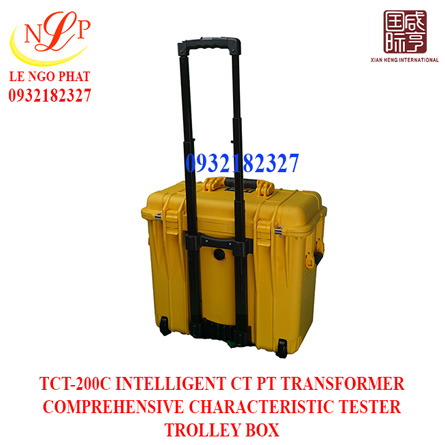

2. Portable: Adopt the United States PELICAN trolley case integrated design
3. Interface: Smart touch large LCD screen
Five innovative technologies:
1. Multiple protection, protect equipment and people
2. Fully automatic synchronous test, meet requirement of 6 groups of CT secondary winding ratio polarity tests completed at one time
3. A multi-purpose tester, compatible with the function of large current generator
4. High brightness large LCD screen, still clearly visible under strong sunlight
5. Volt-ampere test value set arbitrarily, test curves and data displayed in real time
Technical Parameter:
Appearance Design |
PELICAN trolley case, light, portable IP67 |
Screen Display |
Large high-brightness LCD screen, still clearly visible in strong sunlight |
Output Capacity |
Max:5000VA |
Output Current |
Max:1000A*5V |
Output Voltage |
AC: |
Voltammetry test max current |
1A, 2A, 3A, 4A, 5A, 10A, 15A、20A |
Primary Ammeter Range |
0-1100A |
Secondary Ammeter Range |
0-6A |
Secondary Load Impedance Measurement |
1A:0-10Ω @ 5A: 0-2Ω |
Accuracy |
Primary voltage : ±(0.005+0.2V) |
Store and Print |
Built-in thermal printer, real-time printing, real-time data storage |
Power Supply |
AC 220V 50/60Hz |
Dimension |
500*305*457mm |
Weight |
43kg |
TỪ KHÓA TÌM KIẾM: MÁY ĐO BIẾN ÁP ĐA NĂNG HTRT-10; MÁY ĐO DIỆN ÁP HLP-100, MÁY ĐO ĐIỆN ÁP HCCT-10; MÁY ĐO ĐIỆN TRỞ HZOA-20; MÁY ĐO BIẾN ÁP WDT-200, MÁY BIẾN ÁP TRT-20, MÁY ĐO TỶ LỆ BIẾN ÁP SRTR-100Pro, DÒ ĐIỆN ÁP CHỐNG LÃO HÓA
Description:
TCT-200C is the latest new generation of intelligent transformer comprehensive test product. It adopts the integrated design of the American trolley case, convenient to move on site. It integrates functions of CT volt-ampere characteristic test, PT volt-ampere characteristic test, CT transformation ratio polarity test, PT transformation ratio polarity test, secondary load test, etc. It has powerful functions, simple testing, and one-key intelligent test results. With the large output capacity, multi-function and high intelligence, it becomes an indispensable tool for transformer characteristic test of power system.
Features:
1. Appearance design: light, delicate, portable
2. Portable: Adopt the United States PELICAN trolley case integrated design
3. Interface: Smart touch large LCD screen
Five innovative technologies:
1. Multiple protection, protect equipment and people
2. Fully automatic synchronous test, meet requirement of 6 groups of CT secondary winding ratio polarity tests completed at one time
3. A multi-purpose tester, compatible with the function of large current generator
4. High brightness large LCD screen, still clearly visible under strong sunlight
5. Volt-ampere test value set arbitrarily, test curves and data displayed in real time
Technical Parameter:
Appearance Design |
PELICAN trolley case, light, portable IP67 |
Screen Display |
Large high-brightness LCD screen, still clearly visible in strong sunlight |
Output Capacity |
Max:5000VA |
Output Current |
Max:1000A*5V |
Output Voltage |
AC: |
Voltammetry test max current |
1A, 2A, 3A, 4A, 5A, 10A, 15A、20A |
Primary Ammeter Range |
0-1100A |
Secondary Ammeter Range |
0-6A |
Secondary Load Impedance Measurement |
1A:0-10Ω @ 5A: 0-2Ω |
Accuracy |
Primary voltage : ±(0.005+0.2V) |
Store and Print |
Built-in thermal printer, real-time printing, real-time data storage |
Power Supply |
AC 220V 50/60Hz |
Dimension |
500*305*457mm |
Weight |
43kg |
Description:
TCT-200C is the latest new generation of intelligent transformer comprehensive test product. It adopts the integrated design of the American trolley case, convenient to move on site. It integrates functions of CT volt-ampere characteristic test, PT volt-ampere characteristic test, CT transformation ratio polarity test, PT transformation ratio polarity test, secondary load test, etc. It has powerful functions, simple testing, and one-key intelligent test results. With the large output capacity, multi-function and high intelligence, it becomes an indispensable tool for transformer characteristic test of power system.
Features:
1. Appearance design: light, delicate, portable
2. Portable: Adopt the United States PELICAN trolley case integrated design
3. Interface: Smart touch large LCD screen
Five innovative technologies:
1. Multiple protection, protect equipment and people
2. Fully automatic synchronous test, meet requirement of 6 groups of CT secondary winding ratio polarity tests completed at one time
3. A multi-purpose tester, compatible with the function of large current generator
4. High brightness large LCD screen, still clearly visible under strong sunlight
5. Volt-ampere test value set arbitrarily, test curves and data displayed in real time
Technical Parameter:
Appearance Design |
PELICAN trolley case, light, portable IP67 |
Screen Display |
Large high-brightness LCD screen, still clearly visible in strong sunlight |
Output Capacity |
Max:5000VA |
Output Current |
Max:1000A*5V |
Output Voltage |
AC: |
Voltammetry test max current |
1A, 2A, 3A, 4A, 5A, 10A, 15A、20A |
Primary Ammeter Range |
0-1100A |
Secondary Ammeter Range |
0-6A |
Secondary Load Impedance Measurement |
1A:0-10Ω @ 5A: 0-2Ω |
Accuracy |
Primary voltage : ±(0.005+0.2V) |
Store and Print |
Built-in thermal printer, real-time printing, real-time data storage |
Power Supply |
AC 220V 50/60Hz |
Dimension |
500*305*457mm |
Weight |
43kg |
Available commodity
Certificate of Origin (CO) issued by the manufacturer accompanying the product
