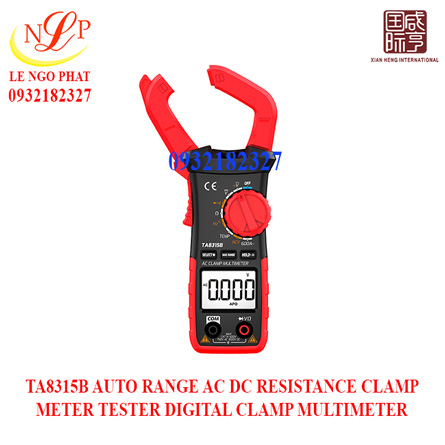

TA8315B HANDHELD NON-CONTACT MINI DIGITAL MULTIMETER AC DC CLAMP METERS TRUE-RMS

Model: TA8315B

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: TA8315B

Model: TA8315B

Technical Data:

Mode	TA8315A	TA8315B	TA8315C	TA8315D	TA8315E
DC voltage	0.1mV~1000V ±(0.5%+3)	1mV~1000V ±(0.5%+3)	1mV~1000V ±(0.5%+3)	1mV~1000V ±(0.5%+3)	0.6V~600V ±(0.5%+3)
AC voltage	1mV~750V ±(1.2%+10)	1mV~750V ±(1.2%+10)	1mV~750V ±(1.2%+10)	1mV~750V ±(1.2%+10)	0.6V~600V ±(0.8%+10)
DC current				0.1A~600A ±(1.5%+10)
AC current	0.01A~600A ±(3.0%+10)	0.01A~600A ±(3.0%+10)	0.01A~600A ±(3.0%+10)	0.1A~600A ±(3.0%+10)	15mA~600A ±(2%+30)
Resistance	0.1Ω~40MΩ ±(1.2%+8)	0.1Ω~40MΩ ±(1.2%+8)	0.1Ω~40MΩ ±(1.2%+8)	0.1Ω~40MΩ ±(1.2%+8)	0.1Ω~60MΩ ±(2.5%+3)
Capacitance			1nF~30000μF ±(5.0%+10)	1nF~30000μF ±(5.0%+10)	10nF~60000μF ±(5%+3)
Frequency Hz		10Hz~10MHz ±(0.1%+3)	10Hz~10MHz ±(0.1%+3)	10Hz~10MHz ±(0.1%+3)
Temperature		-20~1000℃ ±(1℃)	-20~1000℃ ±(1℃)	-20~1000℃ ±(1℃)
Square wave output	-	-	√	√	-
Max/min value	√	-	-	-	-
Flashlight	-	√	√	√	√
Display screen (LCD)	3999(3 3/4) digit	5999(3 5/6) digit	5999(3 5/6) digit	5999(3 5/6) digit	5999(3 5/6) digit
General Characteristic
NCV measurement	√
True rms	√
Backlight display	√
On-off buzz	√
Diode	√
Date hold	√
Auto shut off	√ (about 15 minutes)
Measurement method	Double Integral A/D Conversion
Low battery indicate	√
Rate adopted	3 times/second
Jaw	27mm
Power Supply	2 x 1.5 AAA Battery
Product size	1766733mm
Product weight	About 300g(Containing battery)
