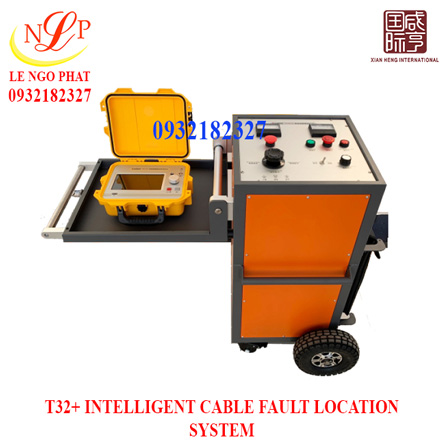

T32+ INTELLIGENT CABLE FAULT LOCATION SYSTEM

T32+ INTELLIGENT CABLE FAULT LOCATION SYSTEM

Fault location power LP30/4+

Output voltage: 0-30kv continuously adjustable

Capacitance: 4μf

Single discharge energy: 1800J

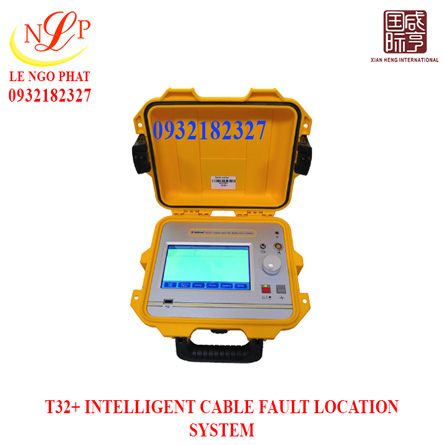

Impulse reflector/Cable fault pre-locator (TDR) WL50+

Low voltage impulse: 30V

Impulse width: 40ns-10μs

Sampling frequency: 200MHz

Error: 0.4m

Test range: 100km

Cable fault pin-pointer PP20

Precision of point positioning: 0.1m

Precision of path location: 0.1m

Precision of step voltage method: 0.1m

Available commodity

Certificate of Origin (CO) issued by the manufacturer accompanying the product

Giá: 0932182327

Mã sản phẩm: T32+

Model: T32+

Features:

Technical Data:

Fault location power LP30/4+
Output voltage	0-30kv continuously adjustable
Capacitance	4μf
Single discharge energy	1800J
Weight	90kg
Volume	380x380x790(mm)
Impulse reflector/Cable fault pre-locator (TDR) WL50+
Low voltage impulse	30V
Impulse width	40ns-10μs
Sampling frequency	200MHz
Error	0.4m
Test range	100km
Work mode	Low voltage impulse, Impulse current, Stable Arc Reflection Method
Weight	3kg
Volume	355x269x155(mm)
Cable fault pin-pointer PP20
Precision of point positioning	0.1m
Precision of path location	0.1m
Precision of step voltage method	0.1m
Work mode	Anti-noise mode: Strong noise reduction mode Background suppression noise reduction mode Point location mode: Intelligent Acousto-Magnetic Time Difference Mode
Display mode	Color LCD
Power	Li-battery, 12h standby
