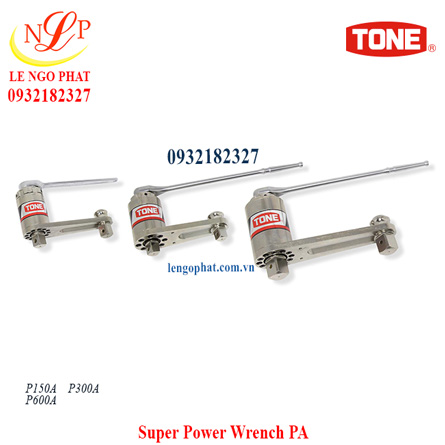

Super Power Wrench PA

Super Power Wrench

A wrench with the double power organization suitable for tightening of large bolt nut and reducing work.
It can be the small power and also output amount torque by the small operational society by the double power organization.
More workability reduced the weight of it and planned for slim& compactness-ization compared with items in the past, and improved.
[Product video ]http://youtu.be/iWRvCmvTEwk

Giá: 0932182327

Mã sản phẩm: Wrench PA

Model: Wrench PA

Models	Minimum torque capacity (N m)	The upper limit torque capacity (N m)	Input torque area (Nm)_INPUT	dimensions (mm)B	dimensions (mm)D	dimensions (mm)H	dimensions (mm)H1	dimensions (mm)L	dimensions (mm)L1	magnification	The gear ratio	carton	weight (g)	MSRP in JP
P150A	300	1500	13-65	25.4	71	122	142	235	200	23.0	25.0	1	4600	Open price
P300A	600	3000	36-180	25.4	84	138	158	242	200	16.7	18.2	1	7100	Open price
P600A	1200	6000	51-255	38.1	96	172	192	348	300	23.5	25.5	1	11700	Open price

※ All insertion corners in input part are 12.7mm.

※ weight is a total of the body, the slide system reaction arm and ratchet handle .

※ Please use "impact socket " for a socket.

※ magnification is the price which considered the efficiency in the gear ratio.

※ magnification during a top half is the approximate price. magnification changes by the individual difference in the wrenches, the use frequency and the use situation. Please check magnification at the time of newness of the product you bought in Inspection cert. . Please tell the store you buy or our business office about magnification measurement of a wrench after purchase (not free).

※ Repeat accuracy in output torque in case of a tightening outrigger is 5 % of± by the same conditions.

Accessories

Ratchet handle [ (371L) for (371L) and P600A for (371) and P300A for P150A]	1 for each.
※ The slide system reaction arm [ (600PNHS) for (300PNHS) and P600A for (150PNHS) and P300A for P150A]	1 for each.
※ (M6 for bolt [P150A with a hexagonal holex 14	(M8 for 6 ),P300Ax 20	(M8 for 4 ),P600Ax 20	6 )]
Hexagon socket wrench [P150A business (5 and 8mm), P300A business (6 and 8mm) and P600A business (6 and 10mm)]
Eye bolt [only for P300A,P600A]	2 for each.
Case	1
Inspection cert.	1
Instruction manual	1

Note:

※ The slide system reaction arm and bolt with a hexagonal hole are being loaded on the body.
※ Details of reaction arm see "reaction arm for Super Power Wrench " (Reaction arm PNHS for Super Power Wrench ), please.

Models	Minimum torque capacity (N m)	The upper limit torque capacity (N m)	Input torque area (Nm)_INPUT	dimensions (mm)B	dimensions (mm)D	dimensions (mm)H	dimensions (mm)H1	dimensions (mm)L	dimensions (mm)L1	magnification	The gear ratio	carton	weight (g)	MSRP in JP
P150A	300	1500	13-65	25.4	71	122	142	235	200	23.0	25.0	1	4600	Open price
P300A	600	3000	36-180	25.4	84	138	158	242	200	16.7	18.2	1	7100	Open price
P600A	1200	6000	51-255	38.1	96	172	192	348	300	23.5	25.5	1	11700	Open price

※ All insertion corners in input part are 12.7mm.

※ weight is a total of the body, the slide system reaction arm and ratchet handle .

※ Please use "impact socket " for a socket.

※ magnification is the price which considered the efficiency in the gear ratio.

※ Repeat accuracy in output torque in case of a tightening outrigger is 5 % of± by the same conditions.

Accessories

Ratchet handle [ (371L) for (371L) and P600A for (371) and P300A for P150A]	1 for each.
※ The slide system reaction arm [ (600PNHS) for (300PNHS) and P600A for (150PNHS) and P300A for P150A]	1 for each.
※ (M6 for bolt [P150A with a hexagonal holex 14	(M8 for 6 ),P300Ax 20	(M8 for 4 ),P600Ax 20	6 )]
Hexagon socket wrench [P150A business (5 and 8mm), P300A business (6 and 8mm) and P600A business (6 and 10mm)]
Eye bolt [only for P300A,P600A]	2 for each.
Case	1
Inspection cert.	1
Instruction manual	1

Note:

Models	Minimum torque capacity (N m)	The upper limit torque capacity (N m)	Input torque area (Nm)_INPUT	dimensions (mm)B	dimensions (mm)D	dimensions (mm)H	dimensions (mm)H1	dimensions (mm)L	dimensions (mm)L1	magnification	The gear ratio	carton	weight (g)	MSRP in JP
P150A	300	1500	13-65	25.4	71	122	142	235	200	23.0	25.0	1	4600	Open price
P300A	600	3000	36-180	25.4	84	138	158	242	200	16.7	18.2	1	7100	Open price
P600A	1200	6000	51-255	38.1	96	172	192	348	300	23.5	25.5	1	11700	Open price

※ All insertion corners in input part are 12.7mm.

※ weight is a total of the body, the slide system reaction arm and ratchet handle .

※ Please use "impact socket " for a socket.

※ magnification is the price which considered the efficiency in the gear ratio.

※ Repeat accuracy in output torque in case of a tightening outrigger is 5 % of± by the same conditions.

Accessories

Ratchet handle [ (371L) for (371L) and P600A for (371) and P300A for P150A]	1 for each.
※ The slide system reaction arm [ (600PNHS) for (300PNHS) and P600A for (150PNHS) and P300A for P150A]	1 for each.
※ (M6 for bolt [P150A with a hexagonal holex 14	(M8 for 6 ),P300Ax 20	(M8 for 4 ),P600Ax 20	6 )]
Hexagon socket wrench [P150A business (5 and 8mm), P300A business (6 and 8mm) and P600A business (6 and 10mm)]
Eye bolt [only for P300A,P600A]	2 for each.
Case	1
Inspection cert.	1
Instruction manual	1
