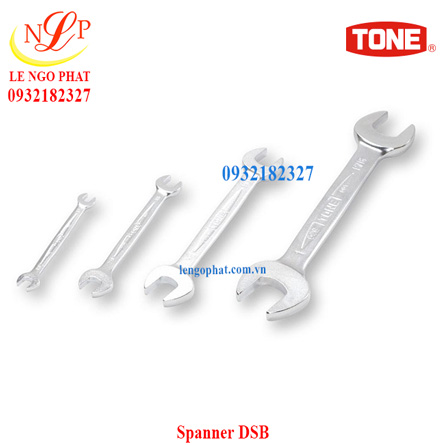

Spanner DSB
Spanner
- Inch Size
The soft curved line design matched with a hand by beautiful pear place completion.
Round and TONE which had the feature of the layout of foundation, the personal head shape.

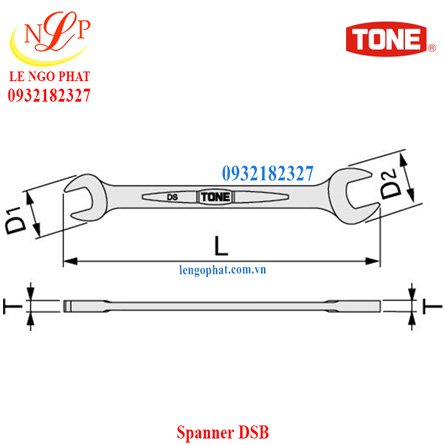

| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| DSB-0810 | 1/4 x 5/16 | 15.0 | 17.0 | 111 | 4.0 | 10 | 10 | 21 | \1,000 |
| DSB-1012 | 5/16 x 3/8 | 17.0 | 21.0 | 126 | 4.5 | 10 | 10 | 32 | \1,000 |
| DSB-1214 | 3/8 x 7/16 | 21.0 | 25.0 | 141 | 5.0 | 10 | 10 | 47 | \1,100 |
| DSB-1314 | 13/32 x 7/16 | 23.0 | 27.0 | 149 | 5.5 | 10 | 10 | 57 | \1,300 |
| DSB-1618 | 1/2 x 9/16 | 28.5 | 35.0 | 179 | 7.0 | 10 | 10 | 113 | \1,500 |
| DSB-1920 | 19/32 x 5/8 | 33.0 | 37.0 | 186 | 7.5 | 10 | 10 | 140 | \1,600 |
| DSB-2224 | 11/16 x 3/4 | 39.0 | 43.0 | 209 | 8.0 | 10 | 10 | 198 | \1,900 |
| DSB-2528 | 25/32 x 7/8 | 43.0 | 47.0 | 224 | 8.0 | 10 | 10 | 230 | \2,500 |
| DSB-3032 | 15/16 x 1 | 49.0 | 55.5 | 254 | 9.5 | 10 | 10 | 362 | \2,900 |
| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| DSB-0810 | 1/4 x 5/16 | 15.0 | 17.0 | 111 | 4.0 | 10 | 10 | 21 | \1,000 |
| DSB-1012 | 5/16 x 3/8 | 17.0 | 21.0 | 126 | 4.5 | 10 | 10 | 32 | \1,000 |
| DSB-1214 | 3/8 x 7/16 | 21.0 | 25.0 | 141 | 5.0 | 10 | 10 | 47 | \1,100 |
| DSB-1314 | 13/32 x 7/16 | 23.0 | 27.0 | 149 | 5.5 | 10 | 10 | 57 | \1,300 |
| DSB-1618 | 1/2 x 9/16 | 28.5 | 35.0 | 179 | 7.0 | 10 | 10 | 113 | \1,500 |
| DSB-1920 | 19/32 x 5/8 | 33.0 | 37.0 | 186 | 7.5 | 10 | 10 | 140 | \1,600 |
| DSB-2224 | 11/16 x 3/4 | 39.0 | 43.0 | 209 | 8.0 | 10 | 10 | 198 | \1,900 |
| DSB-2528 | 25/32 x 7/8 | 43.0 | 47.0 | 224 | 8.0 | 10 | 10 | 230 | \2,500 |
| DSB-3032 | 15/16 x 1 | 49.0 | 55.5 | 254 | 9.5 | 10 | 10 | 362 | \2,900 |
| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|
| DSB-0810 | 1/4 x 5/16 | 15.0 | 17.0 | 111 | 4.0 | 10 | 10 | 21 | \1,000 |
| DSB-1012 | 5/16 x 3/8 | 17.0 | 21.0 | 126 | 4.5 | 10 | 10 | 32 | \1,000 |
| DSB-1214 | 3/8 x 7/16 | 21.0 | 25.0 | 141 | 5.0 | 10 | 10 | 47 | \1,100 |
| DSB-1314 | 13/32 x 7/16 | 23.0 | 27.0 | 149 | 5.5 | 10 | 10 | 57 | \1,300 |
| DSB-1618 | 1/2 x 9/16 | 28.5 | 35.0 | 179 | 7.0 | 10 | 10 | 113 | \1,500 |
| DSB-1920 | 19/32 x 5/8 | 33.0 | 37.0 | 186 | 7.5 | 10 | 10 | 140 | \1,600 |
| DSB-2224 | 11/16 x 3/4 | 39.0 | 43.0 | 209 | 8.0 | 10 | 10 | 198 | \1,900 |
| DSB-2528 | 25/32 x 7/8 | 43.0 | 47.0 | 224 | 8.0 | 10 | 10 | 230 | \2,500 |
| DSB-3032 | 15/16 x 1 | 49.0 | 55.5 | 254 | 9.5 | 10 | 10 | 362 | \2,900 |
