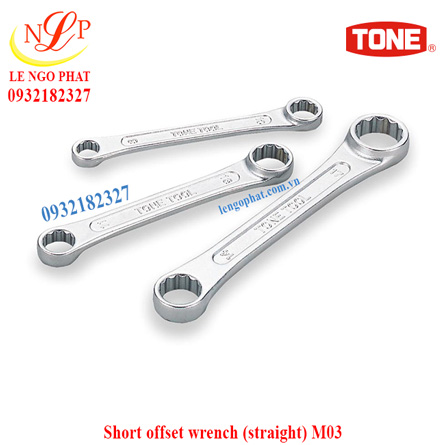

Short offset wrench (straight) M03
Short offset wrench (straight)
Small part and work space with height limit are most suitable for a small part.
The glasses parts are 12 corners, so fitting forms easily to bolt nut .

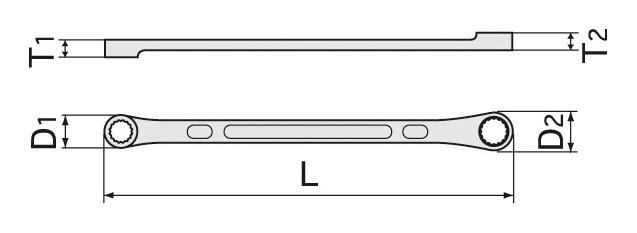

| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M03-0810 | 8 x 10 | 13.5 | 16.0 | 108 | 5.5 | 6.5 | 10 | 10 | 25 | \1,520 |
| M03-1012 | 10 x 12 | 16.0 | 18.5 | 115 | 6.5 | 7.5 | 10 | 10 | 40 | \1,570 |
| M03-1113 | 11 x 13 | 17.0 | 19.0 | 115 | 7.0 | 8.0 | 10 | 10 | 40 | \1,620 |
| M03-1214 | 12 x 14 | 18.5 | 21.0 | 130 | 7.5 | 8.5 | 10 | 10 | 60 | \1,670 |
| M03-1315 | 13 x 15 | 19.0 | 23.0 | 135 | 8.0 | 9.0 | 10 | 10 | 80 | \1,920 |
| M03-1417 | 14 x 17 | 21.0 | 25.5 | 145 | 8.5 | 9.5 | 10 | 10 | 80 | \1,920 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M03-0810 | 8 x 10 | 13.5 | 16.0 | 108 | 5.5 | 6.5 | 10 | 10 | 25 | \1,520 |
| M03-1012 | 10 x 12 | 16.0 | 18.5 | 115 | 6.5 | 7.5 | 10 | 10 | 40 | \1,570 |
| M03-1113 | 11 x 13 | 17.0 | 19.0 | 115 | 7.0 | 8.0 | 10 | 10 | 40 | \1,620 |
| M03-1214 | 12 x 14 | 18.5 | 21.0 | 130 | 7.5 | 8.5 | 10 | 10 | 60 | \1,670 |
| M03-1315 | 13 x 15 | 19.0 | 23.0 | 135 | 8.0 | 9.0 | 10 | 10 | 80 | \1,920 |
| M03-1417 | 14 x 17 | 21.0 | 25.5 | 145 | 8.5 | 9.5 | 10 | 10 | 80 | \1,920 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M03-0810 | 8 x 10 | 13.5 | 16.0 | 108 | 5.5 | 6.5 | 10 | 10 | 25 | \1,520 |
| M03-1012 | 10 x 12 | 16.0 | 18.5 | 115 | 6.5 | 7.5 | 10 | 10 | 40 | \1,570 |
| M03-1113 | 11 x 13 | 17.0 | 19.0 | 115 | 7.0 | 8.0 | 10 | 10 | 40 | \1,620 |
| M03-1214 | 12 x 14 | 18.5 | 21.0 | 130 | 7.5 | 8.5 | 10 | 10 | 60 | \1,670 |
| M03-1315 | 13 x 15 | 19.0 | 23.0 | 135 | 8.0 | 9.0 | 10 | 10 | 80 | \1,920 |
| M03-1417 | 14 x 17 | 21.0 | 25.5 | 145 | 8.5 | 9.5 | 10 | 10 | 80 | \1,920 |
