SDM BATTERY 680
SDM Battery Torque Wrenches

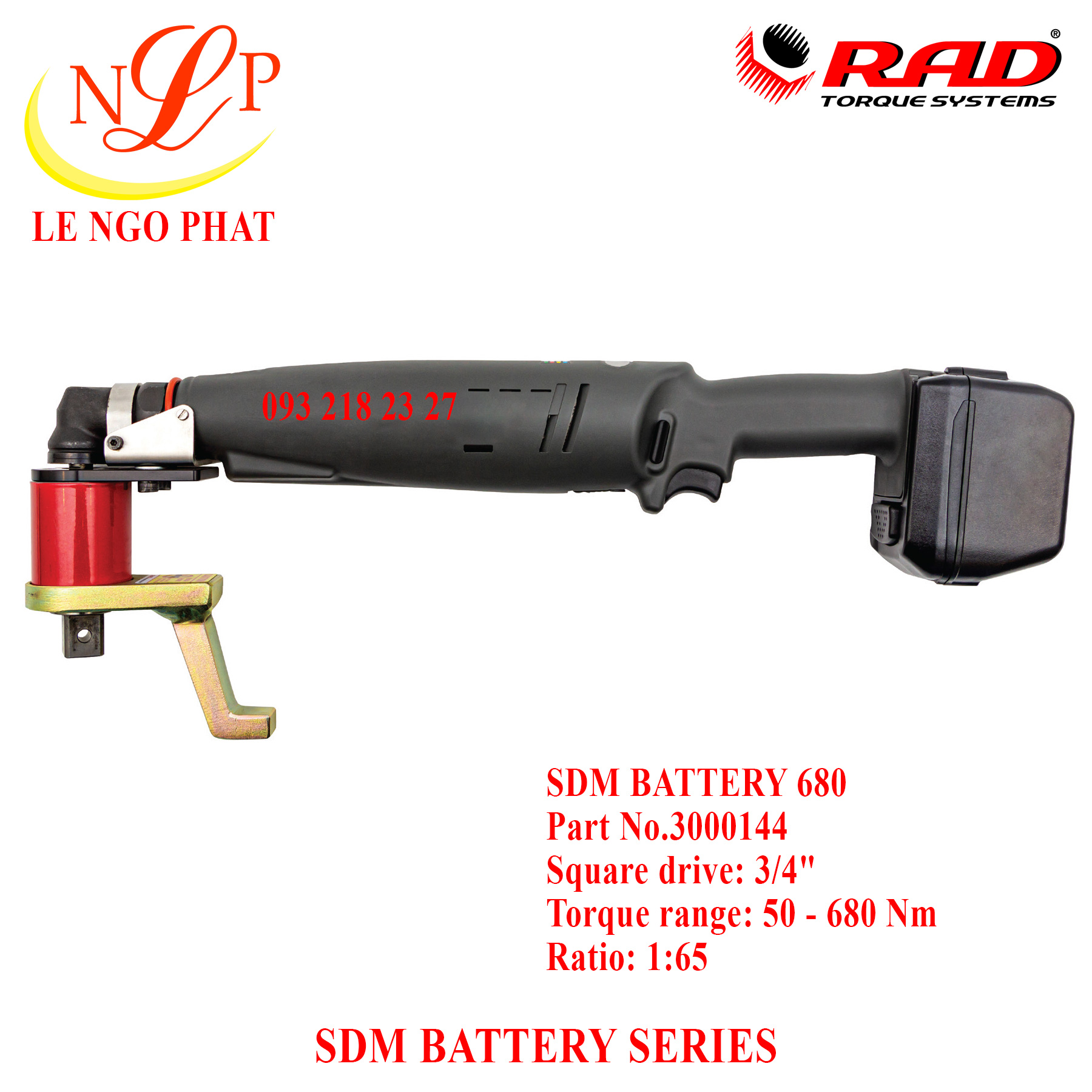

SDM BATTERY 680
Tool Model: SDM BATTERY 680
Part No.3000144
• TORQUE RANGE: 50 - 680 Nm
• Ratio: 1:65
• WEIGHT: 3,0 Kg with battery, excluding reaction arm and impact socket
• SQUARE DRIVE: 3/4 inch square drive
• BATTERY: One 18V/4.0Amp Li-Ion battery with 220V charger

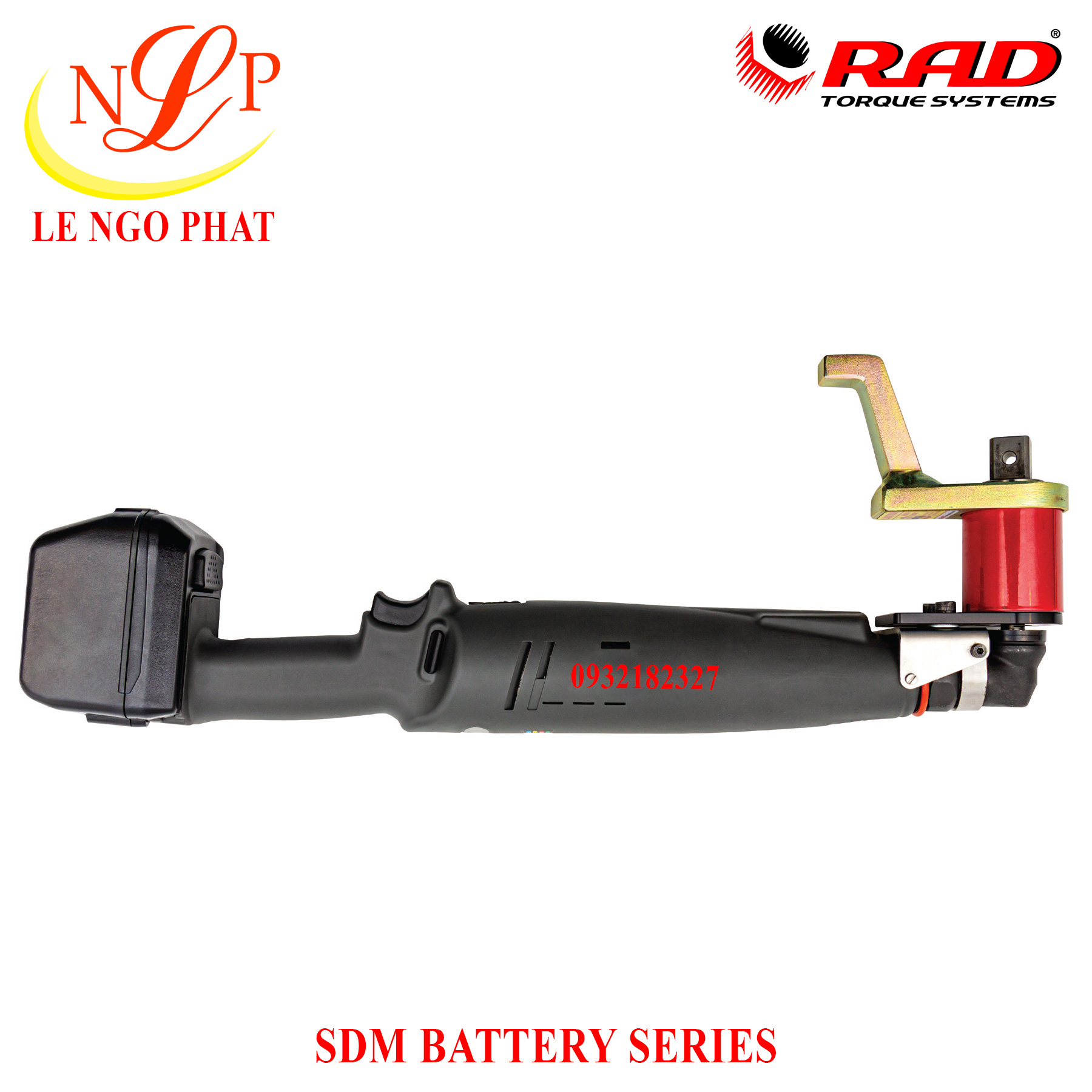

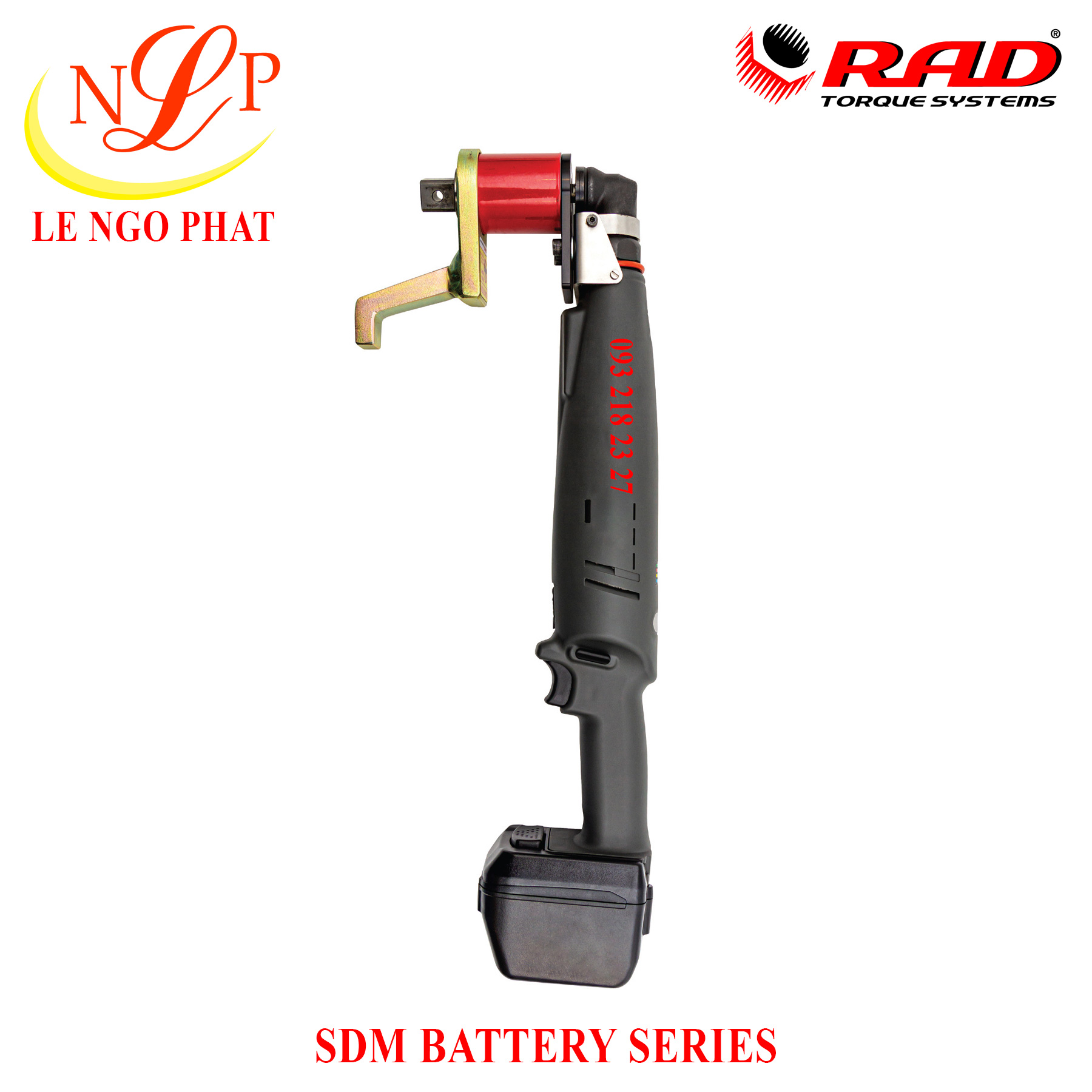

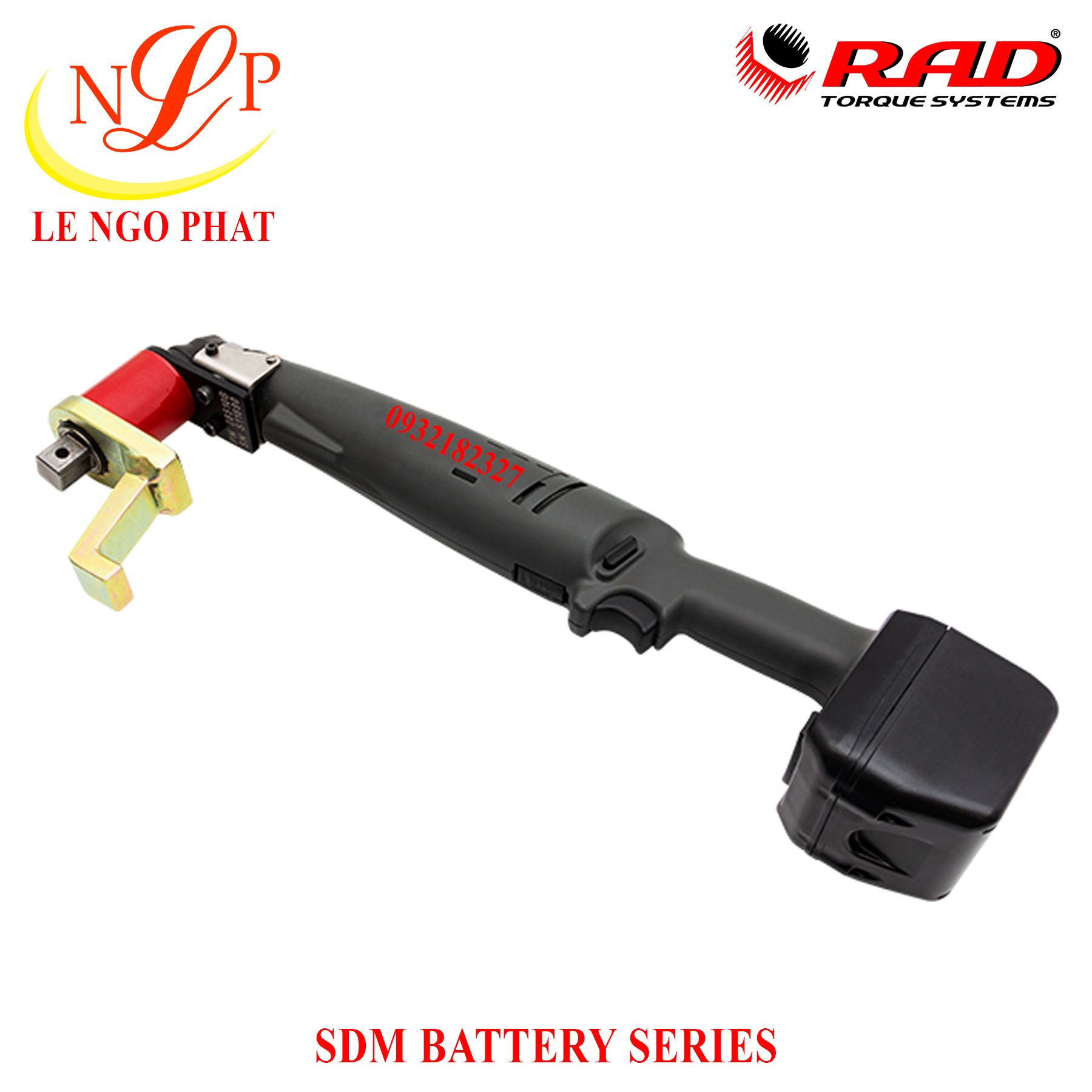

SDM BATTERY SERIES:
Torque range: 25 – 680 Nm
Miniature size, giant performance
RAD has originally designed the SDM (Small Diameter Multiplier) gearboxes for the aerospace industry where tool access is limited and quality and precision standards are high. Because of the compact design, the SDM gearboxes provides a solution for applications where tool access to the bolt is restricted and where high torque is needed.
| Part No. | Model | Ratio | Input drive |
Torque range | Weight |
|---|---|---|---|---|---|
| 3000143 | SDM BATTERY 340 | 1:23 | ½" | 25 - 340 Nm | 3,0 Kg |
| 3000144 | SDM BATTERY 680 | 1:65 | ¾" | 50 - 680 Nm | 3,0 Kg |
| Part No. | Model | Dim. A | Dim. B | Dim. C | Dim. D | Dim. E |
|---|---|---|---|---|---|---|
| 3000143 | SDM BATTERY 340 | 510 mm | 48 mm | 75 mm | 86 mm | 115 mm |
| 3000144 | SDM BATTERY 680 | 510 mm | 48 mm | 75 mm | 100 mm | 130 mm |
The low weight and size reduce operator fatigue and eliminate the use of large and tiresome manual torque wrenches. Combined with a quality nutrunner, the SDM Series provide repetitive precision with excellent durability thanks to clever materials and smart bearing technology.
Two options
- SDM Gearbox only: Can be combined with a standard industrial nutrunner (electric, pneumatic or battery) of your own choice. See SDM Gearboxes for a complete list of SDM gearboxes.
- SDM Battery Series Toolkit: Complete toolkits equipped with a standard angled battery nutrunner for torques of up to 680 Nm. An easy turnkey solution.
SDM Battery Series Toolkits
The SDM Battery Series is powered by a standard angled battery nutrunner (8 – 12 Nm output), which combined with the SDM gearbox is capable of a torque output of up to 680 Nm. The SDM Battery Series is calibrated on one pre-specified torque setting, multiple torque settings are not possible.
All SDM Battery Series Toolkits include:
- SDM gearbox
- Battery powered angled nutrunner
- One 18V/4.0Amp Li-Ion battery with 220V charger
- User manual
- Calibration certificate
Note:
- Mostly, bespoke reaction arms are needed for SDM applications, therefore reaction arms are not included.
Từ khóa: Súng siết bulong, súng siết ốc, súng siết bulong dùng pin, súng siết ốc dùng pin, súng bắn bulong dùng pin, súng bắn ốc dùng pin, súng siết bulong bằng pin, súng siết ốc bằng pin, súng bắn bulong bằng pin, súng bắn ốc bằng pin, súng siết bulong RAD, súng bắn bulong RAD, súng siết bulong RAD dùng pin, súng bắn bulong RAD dùng pin, súng siết bulong RAD bằng pin, súng bắn bulong RAD bằng pin, SDM BATTERY 340, SDM BATTERY 680
