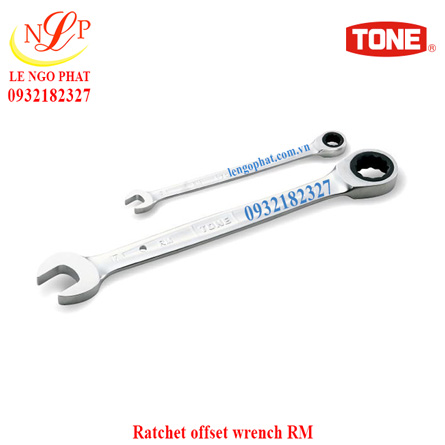

Ratchet offset wrench RM

Ratchet offset wrench

Standard straight type

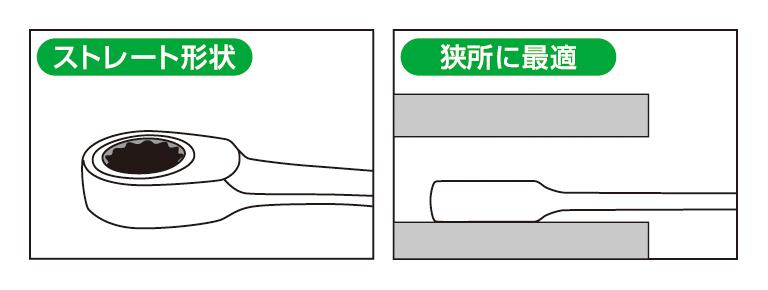

I show my power in work at the small part Oku danced deeply because the body is thin by the straight shape.
The soft curved line design matched with the hand which became easier to use in a facelift.

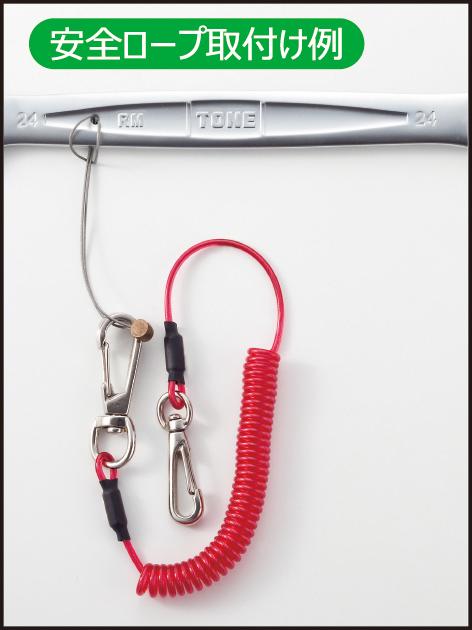

With safety rope attaching holeI come (RM-14, more than).

Thin type ratchet head.

Giá: 0932182327

Mã sản phẩm: wrench RM

Model: wrench RM

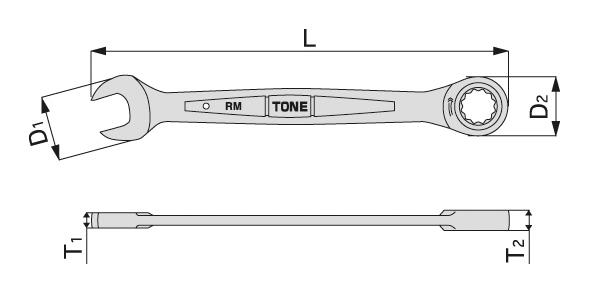

Models	Across Flat (mm)	Dimensions (mm)D1	Dimensions (mm)D2	Dimensions (mm)L	Dimensions (mm)T1	Dimensions (mm)T2	Qty./Carton	Packing quantity (store ornament)	weight (g)	MSRP in JP
RM-07	7	16.2	16.4	140	4.1	6.5	10	10	29	\1,930
RM-08	8	16.2	16.4	140	4.1	6.5	10	10	30	\1,995
RM-10	10	20.5	20.0	158	4.8	7.3	10	10	50	\2,065
RM-11	11	22.6	21.4	165	5.1	7.7	10	10	57	\2,180
RM-12	12	24.6	22.6	171	5.3	8.2	10	10	70	\2,290
RM-13	13	26.4	24.5	178	5.9	8.6	10	10	90	\2,440
RM-14	14	28.8	27.0	190	6.3	9.0	10	10	100	\2,590
RM-15	15	30.8	28.2	199	6.6	9.4	10	10	110	\2,740
RM-16	16	33.2	30.3	208	6.9	9.9	10	10	140	\2,890
RM-17	17	35.1	31.6	225	7.3	10.3	10	10	175	\3,025
RM-18	18	37.2	32.3	236	7.8	10.7	10	10	185	\3,185
RM-19	19	39.3	33.7	247	8.3	11.2	10	10	225	\3,335
RM-21	21	46.2	40.1	288	8.8	13.0	10	10	365	\3,695
RM-22	22	46.2	40.1	288	8.8	13.0	10	10	330	\3,820
RM-24	24	51.5	46.5	321	9.8	14.5	10	10	475	\4,255
