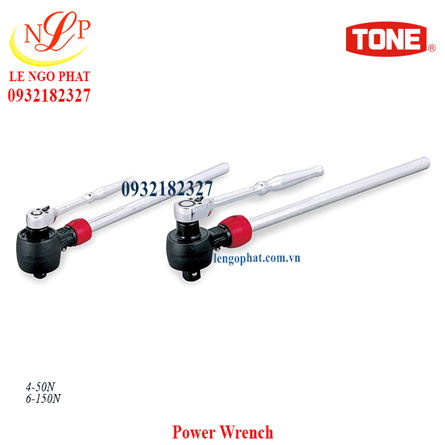

Power Wrench

A wrench with the double power organization suitable for tightening of large bolt nut and reducing work.
It can be a little power and also output amount torque by the small operational society by the double power organization.

Giá: 0932182327

Mã sản phẩm: Power Wrench

Model: Power Wrench

Models	The upper limit torque capacity (N m)	Biggest input torque (Nm)_MAX. INPUT.	Case dimensions (mm) w	Case dimensions (mm) d	Case dimensions (mm) h	dimensions (mm)A	dimensions (mm)B	dimensions (mm)C	dimensions (mm)D	dimensions (mm)H	dimensions (mm)K	dimensions (mm)L	magnification	The gear ratio	Qty./Carton	weight (g)	MSRP in JP
4-50N	420	140	425	100	65	9.5	12.7	43	56	55	96	379	About 3 (only the time of newness)	4	1	1500	Open price
6-100N	850	283	505	120	100	12.7	19.0	51	62	67	112	466	About 3 (only the time of newness)	4	1	2500	Open price
6-150N	1200	400	505	120	100	12.7	19.0	58	78	68	124	481	About 3 (only the time of newness)	4	1	3600	Open price
8-300N	2550	850	625	190	120	19.0	25.4	82	89	91	163	588	About 3 (only the time of newness)	4	1	7200	Open price

※ weight , the body and a bar-shaped, a total of reaction arm and ratchet handle .

※ Please use "impact socket " for a socket.

Accessories

Ratchet handle [ (RH40K) for (RH40K) and 6-150N for (RH30K) and 6-100N for 4-50N and for 8-300N (471)]	1
A bar-shaped, reaction arm .	1
L reaction arm	1
Hexagonal stick L-shaped wrench [ (2mm 3mm) for 4-50N, (3mm) for 6-100N, (3mm) for 6-150N and (3mm) for 8-300N]	1 for each.
Instruction manual	1
Metal case	1
