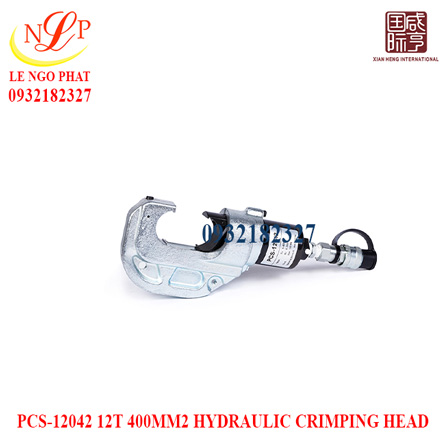

PCS-12042 12T 400MM2 HYDRAULIC CRIMPING HEAD

PCS-12042 12T 400MM2 HYDRAULIC CRIMPING HEAD

Model: PCS-12042

Output force: 12T

Rated Pressure: 700bar

Crimping capacity: Cu/Al: 400/300 mm²

Standard dies: Cu70-400 mm2

Weight: 5.5kg

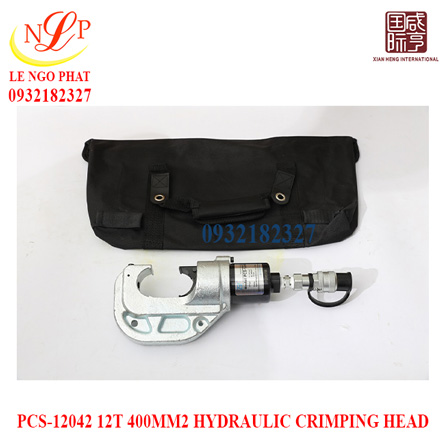

Packing: Canvas bag

Optional accessories

Cu dies: 6-400 mm²
Al dies: 10-300 mm²
C-clamp dies: 35-95 mm²

Giá: 0932182327

Mã sản phẩm: PCS-12042

Model: PCS-12042

Technical Data:

Model	PCS-12042
Output force	12T
Rated Pressure	700bar
Crimping capacity	Cu/Al: 400/300 mm²
Standard dies	Cu70-400 mm2
Weight	5.5kg
Packing	Canvas bag
Optional accessories	Cu dies: 6-400 mm² Al dies: 10-300 mm² C-clamp dies: 35-95 mm²

Features:
1. C-Head with 42 mm opening width, easy for disassembly, particularly suitable for

crimping sleeves
2. Super light, quick operation, durable
3. To crimp the cable terminal, C-clamp, connector and overhead line with fine
and compact result; well conducted; not easy to fall off
4. Max. Crimping up to Cu/Al/C-Clamps 400/300/95mm²
5. Slim crimping head, rotates 360° for ideal application in narrow space
6. Quick coupler for easy disassembly

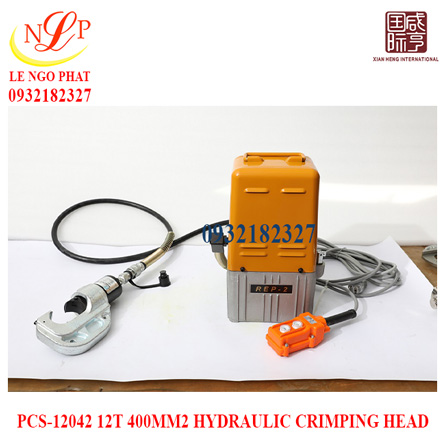

7. Powered by a single acting hydraulic pump

Technical Data:

Model	PCS-12042
Output force	12T
Rated Pressure	700bar
Crimping capacity	Cu/Al: 400/300 mm²
Standard dies	Cu70-400 mm2
Weight	5.5kg
Packing	Canvas bag
Optional accessories	Cu dies: 6-400 mm² Al dies: 10-300 mm² C-clamp dies: 35-95 mm²
