CÔNG TY TNHH LÊ NGÔ PHÁT

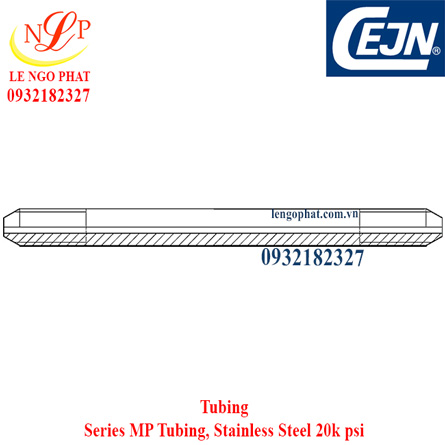

MP Tubing, Stainless Steel 20k psi
MP Tubing, Stainless Steel
MP (Max 20k PSI)Tubing
Industry standard tubes in 3/8" and 9/16" sizes. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.
| MP Tubing, Stainless Steel (Max 20k PSI) | ||||||
| Part No. | Category | Description Class | Tube Length | Tube size | Tube Size (Internal) | Rec. torque (Nm) |
| 199501949 | Tubing | MP 3/8" tube 3" | 3" (76.20 mm) | 3/8" (9.52 mm) | 5.2 mm | 41 Nm |
| 199501950 | Tubing | MP 9/16" tube 3" | 3" (76.20 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501951 | Tubing | MP 9/16" tube 4" | 4" (101.60 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501952 | Tubing | MP 9/16" tube 6" | 6" (152.40 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501953 | Tubing | MP 9/16" tube 8" | 8" (203.20 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199502275 | Tubing | MP 1/4" tube 3" | 3" (76.20 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502276 | Tubing | MP 1/4" tube 4" | 4" (101.60 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502277 | Tubing | MP 1/4" tube 6" | 6" (152.40 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502278 | Tubing | MP 1/4" tube 8" | 8" (203.20 mm | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| MP Tubing, Stainless Steel (Max 20k PSI) | ||||||
| Part No. | Category | Description Class | Tube Length | Tube size | Tube Size (Internal) | Rec. torque (Nm) |
| 199501949 | Tubing | MP 3/8" tube 3" | 3" (76.20 mm) | 3/8" (9.52 mm) | 5.2 mm | 41 Nm |
| 199501950 | Tubing | MP 9/16" tube 3" | 3" (76.20 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501951 | Tubing | MP 9/16" tube 4" | 4" (101.60 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501952 | Tubing | MP 9/16" tube 6" | 6" (152.40 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501953 | Tubing | MP 9/16" tube 8" | 8" (203.20 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199502275 | Tubing | MP 1/4" tube 3" | 3" (76.20 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502276 | Tubing | MP 1/4" tube 4" | 4" (101.60 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502277 | Tubing | MP 1/4" tube 6" | 6" (152.40 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502278 | Tubing | MP 1/4" tube 8" | 8" (203.20 mm | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| MP Tubing, Stainless Steel (Max 20k PSI) | ||||||
| Part No. | Category | Description Class | Tube Length | Tube size | Tube Size (Internal) | Rec. torque (Nm) |
| 199501949 | Tubing | MP 3/8" tube 3" | 3" (76.20 mm) | 3/8" (9.52 mm) | 5.2 mm | 41 Nm |
| 199501950 | Tubing | MP 9/16" tube 3" | 3" (76.20 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501951 | Tubing | MP 9/16" tube 4" | 4" (101.60 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501952 | Tubing | MP 9/16" tube 6" | 6" (152.40 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199501953 | Tubing | MP 9/16" tube 8" | 8" (203.20 mm) | 9/16" (14.40 mm) | 7.9 mm | 75 Nm |
| 199502275 | Tubing | MP 1/4" tube 3" | 3" (76.20 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502276 | Tubing | MP 1/4" tube 4" | 4" (101.60 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502277 | Tubing | MP 1/4" tube 6" | 6" (152.40 mm) | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
| 199502278 | Tubing | MP 1/4" tube 8" | 8" (203.20 mm | 1/4" (6.35 mm) | 2.8 mm | 27 Nm |
