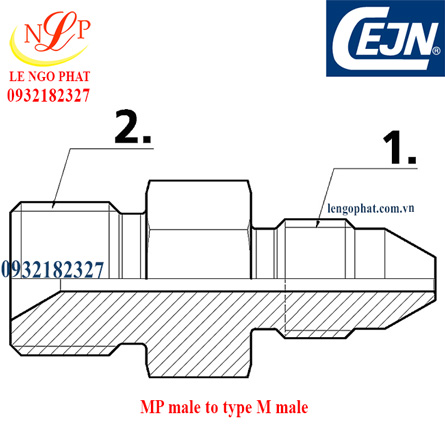

MP Adapters, MP to type M, Stainless Steel

MP Adapters, MP to type M, Stainless Steel

MP (Max 20k PSI)Adapters

Males threaded adapters with type M from 9/16" to 1-5/16" and MP from 1/4" to 1". Standard 60° cone type sealing with UNF threads. Manufactured from cold drawn AISI 316L / EN1.4404 Stainless Steel for maximum life.

Giá: 0932182327

Mã sản phẩm: MP male to type M male

Model: 199502159, 199502160, 199502161, 199502162, 199502163, 199502164, 199502165, 199502166, 199502167, 199502168, 199502169, 199502170, 199502171, 199502172, 199502173, 199502174, 199502175

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest
MP Adapters, MP to type M, Stainless Steel (Max 20k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502159 MP male to type M male conn.1: 27 conn.2: 52 Nm 1/4" MP 9/16"-18 type M 138.0 MPa
199502160 MP male to type M male conn.1: 41 conn.2: 52 Nm 3/8" MP 9/16"-18 type M 138.0 MPa
199502161 MP male to type M male conn.1: 75 conn.2: 52 Nm 9/16" MP 9/16"-18 type M 138.0 MPa
199502162 MP male to type M male conn.1: 123 conn.2: 52 Nm 3/4" MP 9/16"-18 type M 138.0 MPa
199502163 MP male to type M male conn.1: 203 conn.2: 52 Nm 1" MP 9/16"-18 type M 138.0 MPa
199502164 MP male to type M male conn.1: 27 conn.2: 81 Nm 1/4" MP 3/4" - 16 type M 138.0 MPa
199502165 MP male to type M male conn.1: 41 conn.2: 81 Nm 3/8" MP 3/4" - 16 type M 138.0 MPa
199502166 MP male to type M male conn.1: 75 conn.2: 81 Nm 9/16" MP 3/4" - 16 type M 138.0 MPa
199502167 MP male to type M male conn.1: 123 conn.2: 81 Nm 3/4" MP 3/4" - 16 type M 138.0 MPa
199502168 MP male to type M male conn.1: 203 conn.2: 81 Nm 1" MP 3/4" - 16 type M 138.0 MPa
199502169 MP male to type M male conn.1: 41 conn.2: 135 Nm 3/8" MP 1" - 12 type M 138.0 MPa
199502170 MP male to type M male conn.1: 75 conn.2: 135 Nm 9/16" MP 1" - 12 type M 138.0 MPa
199502171 MP male to type M male conn.1: 123 conn.2: 135 Nm 3/4" MP 1" - 12 type M 138.0 MPa
199502172 MP male to type M male conn.1: 203 conn.2: 135 Nm 1" MP 1" - 12 type M 138.0 MPa
199502173 MP male to type M male conn.1: 75 conn.2: 203 Nm 9/16" MP 1 5/16" - 12 type M 138.0 MPa
199502174 MP male to type M male conn.1: 123 conn.2: 203 Nm 3/4" MP 1 5/16" - 12 type M 138.0 MPa
199502175 MP male to type M male conn.1: 203 conn.2: 203 Nm 1" MP 1 5/16" - 12 type M 138.0 MPa
MP Adapters, MP to type M, Stainless Steel (Max 20k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502159 MP male to type M male conn.1: 27 conn.2: 52 Nm 1/4" MP 9/16"-18 type M 138.0 MPa
199502160 MP male to type M male conn.1: 41 conn.2: 52 Nm 3/8" MP 9/16"-18 type M 138.0 MPa
199502161 MP male to type M male conn.1: 75 conn.2: 52 Nm 9/16" MP 9/16"-18 type M 138.0 MPa
199502162 MP male to type M male conn.1: 123 conn.2: 52 Nm 3/4" MP 9/16"-18 type M 138.0 MPa
199502163 MP male to type M male conn.1: 203 conn.2: 52 Nm 1" MP 9/16"-18 type M 138.0 MPa
199502164 MP male to type M male conn.1: 27 conn.2: 81 Nm 1/4" MP 3/4" - 16 type M 138.0 MPa
199502165 MP male to type M male conn.1: 41 conn.2: 81 Nm 3/8" MP 3/4" - 16 type M 138.0 MPa
199502166 MP male to type M male conn.1: 75 conn.2: 81 Nm 9/16" MP 3/4" - 16 type M 138.0 MPa
199502167 MP male to type M male conn.1: 123 conn.2: 81 Nm 3/4" MP 3/4" - 16 type M 138.0 MPa
199502168 MP male to type M male conn.1: 203 conn.2: 81 Nm 1" MP 3/4" - 16 type M 138.0 MPa
199502169 MP male to type M male conn.1: 41 conn.2: 135 Nm 3/8" MP 1" - 12 type M 138.0 MPa
199502170 MP male to type M male conn.1: 75 conn.2: 135 Nm 9/16" MP 1" - 12 type M 138.0 MPa
199502171 MP male to type M male conn.1: 123 conn.2: 135 Nm 3/4" MP 1" - 12 type M 138.0 MPa
199502172 MP male to type M male conn.1: 203 conn.2: 135 Nm 1" MP 1" - 12 type M 138.0 MPa
199502173 MP male to type M male conn.1: 75 conn.2: 203 Nm 9/16" MP 1 5/16" - 12 type M 138.0 MPa
199502174 MP male to type M male conn.1: 123 conn.2: 203 Nm 3/4" MP 1 5/16" - 12 type M 138.0 MPa
199502175 MP male to type M male conn.1: 203 conn.2: 203 Nm 1" MP 1 5/16" - 12 type M 138.0 MPa
MP Adapters, MP to type M, Stainless Steel (Max 20k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502159 MP male to type M male conn.1: 27 conn.2: 52 Nm 1/4" MP 9/16"-18 type M 138.0 MPa
199502160 MP male to type M male conn.1: 41 conn.2: 52 Nm 3/8" MP 9/16"-18 type M 138.0 MPa
199502161 MP male to type M male conn.1: 75 conn.2: 52 Nm 9/16" MP 9/16"-18 type M 138.0 MPa
199502162 MP male to type M male conn.1: 123 conn.2: 52 Nm 3/4" MP 9/16"-18 type M 138.0 MPa
199502163 MP male to type M male conn.1: 203 conn.2: 52 Nm 1" MP 9/16"-18 type M 138.0 MPa
199502164 MP male to type M male conn.1: 27 conn.2: 81 Nm 1/4" MP 3/4" - 16 type M 138.0 MPa
199502165 MP male to type M male conn.1: 41 conn.2: 81 Nm 3/8" MP 3/4" - 16 type M 138.0 MPa
199502166 MP male to type M male conn.1: 75 conn.2: 81 Nm 9/16" MP 3/4" - 16 type M 138.0 MPa
199502167 MP male to type M male conn.1: 123 conn.2: 81 Nm 3/4" MP 3/4" - 16 type M 138.0 MPa
199502168 MP male to type M male conn.1: 203 conn.2: 81 Nm 1" MP 3/4" - 16 type M 138.0 MPa
199502169 MP male to type M male conn.1: 41 conn.2: 135 Nm 3/8" MP 1" - 12 type M 138.0 MPa
199502170 MP male to type M male conn.1: 75 conn.2: 135 Nm 9/16" MP 1" - 12 type M 138.0 MPa
199502171 MP male to type M male conn.1: 123 conn.2: 135 Nm 3/4" MP 1" - 12 type M 138.0 MPa
199502172 MP male to type M male conn.1: 203 conn.2: 135 Nm 1" MP 1" - 12 type M 138.0 MPa
199502173 MP male to type M male conn.1: 75 conn.2: 203 Nm 9/16" MP 1 5/16" - 12 type M 138.0 MPa
199502174 MP male to type M male conn.1: 123 conn.2: 203 Nm 3/4" MP 1 5/16" - 12 type M 138.0 MPa
199502175 MP male to type M male conn.1: 203 conn.2: 203 Nm 1" MP 1 5/16" - 12 type M 138.0 MPa
