INVERTER IGBT
MCU digital control achieves intelligent synergy.
Digital interface and synergic welding makes operation easier for users.
Compact and portable with 5kg size wire spool accepted.
Convertible polarity for Gas Metal Arc Welding and Flux Cored Arc Welding.
Automatic saving of welding parameters.
High welding efficiency.

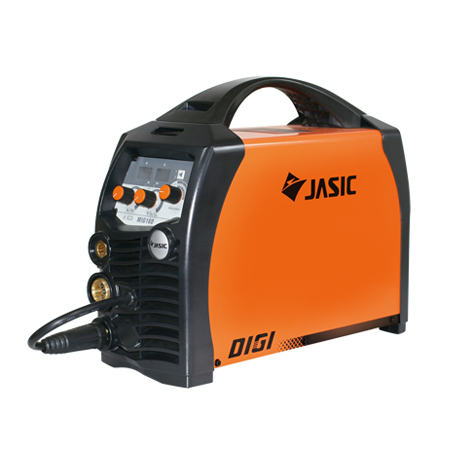

MIG160 N227|MIG200 N229
Features
Specification
Standard | Optional |
|
|
Technical Parameters
MIG160 N227 | MIG200 N229 | |
Input power source | 1~AC230V±15% 50/60Hz | |
Rated Input current (A) | 31 | 41 |
Rated input power capacity (KVA) | 7.1 | 9.4 |
MMA Output current range (A) | 10-160 | 10-200 |
MIG Output current range (A) | 30-160 | 30-200 |
Wire speed (m/min) | 1.5-14 | 1.5-16 |
No-load voltage (V) | 53 | 53 |
Rated duty cycle (%) @40℃ | 35 | 35 |
Wire diameter (mm) | 0.6/0.8/0.9 | 0.6/0.8/0.9/1.0 |
Efficiency (%) | 85 | 85 |
Power factor (cosφ) | 0.7 | 0.7 |
Protection class | IP21S | IP21S |
Insulation class | F | F |
Dimensions (mm) | 485×185×370 | 485×185×370 |
Weight (Kg) | 12.5 | 12.5 |
MIG160 N227|MIG200 N229
Features
Specification
Standard | Optional |
|
|
Technical Parameters
MIG160 N227 | MIG200 N229 | |
Input power source | 1~AC230V±15% 50/60Hz | |
Rated Input current (A) | 31 | 41 |
Rated input power capacity (KVA) | 7.1 | 9.4 |
MMA Output current range (A) | 10-160 | 10-200 |
MIG Output current range (A) | 30-160 | 30-200 |
Wire speed (m/min) | 1.5-14 | 1.5-16 |
No-load voltage (V) | 53 | 53 |
Rated duty cycle (%) @40℃ | 35 | 35 |
Wire diameter (mm) | 0.6/0.8/0.9 | 0.6/0.8/0.9/1.0 |
Efficiency (%) | 85 | 85 |
Power factor (cosφ) | 0.7 | 0.7 |
Protection class | IP21S | IP21S |
Insulation class | F | F |
Dimensions (mm) | 485×185×370 | 485×185×370 |
Weight (Kg) | 12.5 | 12.5 |
Thời gian giao hàng: 1-3 ngày kể từ ngày đặt hàng.
Địa điểm giao hàng: Tại kho bên mua, không phát sinh phí.
Bảo hành: 12 tháng.
Chứng nhận xuất xứ hàng hóa (CO) do phòng thương mại và công nghiệp quốc gia sản xuất cấp.
Chứng nhận chất lượng sản phẩm (CQ) do nhà sản xuất cấp.
Catalogue, hướng dẫn sử dụng đi kèm sản phẩm.
