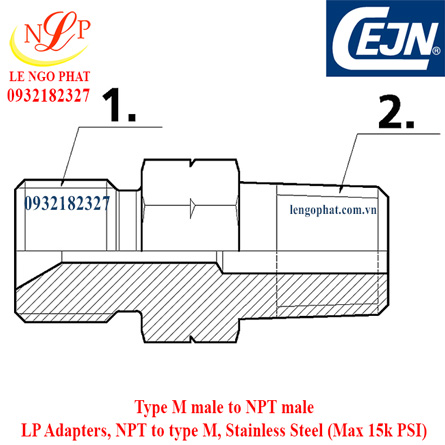

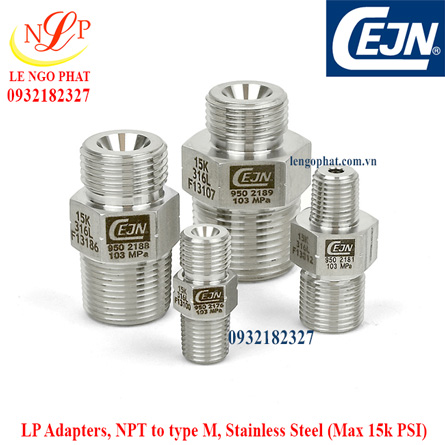

LP Adapters, NPT to type M, Stainless Steel

LP Adapters, NPT to type M, Stainless Steel

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/4" to 1" NPT to Type M 9/16", 3/4", 1" and 1,5/16". Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

Mã sản phẩm: Type M male to NPT male

Model: 199502176, 199502177, 199502178, 199502179, 199502180, 199502181, 199502182, 199502183, 199502184, 199502185, 199502186, 199502187, 199502188 199502189 199502190 199502191 199502192

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest
LP Adapters, NPT to type M, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502176 Type M male to NPT male conn.1: 52 conn.2: 29 Nm 9/16" - 18 Type M 1/4” NPT 103.0 MPa
199502177 Type M male to NPT male conn.1: 52 conn.2: 34 Nm 9/16" - 18 Type M 3/8” NPT 103.0 MPa
199502178 Type M male to NPT male conn.1: 52 conn.2: 61 Nm 9/16" - 18 Type M 1/2” NPT 103.0 MPa
199502179 Type M male to NPT male conn.1: 52 conn.2: 102 Nm 9/16" - 18 Type M 3/4” NPT 103.0 MPa
199502180 Type M male to NPT male conn.1: 52 conn.2: 163 Nm 9/16" - 18 Type M 1” NPT 103.0 MPa
199502181 Type M male to NPT male conn.1: 81 conn.2: 29 Nm 3/4” - 16 Type M 1/4” NPT 103.0 MPa
199502182 Type M male to NPT male conn.1: 81 conn.2: 34 Nm 3/4” - 16 Type M 3/8” NPT 103.0 MPa
199502183 Type M male to NPT male conn.1: 81 conn.2: 61 Nm 3/4” - 16 Type M 1/2" NPT 103.0 MPa
199502184 Type M male to NPT male conn.1: 81 conn.2: 102 Nm 3/4” - 16 Type M 3/4” NPT 103.0 MPa
199502185 Type M male to NPT male conn.1: 81 conn.2: 163 Nm 3/4” - 16 Type M 1” NPT 103.0 MPa
199502186 Type M male to NPT male conn.1: 135 conn.2: 34 Nm 1” - 12 Type M 3/8” NPT 103.0 MPa
199502187 Type M male to NPT male conn.1: 135 conn.2: 61 Nm 1” - 12 Type M 1/2” NPT 103.0 MPa
199502188 Type M male to NPT male conn.1: 135 conn.2: 102 Nm 1” - 12 Type M 3/4” NPT 103.0 MPa
199502189 Type M male to NPT male conn.1: 135 conn.2: 163 Nm 1” - 12 Type M 1” NPT 103.0 MPa
199502190 Type M male to NPT male conn.1: 203 conn.2: 61 Nm 1-5/16” - 12 Type M 1/2” NPT 103.0 MPa
199502191 Type M male to NPT male conn.1: 203 conn.2: 102 Nm 1-5/16” - 12 Type M 3/4” NPT 103.0 MPa
199502192 Type M male to NPT male conn.1: 203 conn.2: 163 Nm 1-5/16” - 12 Type M 1” NPT 103.0 MPa
LP Adapters, NPT to type M, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502176 Type M male to NPT male conn.1: 52 conn.2: 29 Nm 9/16" - 18 Type M 1/4” NPT 103.0 MPa
199502177 Type M male to NPT male conn.1: 52 conn.2: 34 Nm 9/16" - 18 Type M 3/8” NPT 103.0 MPa
199502178 Type M male to NPT male conn.1: 52 conn.2: 61 Nm 9/16" - 18 Type M 1/2” NPT 103.0 MPa
199502179 Type M male to NPT male conn.1: 52 conn.2: 102 Nm 9/16" - 18 Type M 3/4” NPT 103.0 MPa
199502180 Type M male to NPT male conn.1: 52 conn.2: 163 Nm 9/16" - 18 Type M 1” NPT 103.0 MPa
199502181 Type M male to NPT male conn.1: 81 conn.2: 29 Nm 3/4” - 16 Type M 1/4” NPT 103.0 MPa
199502182 Type M male to NPT male conn.1: 81 conn.2: 34 Nm 3/4” - 16 Type M 3/8” NPT 103.0 MPa
199502183 Type M male to NPT male conn.1: 81 conn.2: 61 Nm 3/4” - 16 Type M 1/2" NPT 103.0 MPa
199502184 Type M male to NPT male conn.1: 81 conn.2: 102 Nm 3/4” - 16 Type M 3/4” NPT 103.0 MPa
199502185 Type M male to NPT male conn.1: 81 conn.2: 163 Nm 3/4” - 16 Type M 1” NPT 103.0 MPa
199502186 Type M male to NPT male conn.1: 135 conn.2: 34 Nm 1” - 12 Type M 3/8” NPT 103.0 MPa
199502187 Type M male to NPT male conn.1: 135 conn.2: 61 Nm 1” - 12 Type M 1/2” NPT 103.0 MPa
199502188 Type M male to NPT male conn.1: 135 conn.2: 102 Nm 1” - 12 Type M 3/4” NPT 103.0 MPa
199502189 Type M male to NPT male conn.1: 135 conn.2: 163 Nm 1” - 12 Type M 1” NPT 103.0 MPa
199502190 Type M male to NPT male conn.1: 203 conn.2: 61 Nm 1-5/16” - 12 Type M 1/2” NPT 103.0 MPa
199502191 Type M male to NPT male conn.1: 203 conn.2: 102 Nm 1-5/16” - 12 Type M 3/4” NPT 103.0 MPa
199502192 Type M male to NPT male conn.1: 203 conn.2: 163 Nm 1-5/16” - 12 Type M 1” NPT 103.0 MPa
LP Adapters, NPT to type M, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502176 Type M male to NPT male conn.1: 52 conn.2: 29 Nm 9/16" - 18 Type M 1/4” NPT 103.0 MPa
199502177 Type M male to NPT male conn.1: 52 conn.2: 34 Nm 9/16" - 18 Type M 3/8” NPT 103.0 MPa
199502178 Type M male to NPT male conn.1: 52 conn.2: 61 Nm 9/16" - 18 Type M 1/2” NPT 103.0 MPa
199502179 Type M male to NPT male conn.1: 52 conn.2: 102 Nm 9/16" - 18 Type M 3/4” NPT 103.0 MPa
199502180 Type M male to NPT male conn.1: 52 conn.2: 163 Nm 9/16" - 18 Type M 1” NPT 103.0 MPa
199502181 Type M male to NPT male conn.1: 81 conn.2: 29 Nm 3/4” - 16 Type M 1/4” NPT 103.0 MPa
199502182 Type M male to NPT male conn.1: 81 conn.2: 34 Nm 3/4” - 16 Type M 3/8” NPT 103.0 MPa
199502183 Type M male to NPT male conn.1: 81 conn.2: 61 Nm 3/4” - 16 Type M 1/2" NPT 103.0 MPa
199502184 Type M male to NPT male conn.1: 81 conn.2: 102 Nm 3/4” - 16 Type M 3/4” NPT 103.0 MPa
199502185 Type M male to NPT male conn.1: 81 conn.2: 163 Nm 3/4” - 16 Type M 1” NPT 103.0 MPa
199502186 Type M male to NPT male conn.1: 135 conn.2: 34 Nm 1” - 12 Type M 3/8” NPT 103.0 MPa
199502187 Type M male to NPT male conn.1: 135 conn.2: 61 Nm 1” - 12 Type M 1/2” NPT 103.0 MPa
199502188 Type M male to NPT male conn.1: 135 conn.2: 102 Nm 1” - 12 Type M 3/4” NPT 103.0 MPa
199502189 Type M male to NPT male conn.1: 135 conn.2: 163 Nm 1” - 12 Type M 1” NPT 103.0 MPa
199502190 Type M male to NPT male conn.1: 203 conn.2: 61 Nm 1-5/16” - 12 Type M 1/2” NPT 103.0 MPa
199502191 Type M male to NPT male conn.1: 203 conn.2: 102 Nm 1-5/16” - 12 Type M 3/4” NPT 103.0 MPa
199502192 Type M male to NPT male conn.1: 203 conn.2: 163 Nm 1-5/16” - 12 Type M 1” NPT 103.0 MPa
