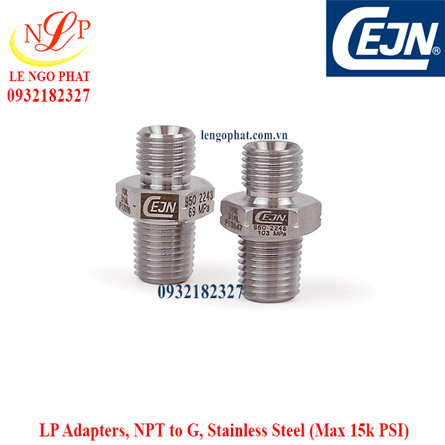

LP Adapters, NPT to G, Stainless Steel

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/4" to 1" NPT to G 1/8" ,1/4", 3/8", 1/2" and 1" with 60° internal sealing cone. Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

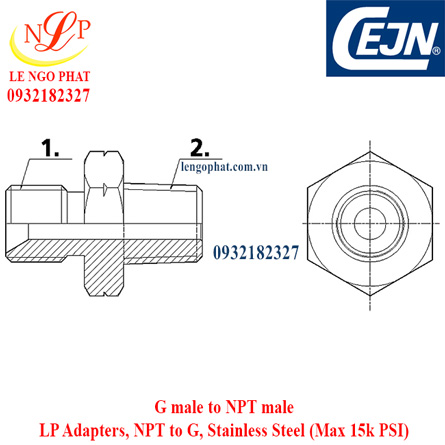

Mã sản phẩm: G male to NPT male

Model: 199502242, 199502243, 199502244, 199502245, 199502246, 199502247, 199502248, 199502249, 199502250, 199502251

LP Adapters, NPT to G, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199502242	G male to NPT male	conn.1: 22 conn.2: 23 Nm	G 1/8"	1/8" NPT	69.0 MPa
199502243	G male to NPT male	conn.1: 35 conn.2: 29 Nm	G 1/4"	1/4" NPT	69.0 MPa
199502244	G male to NPT male	conn.1: 50 conn.2: 34 Nm	G 3/8"	3/8" NPT	69.0 MPa
199502245	G male to NPT male	conn.1: 65 conn.2: 61 Nm	G 1/2"	1/2" NPT	69.0 MPa
199502246	G male to NPT male	conn.1: 100 conn.2: 102 Nm	G 3/4"	3/4" NPT	69.0 MPa
199502247	G male to NPT male	conn.1: 160 conn.2: 163 Nm	G 1"	1" NPT	69.0 MPa
199502248	G male to NPT male	conn.1: 35 conn.2: 23 Nm	G 1/4"	1/4" NPT	103.0 MPa
199502249	G male to NPT male	conn.1: 50 conn.2: 34 Nm	G 3/8"	3/8" NPT	103.0 MPa
199502250	G male to NPT male	conn.1: 65 conn.2: 61 Nm	G 1/2"	1/2" NPT	103.0 MPa
199502251	G male to NPT male	conn.1: 100 conn.2: 102 Nm	G 3/4"	3/4" NPT	103.0 MPa
