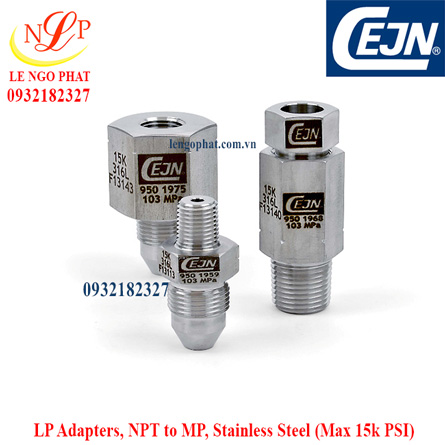

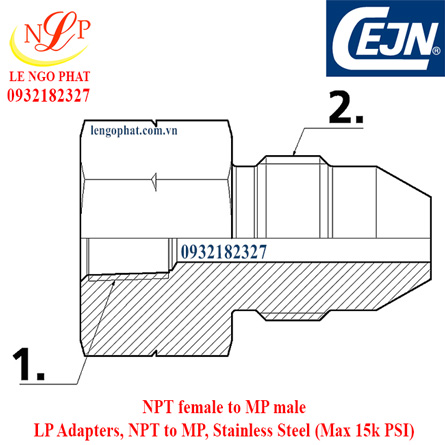

LP Adapters NPT female to MP male, Stainless Steel

LP Adapters NPT female to MP male, Stainless Steel

LP Adapters, NPT to MP, Stainless Steel

LP (Max 15k PSI)Adapters

Industry standard adapters for 1/8" to 1" NPT to MP tubes sizes 1/4", 3/8", 9/16" and 1". Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life and safety weep holes on all the connection ports.

Giá: 0932182327

Mã sản phẩm: NPT female to MP male

Model: 199501970, 199501972, 199501973, 199501974, 199501975, 199501976, 199501977, 199501978, 199501979, 199501980, 199502279

LP Adapters, NPT to MP, Stainless Steel (Max 15k PSI)
Part No.	Category	Rec. torque (Nm)	Connection 1	Connection 2	Max working pressure
199501970	NPT female to MP male	conn.1: 23 conn.2: 75 Nm	1/8" NPT	9/16" MP	103.4 MPa
199501972	NPT female to MP male	conn.1: 29 conn.2: 27 Nm	1/4" NPT	1/4" MP	103.4 MPa
199501973	NPT female to MP male	conn.1: 29 conn.2: 41 Nm	1/4" NPT	3/8" MP	103.4 MPa
199501974	NPT female to MP male	conn.1: 29 conn.2: 75 Nm	1/4" NPT	9/16" MP	103.4 MPa
199501975	NPT female to MP male	conn.1: 34 conn.2: 75 Nm	3/8" NPT	9/16" MP	103.4 MPa
199501976	NPT female to MP male	conn.1: 61 conn.2: 75 Nm	1/2" NPT	9/16" MP	103.4 MPa
199501977	NPT female to MP male	conn.1: 61 conn.2: 123 Nm	1/2" NPT	3/4" MP	103.4 MPa
199501978	NPT female to MP male	conn.1: 61 conn.2: 203 Nm	1/2" NPT	1" MP	103.4 MPa
199501979	NPT female to MP male	conn.1: 102 conn.2: 203 Nm	3/4" NPT	1" MP	103.4 MPa
199501980	NPT female to MP male	conn.1: 163 conn.2: 203 Nm	1" NPT	1" MP	103.4 MPa
199502279	NPT female to MP male	conn.1: 102 conn.2: 123 Nm	3/4" NPT	3/4" MP	103.4 MPa
