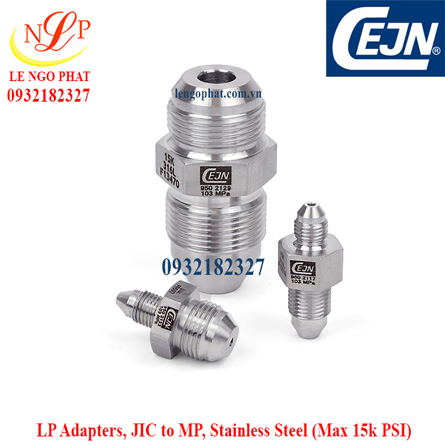

LP Adapters JIC to MP Stainless Steel

LP Adapters, JIC to MP, Stainless Steel

LP (Max 15k PSI)Adapters

JIC standard adapters with 37° flare tube connection for JIC 04, 06, 08 and 16 to MP tubes sizes 1/4", 3/8", 9/16", 3/4" and 1". Compact designs, made from NACE certified AISI 316L / EN1.4404 stainless steel for maximum life.

Giá: 0932182327

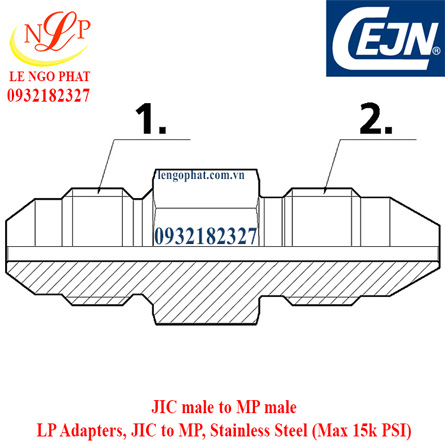

Mã sản phẩm: JIC male to MP male

Model: 199502116 199502117 199502118 199502119, 199502120, 199502121, 199502122, 199502123, 199502124, 199502125, 199502126, 199502127, 199502128, 199502129

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest
LP Adapters, JIC to MP, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502116 JIC male to MP male conn.1: 18 conn.2: 27 Nm JIC 04 1/4" MP 103.0 MPa
199502117 JIC male to MP male conn.1: 18 conn.2: 41 Nm JIC 04 3/8" MP 103.0 MPa
199502118 JIC male to MP male conn.1: 18 conn.2: 75 Nm JIC 04 9/16" MP 103.0 MPa
199502119 JIC male to MP male conn.1: 30 conn.2: 27 Nm JIC 06 1/4" MP 103.0 MPa
199502120 JIC male to MP male conn.1: 30 conn.2: 41 Nm JIC 06 3/8" MP 103.0 MPa
199502121 JIC male to MP male conn.1: 30 conn.2: 75 Nm JIC 06 9/16" MP 103.0 MPa
199502122 JIC male to MP male conn.1: 30 conn.2: 123 Nm JIC 06 3/4" MP 103.0 MPa
199502123 JIC male to MP male conn.1: 64 conn.2: 27 Nm JIC 08 1/4" MP 103.0 MPa
199502124 JIC male to MP male conn.1: 64 conn.2: 41 Nm JIC 08 3/8" MP 103.0 MPa
199502125 JIC male to MP male conn.1: 64 conn.2: 75 Nm JIC 08 9/16" MP 103.0 MPa
199502126 JIC male to MP male conn.1: 64 conn.2: 123 Nm JIC 08 3/4" MP 103.0 MPa
199502127 JIC male to MP male conn.1: 64 conn.2: 203 Nm JIC 08 1" MP 103.0 MPa
199502128 JIC male to MP male conn.1: 169 conn.2: 123 Nm JIC 16 3/4" MP 103.0 MPa
199502129 JIC male to MP male conn.1: 169 conn.2:203 Nm JIC 16 1" MP 103.0 MPa
LP Adapters, JIC to MP, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502116 JIC male to MP male conn.1: 18 conn.2: 27 Nm JIC 04 1/4" MP 103.0 MPa
199502117 JIC male to MP male conn.1: 18 conn.2: 41 Nm JIC 04 3/8" MP 103.0 MPa
199502118 JIC male to MP male conn.1: 18 conn.2: 75 Nm JIC 04 9/16" MP 103.0 MPa
199502119 JIC male to MP male conn.1: 30 conn.2: 27 Nm JIC 06 1/4" MP 103.0 MPa
199502120 JIC male to MP male conn.1: 30 conn.2: 41 Nm JIC 06 3/8" MP 103.0 MPa
199502121 JIC male to MP male conn.1: 30 conn.2: 75 Nm JIC 06 9/16" MP 103.0 MPa
199502122 JIC male to MP male conn.1: 30 conn.2: 123 Nm JIC 06 3/4" MP 103.0 MPa
199502123 JIC male to MP male conn.1: 64 conn.2: 27 Nm JIC 08 1/4" MP 103.0 MPa
199502124 JIC male to MP male conn.1: 64 conn.2: 41 Nm JIC 08 3/8" MP 103.0 MPa
199502125 JIC male to MP male conn.1: 64 conn.2: 75 Nm JIC 08 9/16" MP 103.0 MPa
199502126 JIC male to MP male conn.1: 64 conn.2: 123 Nm JIC 08 3/4" MP 103.0 MPa
199502127 JIC male to MP male conn.1: 64 conn.2: 203 Nm JIC 08 1" MP 103.0 MPa
199502128 JIC male to MP male conn.1: 169 conn.2: 123 Nm JIC 16 3/4" MP 103.0 MPa
199502129 JIC male to MP male conn.1: 169 conn.2:203 Nm JIC 16 1" MP 103.0 MPa
LP Adapters, JIC to MP, Stainless Steel (Max 15k PSI)
Part No. Category Rec. torque (Nm) Connection 1 Connection 2 Max working pressure
199502116 JIC male to MP male conn.1: 18 conn.2: 27 Nm JIC 04 1/4" MP 103.0 MPa
199502117 JIC male to MP male conn.1: 18 conn.2: 41 Nm JIC 04 3/8" MP 103.0 MPa
199502118 JIC male to MP male conn.1: 18 conn.2: 75 Nm JIC 04 9/16" MP 103.0 MPa
199502119 JIC male to MP male conn.1: 30 conn.2: 27 Nm JIC 06 1/4" MP 103.0 MPa
199502120 JIC male to MP male conn.1: 30 conn.2: 41 Nm JIC 06 3/8" MP 103.0 MPa
199502121 JIC male to MP male conn.1: 30 conn.2: 75 Nm JIC 06 9/16" MP 103.0 MPa
199502122 JIC male to MP male conn.1: 30 conn.2: 123 Nm JIC 06 3/4" MP 103.0 MPa
199502123 JIC male to MP male conn.1: 64 conn.2: 27 Nm JIC 08 1/4" MP 103.0 MPa
199502124 JIC male to MP male conn.1: 64 conn.2: 41 Nm JIC 08 3/8" MP 103.0 MPa
199502125 JIC male to MP male conn.1: 64 conn.2: 75 Nm JIC 08 9/16" MP 103.0 MPa
199502126 JIC male to MP male conn.1: 64 conn.2: 123 Nm JIC 08 3/4" MP 103.0 MPa
199502127 JIC male to MP male conn.1: 64 conn.2: 203 Nm JIC 08 1" MP 103.0 MPa
199502128 JIC male to MP male conn.1: 169 conn.2: 123 Nm JIC 16 3/4" MP 103.0 MPa
199502129 JIC male to MP male conn.1: 169 conn.2:203 Nm JIC 16 1" MP 103.0 MPa
