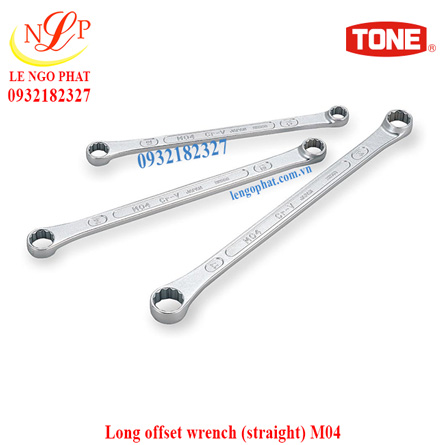

Long offset wrench (straight) M04
Long offset wrench (straight)
It's most suitable for a small part with height limit.
The glasses parts are 12 corners, so fitting forms easily to bolt nut

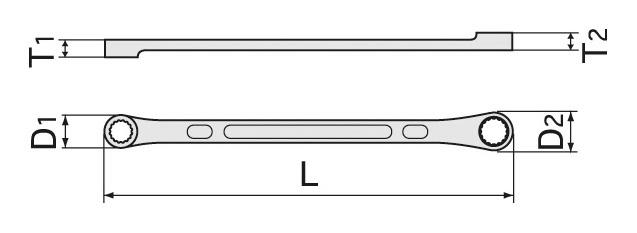

| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M04-0810 | 8 x 10 | 13.5 | 16.0 | 184 | 7.5 | 8.0 | 10 | 10 | 50 | \1,730 |
| M04-1012 | 10 x 12 | 16.0 | 18.5 | 192 | 8.5 | 9.0 | 10 | 10 | 70 | \1,805 |
| M04-1113 | 11 x 13 | 17.0 | 19.0 | 193 | 9.0 | 9.5 | 10 | 10 | 75 | \1,870 |
| M04-1214 | 12 x 14 | 18.5 | 21.0 | 224 | 9.5 | 10.0 | 10 | 10 | 105 | \1,920 |
| M04-1315 | 13 x 15 | 19.0 | 23.0 | 240 | 9.5 | 11.0 | 10 | 10 | 120 | \2,215 |
| M04-1417 | 14 x 17 | 21.0 | 25.5 | 252 | 11.0 | 12.0 | 10 | 10 | 135 | \2,215 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M04-0810 | 8 x 10 | 13.5 | 16.0 | 184 | 7.5 | 8.0 | 10 | 10 | 50 | \1,730 |
| M04-1012 | 10 x 12 | 16.0 | 18.5 | 192 | 8.5 | 9.0 | 10 | 10 | 70 | \1,805 |
| M04-1113 | 11 x 13 | 17.0 | 19.0 | 193 | 9.0 | 9.5 | 10 | 10 | 75 | \1,870 |
| M04-1214 | 12 x 14 | 18.5 | 21.0 | 224 | 9.5 | 10.0 | 10 | 10 | 105 | \1,920 |
| M04-1315 | 13 x 15 | 19.0 | 23.0 | 240 | 9.5 | 11.0 | 10 | 10 | 120 | \2,215 |
| M04-1417 | 14 x 17 | 21.0 | 25.5 | 252 | 11.0 | 12.0 | 10 | 10 | 135 | \2,215 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M04-0810 | 8 x 10 | 13.5 | 16.0 | 184 | 7.5 | 8.0 | 10 | 10 | 50 | \1,730 |
| M04-1012 | 10 x 12 | 16.0 | 18.5 | 192 | 8.5 | 9.0 | 10 | 10 | 70 | \1,805 |
| M04-1113 | 11 x 13 | 17.0 | 19.0 | 193 | 9.0 | 9.5 | 10 | 10 | 75 | \1,870 |
| M04-1214 | 12 x 14 | 18.5 | 21.0 | 224 | 9.5 | 10.0 | 10 | 10 | 105 | \1,920 |
| M04-1315 | 13 x 15 | 19.0 | 23.0 | 240 | 9.5 | 11.0 | 10 | 10 | 120 | \2,215 |
| M04-1417 | 14 x 17 | 21.0 | 25.5 | 252 | 11.0 | 12.0 | 10 | 10 | 135 | \2,215 |
