The degree of corner in the pattern part is 45 deg, so you can avoid the surrounding obstacle and work.
The glasses part is like a ring, so it's difficult to come off from bolt nut .
To receive the load for surrounding Hitoshi, it's strong and a total can be put certainly.
The glasses part is also capable of work at the place 12 corners tend to save and fit to bolt nut , and where are small relatively.

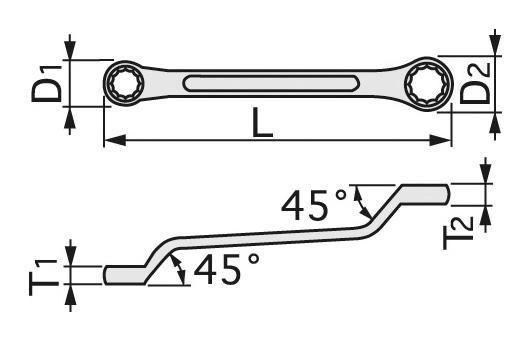

| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| MB45-1214 | 3/8 x 7/16 | 15.0 | 17.5 | 176 | 6.5 | 7.5 | 10 | 10 | 65 | \2,140 |
| MB45-1618 | 1/2 x 9/16 | 19.5 | 21.5 | 209 | 8.0 | 8.5 | 10 | 10 | 115 | \2,315 |
| MB45-2022 | 5/8 x 11/16 | 23.5 | 25.5 | 248 | 9.0 | 10.0 | 10 | 10 | 160 | \2,640 |
| MB45-2425 | 3/4 x 25/32 | 28.0 | 28.5 | 286 | 12.0 | 12.5 | 10 | 10 | 280 | \3,335 |
| MB45-2628 | 13/16 x 7/8 | 30.0 | 32.0 | 336 | 13.0 | 14.0 | 10 | 10 | 380 | \3,760 |
| MB45-3032 | 15/16 x 1 | 34.0 | 36.0 | 381 | 15.0 | 16.0 | 10 | 6 | 490 | \4,880 |
| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| MB45-1214 | 3/8 x 7/16 | 15.0 | 17.5 | 176 | 6.5 | 7.5 | 10 | 10 | 65 | \2,140 |
| MB45-1618 | 1/2 x 9/16 | 19.5 | 21.5 | 209 | 8.0 | 8.5 | 10 | 10 | 115 | \2,315 |
| MB45-2022 | 5/8 x 11/16 | 23.5 | 25.5 | 248 | 9.0 | 10.0 | 10 | 10 | 160 | \2,640 |
| MB45-2425 | 3/4 x 25/32 | 28.0 | 28.5 | 286 | 12.0 | 12.5 | 10 | 10 | 280 | \3,335 |
| MB45-2628 | 13/16 x 7/8 | 30.0 | 32.0 | 336 | 13.0 | 14.0 | 10 | 10 | 380 | \3,760 |
| MB45-3032 | 15/16 x 1 | 34.0 | 36.0 | 381 | 15.0 | 16.0 | 10 | 6 | 490 | \4,880 |
| Models | Across Flat (inch) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| MB45-1214 | 3/8 x 7/16 | 15.0 | 17.5 | 176 | 6.5 | 7.5 | 10 | 10 | 65 | \2,140 |
| MB45-1618 | 1/2 x 9/16 | 19.5 | 21.5 | 209 | 8.0 | 8.5 | 10 | 10 | 115 | \2,315 |
| MB45-2022 | 5/8 x 11/16 | 23.5 | 25.5 | 248 | 9.0 | 10.0 | 10 | 10 | 160 | \2,640 |
| MB45-2425 | 3/4 x 25/32 | 28.0 | 28.5 | 286 | 12.0 | 12.5 | 10 | 10 | 280 | \3,335 |
| MB45-2628 | 13/16 x 7/8 | 30.0 | 32.0 | 336 | 13.0 | 14.0 | 10 | 10 | 380 | \3,760 |
| MB45-3032 | 15/16 x 1 | 34.0 | 36.0 | 381 | 15.0 | 16.0 | 10 | 6 | 490 | \4,880 |
