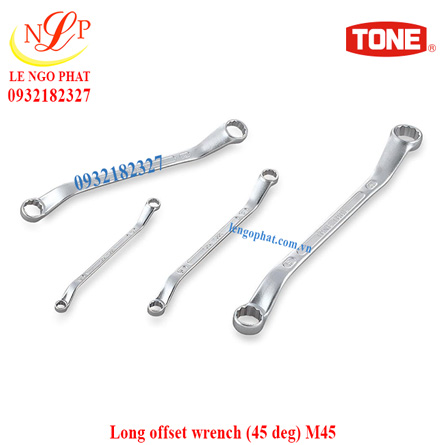

Long offset wrench (45 deg) M45

Long offset wrench (45 deg)



The degree of corner in the pattern part is 45 deg, so you can avoid the surrounding obstacle and work.
The glasses part is like a ring, so it's difficult to come off from bolt nut .
To receive the load for surrounding Hitoshi, it's strong and a total can be put certainly.
The glasses part is also capable of work at the place 12 corners tend to save and fit to bolt nut , and where are small relatively.

Giá: 0932182327

Mã sản phẩm: M45

Model: M45

Kết nối facebook Kết nối Youtube Kết nối Google + Kết nối Twitter Kết nối Intagrams Kết nối Pinterest

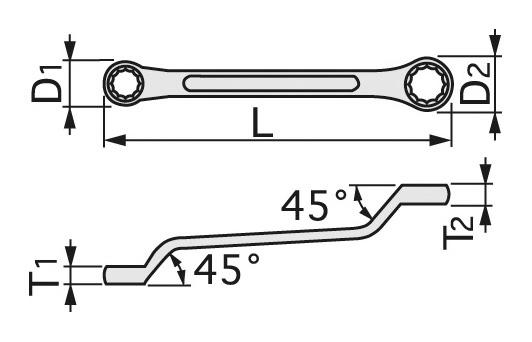

Models Across Flat (mm) Dimensions (mm)D1 Dimensions (mm)D2 Dimensions (mm)L Dimensions (mm)T1 Dimensions (mm)T2 Qty./Carton Packing quantity (store ornament) weight (g) MSRP in JP
M45-5.507 5.5 x 7 10.0 11.5 151 5.0 5.5 10 10 30 \1,445
M45-0809 8 x 9 13.0 14.5 182 6.0 6.5 10 10 50 \1,470
M45-0810 8 x 10 13.0 15.5 184 6.0 6.5 10 10 50 \1,470
M45-1012 10 x 12 15.5 18.0 194 6.5 7.5 10 10 65 \1,520
M45-1013 10 x 13 15.5 19.0 196 6.5 8.0 10 10 70 \1,520
M45-1113 11 x 13 16.5 19.0 198 7.0 8.0 10 10 70 \1,580
M45-1214 12 x 14 18.0 21.0 220 7.5 8.5 10 10 100 \1,580
M45-1317 13 x 17 19.0 25.5 247 8.0 9.5 10 10 140 \1,870
M45-1415 14 x 15 21.0 23.0 247 8.5 9.5 10 10 150 \1,870
M45-1417 14 x 17 21.0 25.5 248 8.5 9.5 10 10 140 \1,870
M45-1618 16 x 18 24.5 27.0 270 9.5 10.5 10 10 180 \2,215
M45-1719 17 x 19 25.5 28.0 280 9.5 10.5 10 10 200 \2,215
M45-1721 17 x 21 25.5 30.0 298 9.5 11.5 10 10 270 \2,550
M45-1921 19 x 21 28.0 30.0 307 10.5 11.5 10 10 240 \2,640
M45-1922 19 x 22 28.0 32.0 307 10.5 12.0 10 10 270 \2,640
M45-1924 19 x 24 28.0 35.0 324 10.5 13.5 10 10 320 \2,840
M45-2123 21 x 23 30.0 33.0 320 11.5 13.0 10 10 350 \2,940
M45-2126 21 x 26 30.0 36.5 340 11.5 14.0 10 10 405 \3,285
M45-2224 22 x 24 32.0 35.0 324 12.0 13.5 10 10 330 \3,285
M45-2326 23 x 26 33.0 36.5 348 13.0 14.0 10 10 400 \3,560
M45-2427 24 x 27 35.0 37.5 350 13.5 15.0 10 10 440 \3,710
M45-2430 24 x 30 35.0 43.0 389 13.5 18.5 6 6 560 \4,455
M45-2629 26 x 29 36.5 42.0 384 14.0 18.5 6 6 560 \4,730
M45-2632 26 x 32 37.5 47.0 398 14.0 19.0 6 6 590 \5,750
M45-2730 27 x 30 37.5 43.0 391 16.5 18.5 6 6 595 \5,975
M45-2732 27 x 32 39.0 47.0 413 16.5 19.0 6 6 700 \5,975
M45-2932 29 x 32 42.0 47.0 415 18.5 19.0 6 6 710 \6,780
M45-3032 30 x 32 43.0 47.0 420 18.5 19.0 6 6 750 \7,205
M45-3235 32 x 35 47.0 52.0 430 19.0 20.0 6 6 890 \8,035
M45-3236 32 x 36 47.0 53.0 430 19.0 20.0 6 6 910 \8,035
M45-3541 35 x 41 52.0 60.0 456 20.0 22.0 1 6 1100 \12,270
Models Across Flat (mm) Dimensions (mm)D1 Dimensions (mm)D2 Dimensions (mm)L Dimensions (mm)T1 Dimensions (mm)T2 Qty./Carton Packing quantity (store ornament) weight (g) MSRP in JP
M45-5.507 5.5 x 7 10.0 11.5 151 5.0 5.5 10 10 30 \1,445
M45-0809 8 x 9 13.0 14.5 182 6.0 6.5 10 10 50 \1,470
M45-0810 8 x 10 13.0 15.5 184 6.0 6.5 10 10 50 \1,470
M45-1012 10 x 12 15.5 18.0 194 6.5 7.5 10 10 65 \1,520
M45-1013 10 x 13 15.5 19.0 196 6.5 8.0 10 10 70 \1,520
M45-1113 11 x 13 16.5 19.0 198 7.0 8.0 10 10 70 \1,580
M45-1214 12 x 14 18.0 21.0 220 7.5 8.5 10 10 100 \1,580
M45-1317 13 x 17 19.0 25.5 247 8.0 9.5 10 10 140 \1,870
M45-1415 14 x 15 21.0 23.0 247 8.5 9.5 10 10 150 \1,870
M45-1417 14 x 17 21.0 25.5 248 8.5 9.5 10 10 140 \1,870
M45-1618 16 x 18 24.5 27.0 270 9.5 10.5 10 10 180 \2,215
M45-1719 17 x 19 25.5 28.0 280 9.5 10.5 10 10 200 \2,215
M45-1721 17 x 21 25.5 30.0 298 9.5 11.5 10 10 270 \2,550
M45-1921 19 x 21 28.0 30.0 307 10.5 11.5 10 10 240 \2,640
M45-1922 19 x 22 28.0 32.0 307 10.5 12.0 10 10 270 \2,640
M45-1924 19 x 24 28.0 35.0 324 10.5 13.5 10 10 320 \2,840
M45-2123 21 x 23 30.0 33.0 320 11.5 13.0 10 10 350 \2,940
M45-2126 21 x 26 30.0 36.5 340 11.5 14.0 10 10 405 \3,285
M45-2224 22 x 24 32.0 35.0 324 12.0 13.5 10 10 330 \3,285
M45-2326 23 x 26 33.0 36.5 348 13.0 14.0 10 10 400 \3,560
M45-2427 24 x 27 35.0 37.5 350 13.5 15.0 10 10 440 \3,710
M45-2430 24 x 30 35.0 43.0 389 13.5 18.5 6 6 560 \4,455
M45-2629 26 x 29 36.5 42.0 384 14.0 18.5 6 6 560 \4,730
M45-2632 26 x 32 37.5 47.0 398 14.0 19.0 6 6 590 \5,750
M45-2730 27 x 30 37.5 43.0 391 16.5 18.5 6 6 595 \5,975
M45-2732 27 x 32 39.0 47.0 413 16.5 19.0 6 6 700 \5,975
M45-2932 29 x 32 42.0 47.0 415 18.5 19.0 6 6 710 \6,780
M45-3032 30 x 32 43.0 47.0 420 18.5 19.0 6 6 750 \7,205
M45-3235 32 x 35 47.0 52.0 430 19.0 20.0 6 6 890 \8,035
M45-3236 32 x 36 47.0 53.0 430 19.0 20.0 6 6 910 \8,035
M45-3541 35 x 41 52.0 60.0 456 20.0 22.0 1 6 1100 \12,270
Models Across Flat (mm) Dimensions (mm)D1 Dimensions (mm)D2 Dimensions (mm)L Dimensions (mm)T1 Dimensions (mm)T2 Qty./Carton Packing quantity (store ornament) weight (g) MSRP in JP
M45-5.507 5.5 x 7 10.0 11.5 151 5.0 5.5 10 10 30 \1,445
M45-0809 8 x 9 13.0 14.5 182 6.0 6.5 10 10 50 \1,470
M45-0810 8 x 10 13.0 15.5 184 6.0 6.5 10 10 50 \1,470
M45-1012 10 x 12 15.5 18.0 194 6.5 7.5 10 10 65 \1,520
M45-1013 10 x 13 15.5 19.0 196 6.5 8.0 10 10 70 \1,520
M45-1113 11 x 13 16.5 19.0 198 7.0 8.0 10 10 70 \1,580
M45-1214 12 x 14 18.0 21.0 220 7.5 8.5 10 10 100 \1,580
M45-1317 13 x 17 19.0 25.5 247 8.0 9.5 10 10 140 \1,870
M45-1415 14 x 15 21.0 23.0 247 8.5 9.5 10 10 150 \1,870
M45-1417 14 x 17 21.0 25.5 248 8.5 9.5 10 10 140 \1,870
M45-1618 16 x 18 24.5 27.0 270 9.5 10.5 10 10 180 \2,215
M45-1719 17 x 19 25.5 28.0 280 9.5 10.5 10 10 200 \2,215
M45-1721 17 x 21 25.5 30.0 298 9.5 11.5 10 10 270 \2,550
M45-1921 19 x 21 28.0 30.0 307 10.5 11.5 10 10 240 \2,640
M45-1922 19 x 22 28.0 32.0 307 10.5 12.0 10 10 270 \2,640
M45-1924 19 x 24 28.0 35.0 324 10.5 13.5 10 10 320 \2,840
M45-2123 21 x 23 30.0 33.0 320 11.5 13.0 10 10 350 \2,940
M45-2126 21 x 26 30.0 36.5 340 11.5 14.0 10 10 405 \3,285
M45-2224 22 x 24 32.0 35.0 324 12.0 13.5 10 10 330 \3,285
M45-2326 23 x 26 33.0 36.5 348 13.0 14.0 10 10 400 \3,560
M45-2427 24 x 27 35.0 37.5 350 13.5 15.0 10 10 440 \3,710
M45-2430 24 x 30 35.0 43.0 389 13.5 18.5 6 6 560 \4,455
M45-2629 26 x 29 36.5 42.0 384 14.0 18.5 6 6 560 \4,730
M45-2632 26 x 32 37.5 47.0 398 14.0 19.0 6 6 590 \5,750
M45-2730 27 x 30 37.5 43.0 391 16.5 18.5 6 6 595 \5,975
M45-2732 27 x 32 39.0 47.0 413 16.5 19.0 6 6 700 \5,975
M45-2932 29 x 32 42.0 47.0 415 18.5 19.0 6 6 710 \6,780
M45-3032 30 x 32 43.0 47.0 420 18.5 19.0 6 6 750 \7,205
M45-3235 32 x 35 47.0 52.0 430 19.0 20.0 6 6 890 \8,035
M45-3236 32 x 36 47.0 53.0 430 19.0 20.0 6 6 910 \8,035
M45-3541 35 x 41 52.0 60.0 456 20.0 22.0 1 6 1100 \12,270
