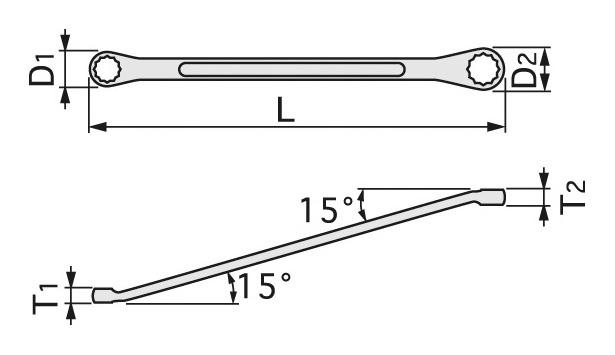

Long offset wrench (15 deg) M15
Long offset wrench (15 deg)
The degree of corner in the pattern part is small at 15 deg, so it's most suitable for work in the part where height limit is received.
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M15-1012 | 10 x 12 | 15.5 | 18.0 | 192 | 6.5 | 7.5 | 10 | 10 | 60 | \1,545 |
| M15-1113 | 11 x 13 | 16.5 | 19.0 | 193 | 7.0 | 8.0 | 10 | 10 | 60 | \1,695 |
| M15-1214 | 12 x 14 | 18.0 | 21.0 | 224 | 7.5 | 8.5 | 10 | 10 | 95 | \1,695 |
| M15-1417 | 14 x 17 | 21.0 | 25.5 | 253 | 8.5 | 9.5 | 10 | 10 | 140 | \1,970 |
| M15-1921 | 19 x 21 | 28.0 | 30.0 | 328 | 10.5 | 11.5 | 10 | 10 | 220 | \2,775 |
| M15-2224 | 22 x 24 | 32.0 | 35.0 | 334 | 12.0 | 13.5 | 10 | 10 | 290 | \3,560 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M15-1012 | 10 x 12 | 15.5 | 18.0 | 192 | 6.5 | 7.5 | 10 | 10 | 60 | \1,545 |
| M15-1113 | 11 x 13 | 16.5 | 19.0 | 193 | 7.0 | 8.0 | 10 | 10 | 60 | \1,695 |
| M15-1214 | 12 x 14 | 18.0 | 21.0 | 224 | 7.5 | 8.5 | 10 | 10 | 95 | \1,695 |
| M15-1417 | 14 x 17 | 21.0 | 25.5 | 253 | 8.5 | 9.5 | 10 | 10 | 140 | \1,970 |
| M15-1921 | 19 x 21 | 28.0 | 30.0 | 328 | 10.5 | 11.5 | 10 | 10 | 220 | \2,775 |
| M15-2224 | 22 x 24 | 32.0 | 35.0 | 334 | 12.0 | 13.5 | 10 | 10 | 290 | \3,560 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M15-1012 | 10 x 12 | 15.5 | 18.0 | 192 | 6.5 | 7.5 | 10 | 10 | 60 | \1,545 |
| M15-1113 | 11 x 13 | 16.5 | 19.0 | 193 | 7.0 | 8.0 | 10 | 10 | 60 | \1,695 |
| M15-1214 | 12 x 14 | 18.0 | 21.0 | 224 | 7.5 | 8.5 | 10 | 10 | 95 | \1,695 |
| M15-1417 | 14 x 17 | 21.0 | 25.5 | 253 | 8.5 | 9.5 | 10 | 10 | 140 | \1,970 |
| M15-1921 | 19 x 21 | 28.0 | 30.0 | 328 | 10.5 | 11.5 | 10 | 10 | 220 | \2,775 |
| M15-2224 | 22 x 24 | 32.0 | 35.0 | 334 | 12.0 | 13.5 | 10 | 10 | 290 | \3,560 |
