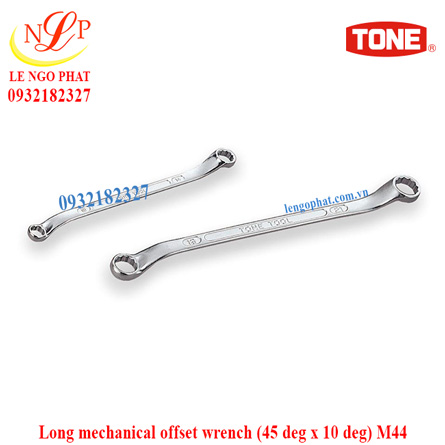

Long mechanical offset wrench (45 deg x 10 deg) M44
Long mechanical offset wrench (45 deg x 10 deg)
You can avoid the surrounding obstacle and work because the height of the pattern part is lower than conventional long offset wrench (45 deg).
Because the glasses part is like a ring, so it's difficult to come off from bolt nut , and the load is received for surrounding Hitoshi.
It's strong and a total can be put certainly.

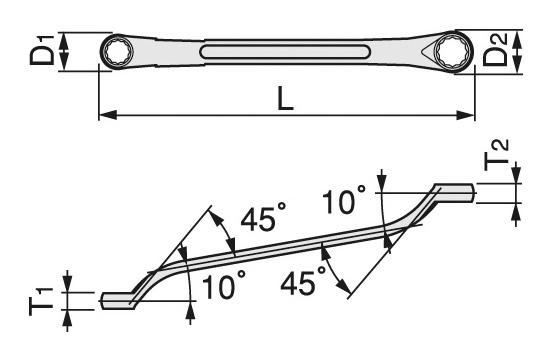

| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M44-5.507 | 5.5 x 7 | 10.0 | 11.5 | 151 | 5.0 | 5.5 | 10 | 10 | 30 | \1,445 |
| M44-0810 | 8 x 10 | 13.0 | 15.5 | 184 | 6.0 | 6.5 | 10 | 10 | 50 | \1,470 |
| M44-1012 | 10 x 12 | 15.5 | 18.0 | 194 | 6.5 | 7.5 | 10 | 10 | 70 | \1,520 |
| M44-1013 | 10 x 13 | 15.5 | 19.0 | 196 | 6.5 | 8.0 | 10 | 10 | 65 | \1,520 |
| M44-1113 | 11 x 13 | 16.5 | 19.0 | 198 | 7.0 | 8.0 | 10 | 10 | 70 | \1,580 |
| M44-1214 | 12 x 14 | 18.0 | 21.0 | 219 | 7.5 | 8.5 | 10 | 10 | 110 | \1,580 |
| M44-1317 | 13 x 17 | 19.0 | 25.0 | 247 | 8.0 | 9.5 | 10 | 10 | 130 | \1,870 |
| M44-1417 | 14 x 17 | 21.0 | 25.0 | 248 | 8.5 | 9.5 | 10 | 10 | 140 | \1,870 |
| M44-1719 | 17 x 19 | 25.0 | 27.5 | 279 | 9.5 | 10.5 | 10 | 10 | 195 | \2,215 |
| M44-1921 | 19 x 21 | 27.5 | 29.5 | 306 | 10.5 | 11.5 | 10 | 10 | 260 | \2,640 |
| M44-2224 | 22 x 24 | 31.5 | 34.5 | 323 | 12.0 | 13.5 | 10 | 10 | 310 | \3,285 |
| M44-2427 | 24 x 27 | 34.5 | 37.5 | 350 | 13.5 | 15.0 | 10 | 10 | 420 | \3,710 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M44-5.507 | 5.5 x 7 | 10.0 | 11.5 | 151 | 5.0 | 5.5 | 10 | 10 | 30 | \1,445 |
| M44-0810 | 8 x 10 | 13.0 | 15.5 | 184 | 6.0 | 6.5 | 10 | 10 | 50 | \1,470 |
| M44-1012 | 10 x 12 | 15.5 | 18.0 | 194 | 6.5 | 7.5 | 10 | 10 | 70 | \1,520 |
| M44-1013 | 10 x 13 | 15.5 | 19.0 | 196 | 6.5 | 8.0 | 10 | 10 | 65 | \1,520 |
| M44-1113 | 11 x 13 | 16.5 | 19.0 | 198 | 7.0 | 8.0 | 10 | 10 | 70 | \1,580 |
| M44-1214 | 12 x 14 | 18.0 | 21.0 | 219 | 7.5 | 8.5 | 10 | 10 | 110 | \1,580 |
| M44-1317 | 13 x 17 | 19.0 | 25.0 | 247 | 8.0 | 9.5 | 10 | 10 | 130 | \1,870 |
| M44-1417 | 14 x 17 | 21.0 | 25.0 | 248 | 8.5 | 9.5 | 10 | 10 | 140 | \1,870 |
| M44-1719 | 17 x 19 | 25.0 | 27.5 | 279 | 9.5 | 10.5 | 10 | 10 | 195 | \2,215 |
| M44-1921 | 19 x 21 | 27.5 | 29.5 | 306 | 10.5 | 11.5 | 10 | 10 | 260 | \2,640 |
| M44-2224 | 22 x 24 | 31.5 | 34.5 | 323 | 12.0 | 13.5 | 10 | 10 | 310 | \3,285 |
| M44-2427 | 24 x 27 | 34.5 | 37.5 | 350 | 13.5 | 15.0 | 10 | 10 | 420 | \3,710 |
| Models | Across Flat (mm) | Dimensions (mm)D1 | Dimensions (mm)D2 | Dimensions (mm)L | Dimensions (mm)T1 | Dimensions (mm)T2 | Qty./Carton | Packing quantity (store ornament) | weight (g) | MSRP in JP |
|---|---|---|---|---|---|---|---|---|---|---|
| M44-5.507 | 5.5 x 7 | 10.0 | 11.5 | 151 | 5.0 | 5.5 | 10 | 10 | 30 | \1,445 |
| M44-0810 | 8 x 10 | 13.0 | 15.5 | 184 | 6.0 | 6.5 | 10 | 10 | 50 | \1,470 |
| M44-1012 | 10 x 12 | 15.5 | 18.0 | 194 | 6.5 | 7.5 | 10 | 10 | 70 | \1,520 |
| M44-1013 | 10 x 13 | 15.5 | 19.0 | 196 | 6.5 | 8.0 | 10 | 10 | 65 | \1,520 |
| M44-1113 | 11 x 13 | 16.5 | 19.0 | 198 | 7.0 | 8.0 | 10 | 10 | 70 | \1,580 |
| M44-1214 | 12 x 14 | 18.0 | 21.0 | 219 | 7.5 | 8.5 | 10 | 10 | 110 | \1,580 |
| M44-1317 | 13 x 17 | 19.0 | 25.0 | 247 | 8.0 | 9.5 | 10 | 10 | 130 | \1,870 |
| M44-1417 | 14 x 17 | 21.0 | 25.0 | 248 | 8.5 | 9.5 | 10 | 10 | 140 | \1,870 |
| M44-1719 | 17 x 19 | 25.0 | 27.5 | 279 | 9.5 | 10.5 | 10 | 10 | 195 | \2,215 |
| M44-1921 | 19 x 21 | 27.5 | 29.5 | 306 | 10.5 | 11.5 | 10 | 10 | 260 | \2,640 |
| M44-2224 | 22 x 24 | 31.5 | 34.5 | 323 | 12.0 | 13.5 | 10 | 10 | 310 | \3,285 |
| M44-2427 | 24 x 27 | 34.5 | 37.5 | 350 | 13.5 | 15.0 | 10 | 10 | 420 | \3,710 |
