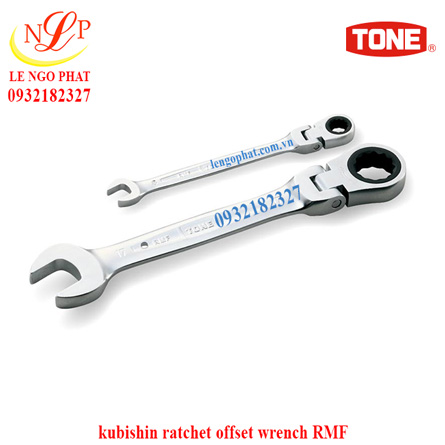

kubishin ratchet offset wrench RMF

kubishin ratchet offset wrench

Standard The kubishin ratchet type.

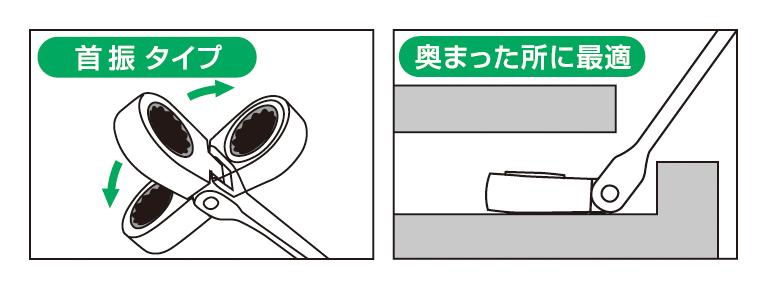

It's most suitable for the operational part where no kind of tools have reached so far because a head can be adjusted to the optional angle.
The soft curved line design matched with the hand which became easier to use in a facelift.
Thin type ratchet head.
With safety rope attaching hole(The size of RMF - more than 14)

Giá: 0932182327

Mã sản phẩm: RMF

Model: RMF

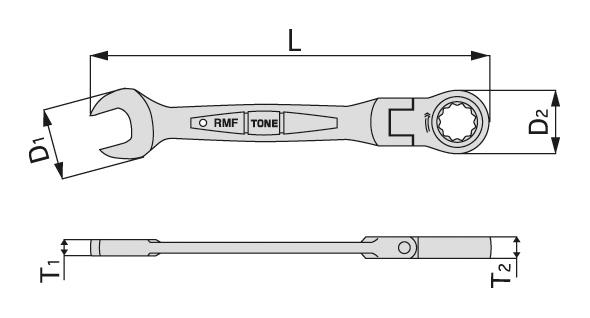

Models	Across Flat (mm)	Dimensions (mm)D1	Dimensions (mm)D2	Dimensions (mm)L	Dimensions (mm)T1	Dimensions (mm)T2	Qty./Carton	Packing quantity (store ornament)	weight (g)	MSRP in JP
RMF-07	7	16.2	16.7	127	4.3	6.5	10	10	36	\2,680
RMF-08	8	16.2	16.7	127	4.3	6.5	10	10	35	\2,765
RMF-10	10	20.3	20.0	136	5.0	7.3	10	10	55	\2,875
RMF-11	11	22.5	21.8	141	5.4	7.7	10	10	65	\2,940
RMF-12	12	24.3	23.0	148	5.8	8.2	10	10	75	\2,990
RMF-13	13	26.8	25.2	154	6.1	8.6	10	10	90	\3,125
RMF-14	14	28.7	26.8	160	6.4	9.0	10	10	110	\3,260
RMF-15	15	30.5	28.3	169	6.9	9.4	10	10	125	\3,560
RMF-16	16	32.9	29.8	179	7.2	9.9	10	10	150	\3,735
RMF-17	17	34.5	31.8	190	7.6	10.3	10	10	170	\3,910
RMF-18	18	37.0	32.8	203	8.0	10.7	10	10	195	\4,505
RMF-19	19	39.2	33.9	215	8.6	11.2	10	10	220	\4,530
RMF-21	21	46.0	40.0	274	9.0	13.0	10	10	400	\4,765
RMF-22	22	46.0	40.0	274	9.0	13.0	10	10	390	\4,955
RMF-24	24	52.2	46.0	296	10.0	14.5	10	10	540	\5,450

Models	Across Flat (mm)	Dimensions (mm)D1	Dimensions (mm)D2	Dimensions (mm)L	Dimensions (mm)T1	Dimensions (mm)T2	Qty./Carton	Packing quantity (store ornament)	weight (g)	MSRP in JP
RMF-07	7	16.2	16.7	127	4.3	6.5	10	10	36	\2,680
RMF-08	8	16.2	16.7	127	4.3	6.5	10	10	35	\2,765
RMF-10	10	20.3	20.0	136	5.0	7.3	10	10	55	\2,875
RMF-11	11	22.5	21.8	141	5.4	7.7	10	10	65	\2,940
RMF-12	12	24.3	23.0	148	5.8	8.2	10	10	75	\2,990
RMF-13	13	26.8	25.2	154	6.1	8.6	10	10	90	\3,125
RMF-14	14	28.7	26.8	160	6.4	9.0	10	10	110	\3,260
RMF-15	15	30.5	28.3	169	6.9	9.4	10	10	125	\3,560
RMF-16	16	32.9	29.8	179	7.2	9.9	10	10	150	\3,735
RMF-17	17	34.5	31.8	190	7.6	10.3	10	10	170	\3,910
RMF-18	18	37.0	32.8	203	8.0	10.7	10	10	195	\4,505
RMF-19	19	39.2	33.9	215	8.6	11.2	10	10	220	\4,530
RMF-21	21	46.0	40.0	274	9.0	13.0	10	10	400	\4,765
RMF-22	22	46.0	40.0	274	9.0	13.0	10	10	390	\4,955
RMF-24	24	52.2	46.0	296	10.0	14.5	10	10	540	\5,450

Models	Across Flat (mm)	Dimensions (mm)D1	Dimensions (mm)D2	Dimensions (mm)L	Dimensions (mm)T1	Dimensions (mm)T2	Qty./Carton	Packing quantity (store ornament)	weight (g)	MSRP in JP
RMF-07	7	16.2	16.7	127	4.3	6.5	10	10	36	\2,680
RMF-08	8	16.2	16.7	127	4.3	6.5	10	10	35	\2,765
RMF-10	10	20.3	20.0	136	5.0	7.3	10	10	55	\2,875
RMF-11	11	22.5	21.8	141	5.4	7.7	10	10	65	\2,940
RMF-12	12	24.3	23.0	148	5.8	8.2	10	10	75	\2,990
RMF-13	13	26.8	25.2	154	6.1	8.6	10	10	90	\3,125
RMF-14	14	28.7	26.8	160	6.4	9.0	10	10	110	\3,260
RMF-15	15	30.5	28.3	169	6.9	9.4	10	10	125	\3,560
RMF-16	16	32.9	29.8	179	7.2	9.9	10	10	150	\3,735
RMF-17	17	34.5	31.8	190	7.6	10.3	10	10	170	\3,910
RMF-18	18	37.0	32.8	203	8.0	10.7	10	10	195	\4,505
RMF-19	19	39.2	33.9	215	8.6	11.2	10	10	220	\4,530
RMF-21	21	46.0	40.0	274	9.0	13.0	10	10	400	\4,765
RMF-22	22	46.0	40.0	274	9.0	13.0	10	10	390	\4,955
RMF-24	24	52.2	46.0	296	10.0	14.5	10	10	540	\5,450
