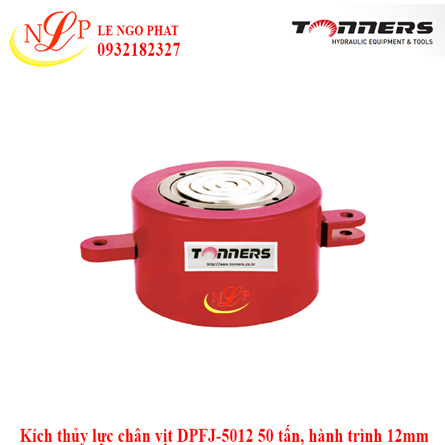

Kích thủy lực chân vịt DPFJ-5012 50 tấn, hành trình 12mm

it is jack fitting using propeller and by connecting with small type cylinder even in small places, it is possible for smooth work

Model: DPFJ-5012
Xuất sứ: Tonners - Korea
Tải trọng làm việc: 50 tấn
Hành trình nâng: 12mm
Chiều cao ban đầu 85mm
Áp suất tối đa: 700 bar
Trọng lượng: 10 kg

Giá: 0932182327

Mã sản phẩm: DPFJ-5012

Model: DPFJ-5012

Model No.	Capacity (ton)	Stroke (mm)	Retracted Height	Cylinder Effective Area (cm²)	Max Pressure (kg/cm²)	Weight (kg)
DPFJ-5012	50	12	85	70.8	700	10
DPFJ-10015	100	15	110	143.1	700	25
DPFJ-20020	200	20	130	298.6	700	45
DPFJ-10010	100	10	65	50.2	2000	8
DPFJ-20010	200	10	63	103.8	2000	21

Model No.	Capacity (ton)	Stroke (mm)	Retracted Height	Cylinder Effective Area (cm²)	Max Pressure (kg/cm²)	Weight (kg)
DPFJ-5012	50	12	85	70.8	700	10
DPFJ-10015	100	15	110	143.1	700	25
DPFJ-20020	200	20	130	298.6	700	45
DPFJ-10010	100	10	65	50.2	2000	8
DPFJ-20010	200	10	63	103.8	2000	21

Model No.	Capacity (ton)	Stroke (mm)	Retracted Height	Cylinder Effective Area (cm²)	Max Pressure (kg/cm²)	Weight (kg)
DPFJ-5012	50	12	85	70.8	700	10
DPFJ-10015	100	15	110	143.1	700	25
DPFJ-20020	200	20	130	298.6	700	45
DPFJ-10010	100	10	65	50.2	2000	8
DPFJ-20010	200	10	63	103.8	2000	21
